Anti ultraviolet (anti-aging) the surface of the product is sprayed with plastic, which can absorb the ultraviolet rays in the sunlight, reduce the oxidation rate of the material itself, and make the product have better anti-aging performance and improve its service life.
Features of Windproof Net Products
1. Anti ultraviolet (anti-aging) the surface of the product is sprayed with plastic, which can absorb the ultraviolet rays in the sunlight, reduce the oxidation rate of the material itself, and make the product have better anti-aging performance and improve its service life. At the same time, the ultraviolet transmittance is low, which avoids the damage of the material in the sunlight.
2. Flame retardant because it is a metal plate, it has good flame retardant, which can meet the requirements of fire protection and safety production.
3. Impact resistant products have high strength and can withstand the impact of hail (strong wind). In the impact strength test, a steel ball with a mass of 1kg is used at the middle and upper part of the sample, which falls freely at a height of 1.5m from the peak of the wave, and the product has no fracture and penetrating holes.
4. The surface of anti-static products is treated by electrostatic spraying, which can oxidize and decompose the organic dirt attached to the product surface after being exposed to sunlight. In addition, its super hydrophilicity makes the dust easy to be washed by rain, which has a self-cleaning effect and no maintenance cost.
Product Description
| Product Name | perforated fence | |
| Material | Stainless sheet, black steel, aluminum, galvanized steel, copper/brass, etc. | |
| Hole Shape | Round hole,Diamond hole, flower hole, hexagon hole , sector hole, etc. | |
| Hole Size(mm) | 1.5mm,3mm,5mm,10mm or customized. | |
| Mesh Size | ≥0.2mm | |
| Surface Treatment | Powder coating, PVDF Coating, galvanization, anodizing, etc. | |
| Applications | - Construction - Filter - Architectural cladding and decoration - Security Fencing - Balustrades - Walkways and staircases - Facade cladding | - Chair/Desk - Screens - Window - Ramps - Gantries - Filtration - Cages for poultry |
| Packing Methods | - Packing in rolls.- Packing in wooden/steel pallet. | |
| Quality Control | ISO Certicificate; SGS Certicificate | |
| After-sale Service | Product test report, online follow up. | |
| These are only some part of our products.If you want other specification,please feel free to contact us.Our factory can customizethe specification as your requirements. | ||

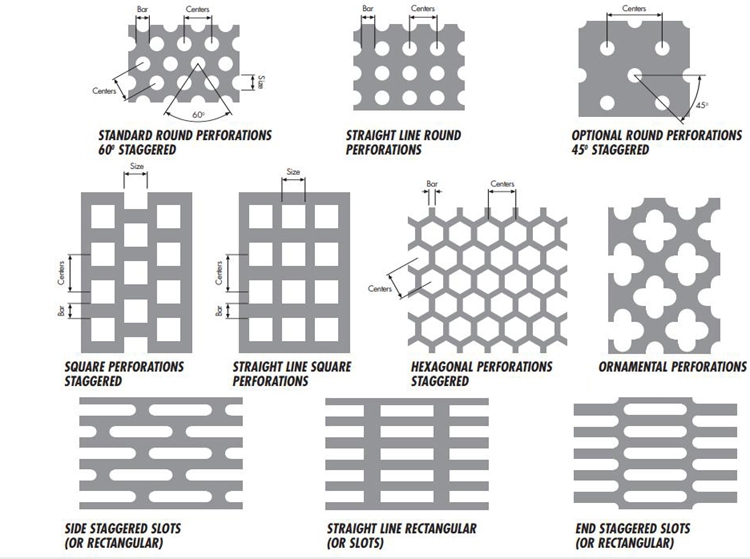

Types of Hole
---The hole type of perforated metal mesh has diamond hole, hexagonal hole, round hole, etc.

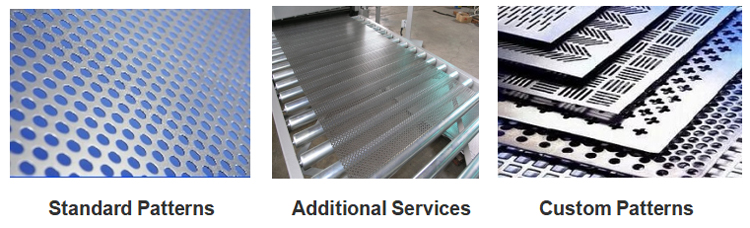

| Perforated metal manufactured to your specifications | |
| Standard Patterns | Chances are one of our stock tools will meet your perforated metal pattern requirement. We have hundreds of patterns to choose from, and new patterns are added on a regular basis. |
| Custom Patterns | Innovat has house design, engineering and tool building capabilities. If one of our stock perforated patterns does not meet your needs, please contact us. We can build custom tooling and then perforate metal to your exact requirements. |
| Additional Services | Notching, forming and painting are just a few of the secondary processes we can provide. We also offer custom packaging, toll-processing, stocking programs and prototyping just to name a few. |

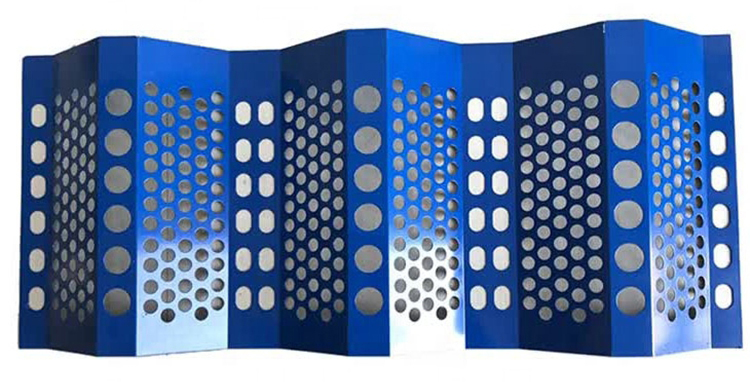

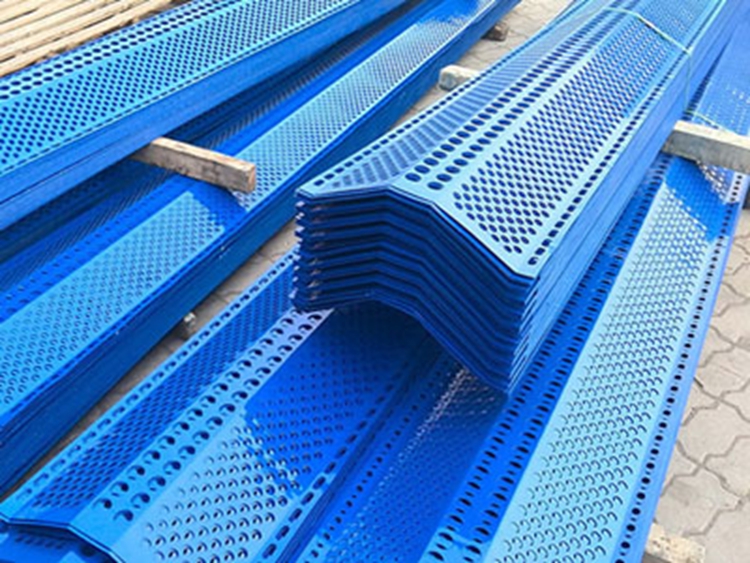

Types PF Plate
1、single peaks wind dust net；2、twin peak wind dust net ；3、hree peak wind dust net

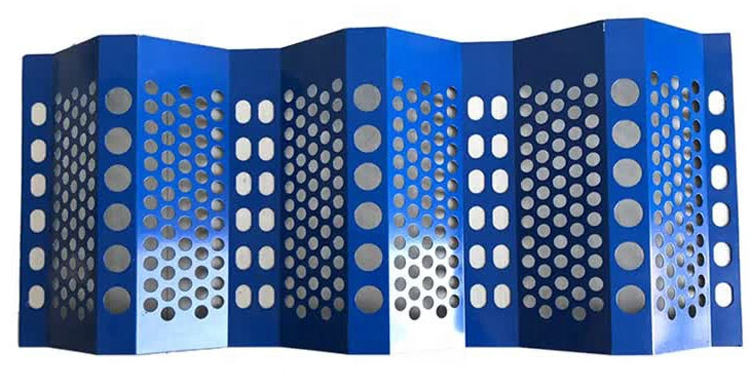

1) Single Peak Wind Dust Net:
Forming 450mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.0mm. Length: 0-6m. We can produce according to customer's

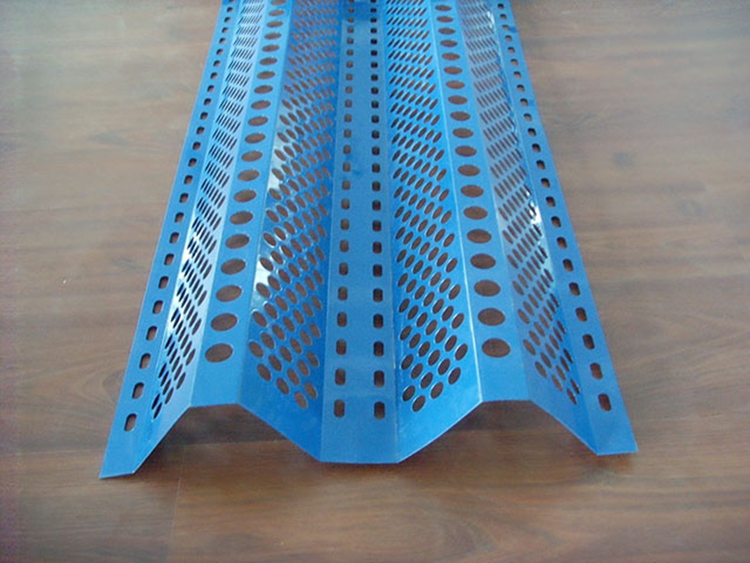

2) Twins Peaks Wind Dust Net:
Forming 900mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.0mm. Length: 0-6m. We can produce according to customer's requirements.
3) Three peaks wind dust net:
Forming 810mm—950mm in width, peak of high is 80mm, Plate thickness 0.5mm-1.0mm. Length: 0-6m. We can produce according to customer's requirements.
| Type | Forming width | Peak height | Length | Sheet thickness |
| Single-peak(monomer) | 250-500mm | 50-100mm | 0.5-4m | 0.5-1.5mm |
| Bimodal (two-body) | 400-600mm | 50-100mm | 0.5-10m | 0.5-1mm |
| Three-peak(triplets) | 810-910mm | 50-80mm | 0.5-10m | 0.5-1mm |

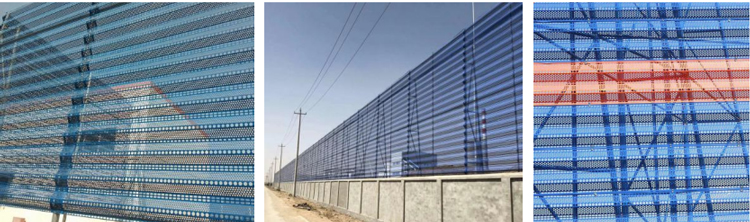

Application
Mainly used for wind and dust suppression in coal mines, coking plants, power plants and other enterprises' coal storage plants; Port, wharf coal storage plant and various material yard; Dust suppression of iron and steel, building materials, cement and other enterprises; Crop windproof, sand weather dust proof and other harsh environment; Coal storage yard of railway and highway coal gathering and transportation station, construction site, road dust, both sides of high speed highway, etc.
The dust suppression effect of single-layer windscreen and dust suppression wall can reach 65~85%, and that of double-layer windscreen and dust suppression wall can reach over 95%.
