Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.

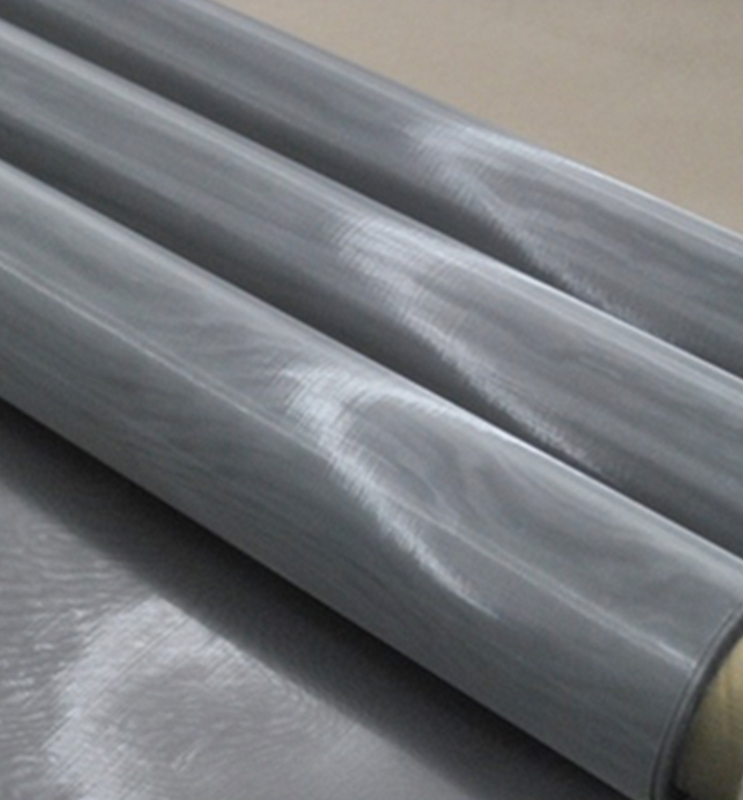

304 stainless steel mesh roll is made by stainless steel wire and then woven together to form a square opening or oblong opening.
Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.

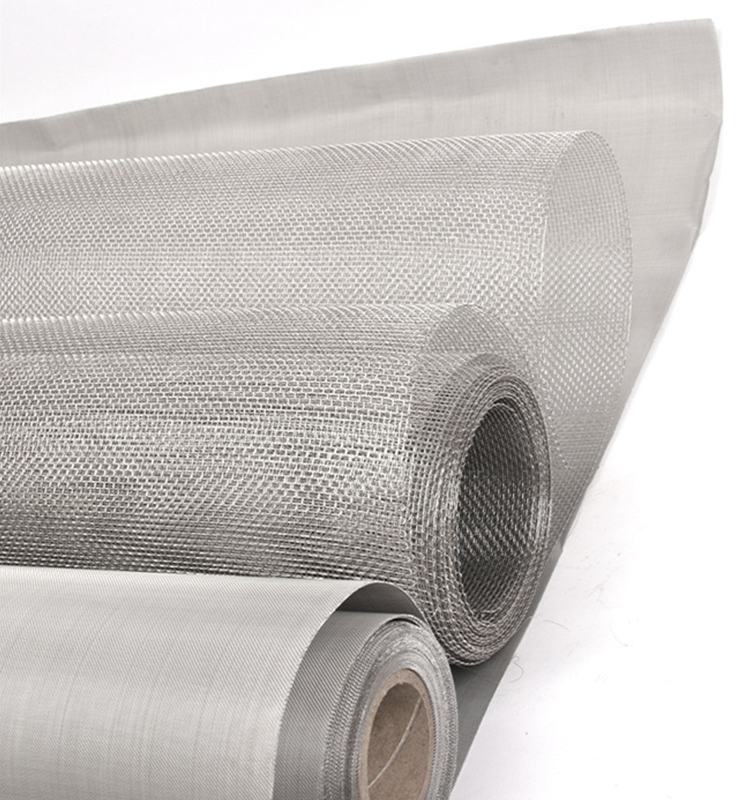

A 304 stainless steel mesh roll refers to a roll of wire mesh or screen made from 304-grade stainless steel.
Stainless Steel Grade 304: 304 stainless steel is one of the most common and widely used stainless steel alloys. It is known for its excellent corrosion resistance, durability, and versatility. It contains 18% chromium and 8% nickel, which provides its corrosion-resistant properties and makes it suitable for a wide range of applications.
Mesh Roll: A mesh roll is a continuous roll of wire mesh or screen. This roll can vary in width, length, and mesh size, depending on its intended use. Stainless steel mesh is often used in various industrial, commercial, and residential applications.
Applications: Stainless steel mesh made from grade 304 stainless steel is used in various applications, including but not limited to:
Filtration: It can be used in filtration systems to separate solids from liquids or gases.
Security: It's often used for security purposes, such as window screens and fencing.
Industrial: In industrial settings, it can be used for sieving, sorting, and separating materials.
Food Processing: Stainless steel mesh is used in the food industry for straining and sieving applications.
Mesh Size: The mesh size of the roll refers to the number of openings or holes per inch. For example, a "20 mesh" stainless steel roll would have 20 openings per linear inch. The choice of mesh size depends on the specific requirements of the application.
Customization: Stainless steel mesh rolls can often be customized in terms of width, length, and mesh size to meet specific project requirements.
Corrosion Resistance: One of the key benefits of using 304 stainless steel is its resistance to corrosion, which makes it suitable for outdoor and marine applications.
Maintenance: While 304 stainless steel is corrosion-resistant, it may require periodic cleaning and maintenance to maintain its appearance and performance.
Rich experience production team
Innovat was established in 2009 and it has 5000 m² production workshop, Hundreds of skilled technicians, Dozens of production and processing lines.We have many years of experience in the wire mesh field.
Professional quality inspection system
We have a strict quality inspection system and a professional testing team, we guarantee product quality Perfect service system 24 hours on-line service. Free samples if stocked. Quality problem we could accept the products return. Competitive price with superior higher quality products. Professional team to solve all your questions, we can offer 100 micron stainless steel mesh.

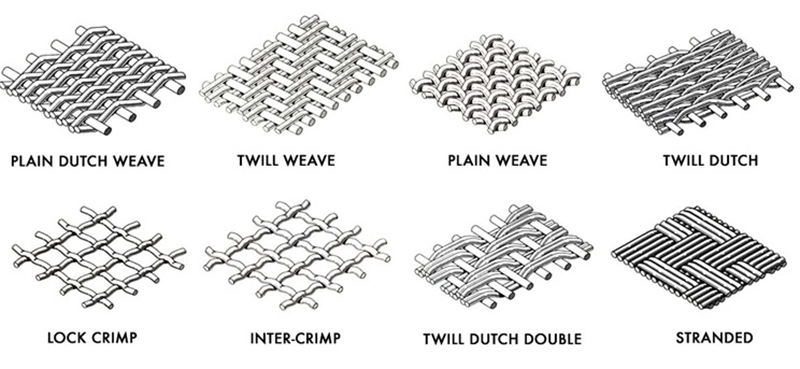

Stainless Mesh Weaving Methods
| Specification of Plain Weave | ||||||
| Mesh/Inch (mesh) | Wire Diameter (mm) | Aperture (mm) | Mesh/Inch (mesh) | Wire Diameter (mm) | Aperture (mm) | |
| 2 | 1.8 | 10.9 | 60 | 0.15 | 0.273 | |
| 3 | 1.6 | 6.866 | 70 | 0.14 | 0.223 | |
| 4 | 1.2 | 5.15 | 8o | 0.12 | 0.198 | |
| 5 | 0.91 | 4.17 | 9o | 0.11 | 0.172 | |
| 6 | o.8 | 3.433 | 100 | 0.10 | 0.154 | |
| 8 | 0.6 | 2.575 | 120 | 0.08 | 0.132 | |
| 10 | 0.55 | 1.990 | 140 | 0.07 | 0.111 | |
| 12 | 0.5o | 1.616 | 150 | 0.065 | 0.104 | |
| 14 | 0.45 | 1.362 | 160 | 0.065 | 0.094 | |
| 16 | 0.40 | 1.188 | 180 | 0.053 | 0.088 | |
| 18 | 0.35 | 1.060 | 200 | 0.053 | 0.074 | |
| 20 | 0.30 | 0.970 | 250 | 0.04 | 0.061 | |
| 26 | 0.28 | 0.696 | 300 | 0.035 | 0.049 | |
| 30 | 0.25 | 0.596 | 325 | 0.03 | 0.048 | |
| 40 | 0.21 | 0.425 | 350 | 0.03 | 0.042 | |
| 50 | 0.19 | 0.318 | 500 | 0.025 | 0.0385 | |
| Specification of Twill Weave | ||||||
| Mesh/Inch (mesh) | Wire Diameter (mm) | perture (mm) | Mesh/Inch (mesh) | Wire Diameter (mm) | perture (mm) | |
| 100 | 0.14 | 0.114 | 325 | 0.035 | 0.0443 | |
| 120 | 0.1 | 0.111 | 350 | 0.032 | 0.0405 | |
| 15o | 0.09 | 0.079 | 400 | 0.03 | 0.0335 | |
| 180 | 0.07 | 0.071 | 450 | 0.026 | 0.0304 | |
| 200 | 0.06 | 0.067 | 500 | 0.025 | 0.0258 | |
| 250 | 0.045 | 0.0566 | 600 | 0.018 | 0.0243 | |
| 300 | 0.04 | 0.0446 | 635 | 0.018 | 0.022 | |
| Specification of Plain Dutch Weave | |||
| Mesh /lnch | Absolute micron retention (um) | Weight (Kg/m2) | Cloth Thickness (mm) |
| 8ox300 | 32-36 | o.98 | 0.25 |
| 80x400 | 32-45 | 0.82 | 0.23 |
| 50x250 | 56-63 | 1 | 0.32 |
| 50x280 | 71-75 | 1 | 0.32 |
| 40x200 | 75-80 | 1.3 | 0.4 |
| 30x150 | 80-100 | 1 | 0.5 |
| 24x110 | 100-112 | 2.5 | 0.76 |
| 22x140 | 140-170 | 2.1 | 0.66 |
| 20x150 | 160-180 | 1.55 | 0.5 |
| 20x150 | 170-190 | 1.6 | 0.55 |
| 18×100 | 200-210 | 2.05 | 0.69 |
| 14x110 | 220-240 | 2.15 | 0.72 |
| 12x95 | 240-260 | 2.3 | 0.79 |
| 14x88 | 280-300 | 3.15 | 0.76 |
| 10x90 | 270-290 | 2.5 | 0.93 |
| 12x64 | 280-300 | 4.1 | 1.21 |

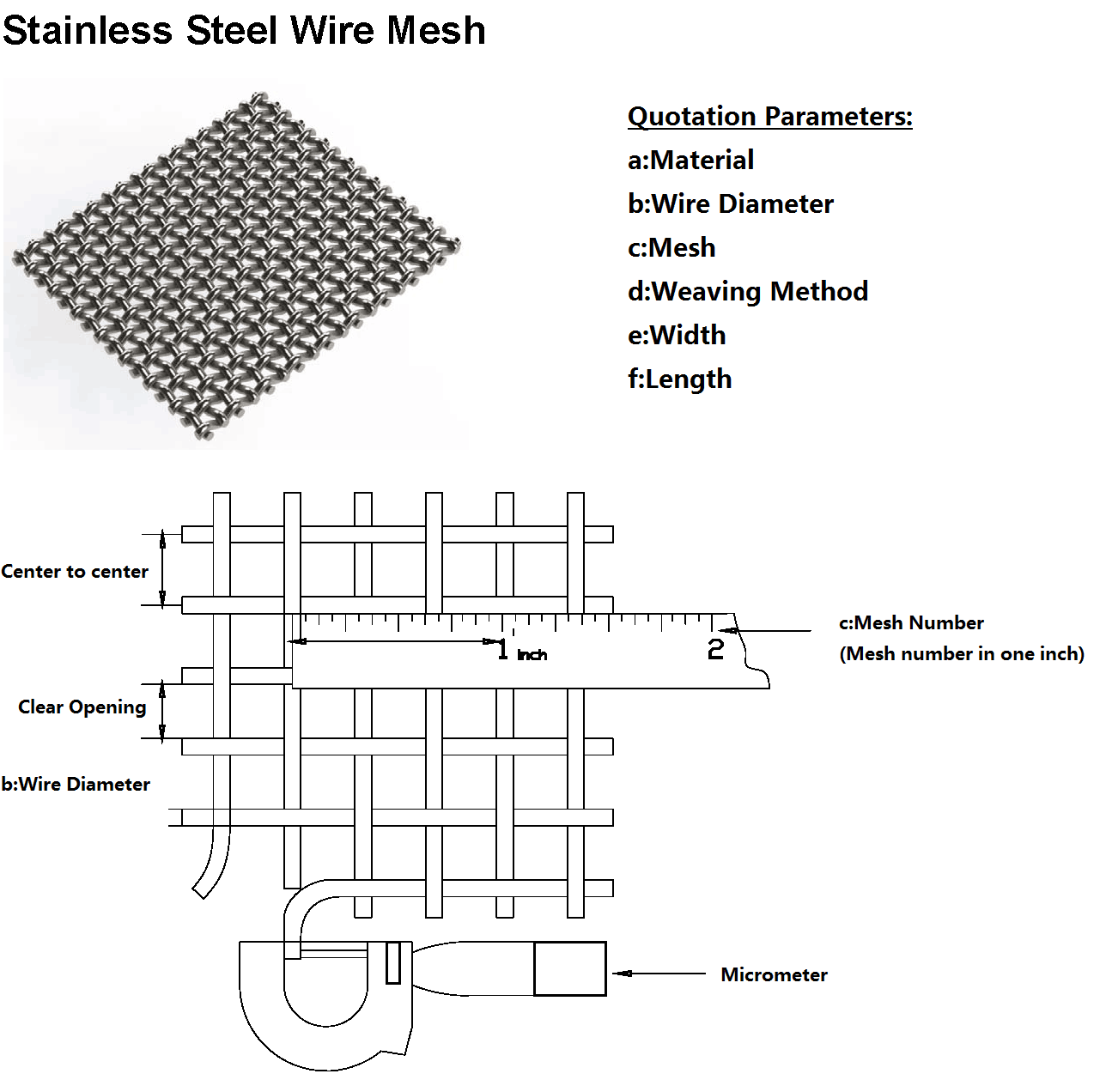

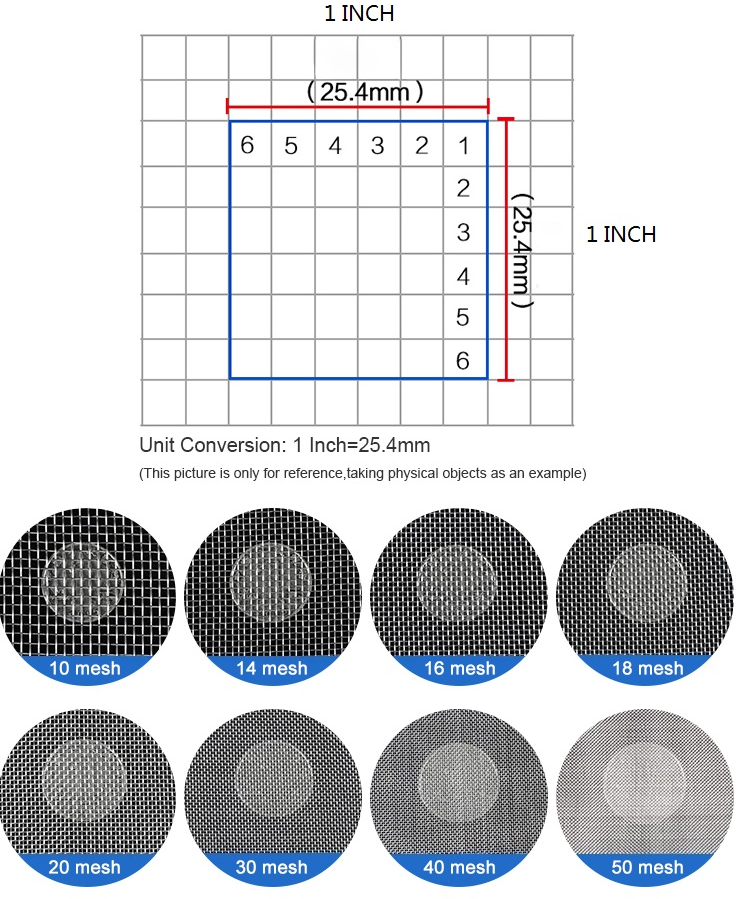

Mesh Number Account
Mesh Count is the number of meshes per inch of length.
According to the 6 mesh count as an example.

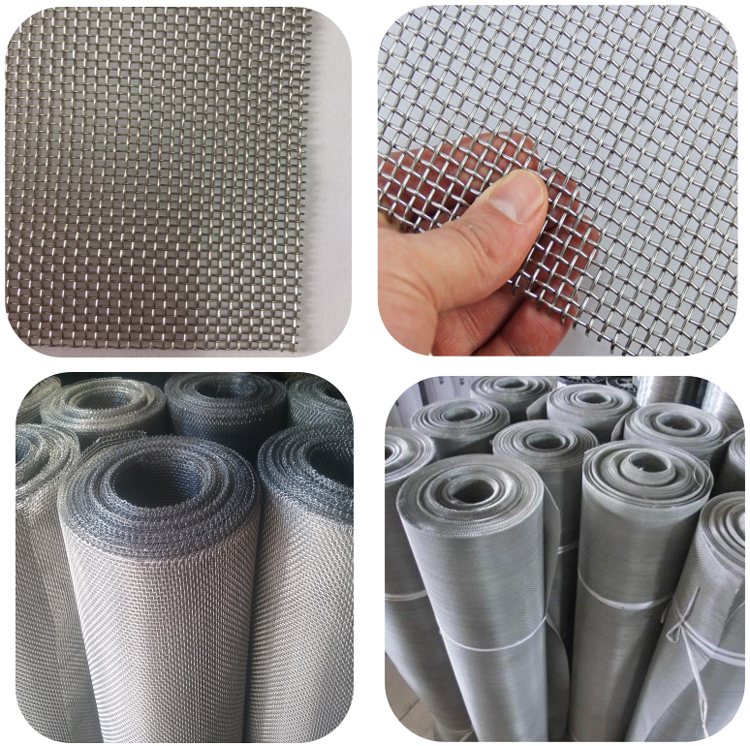

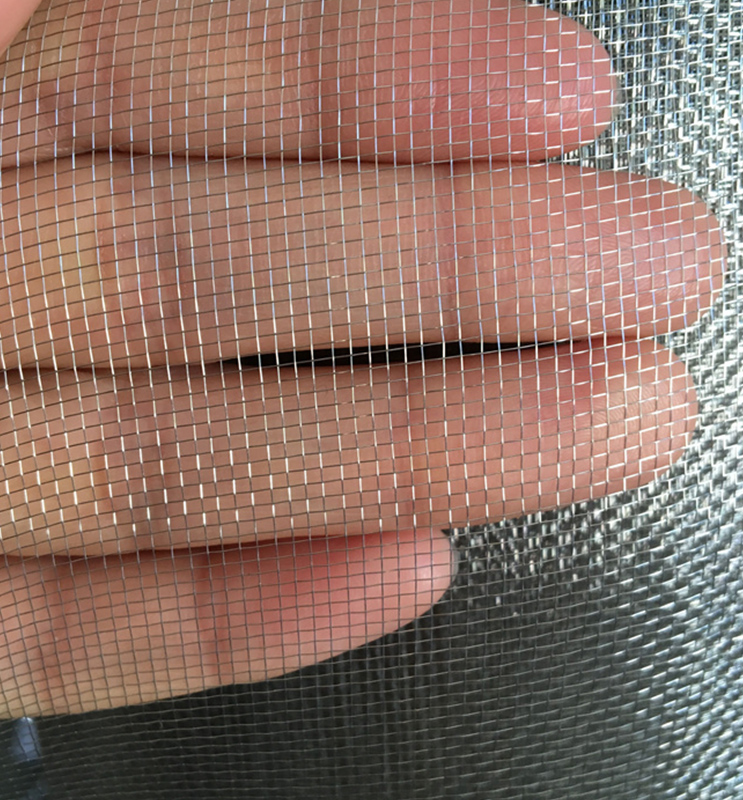

Product Display

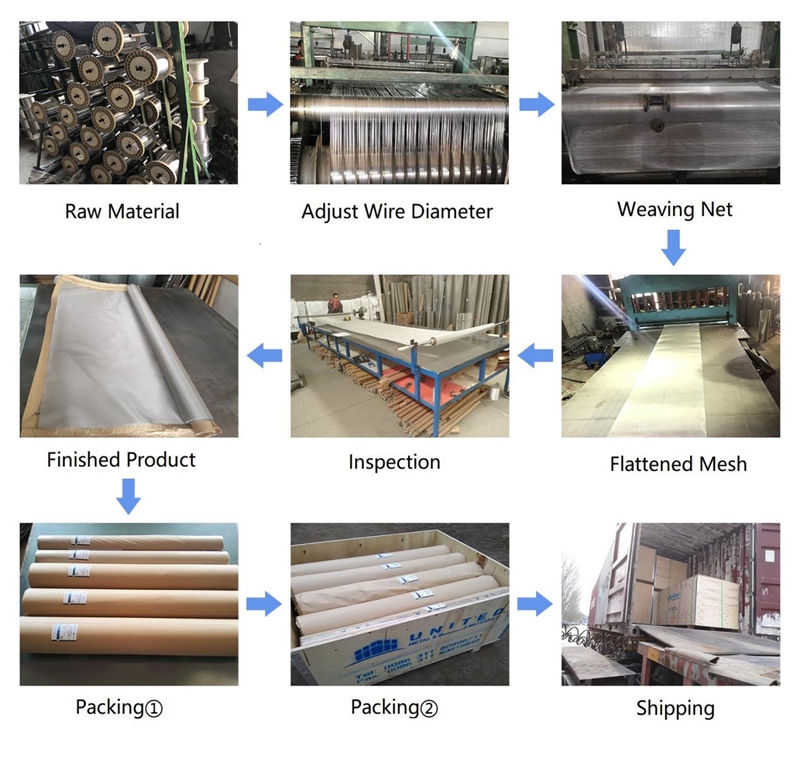

Stainless Mesh Production Process

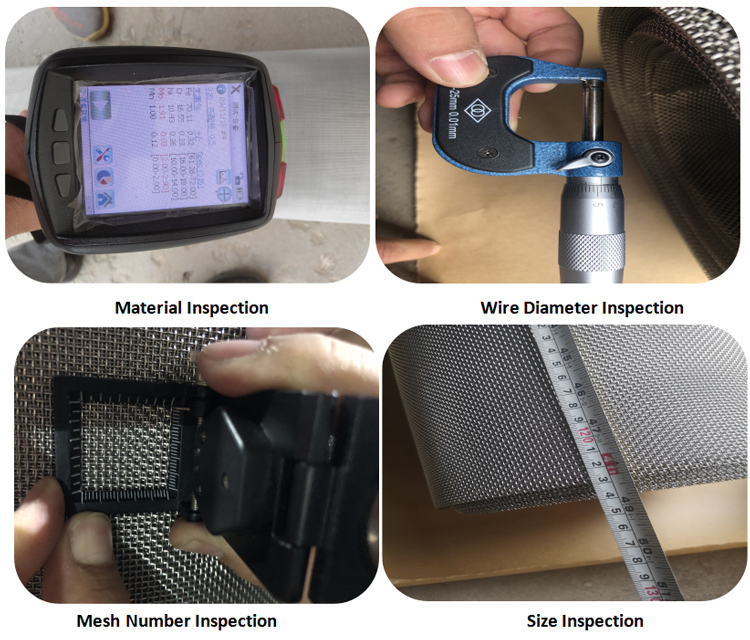

Stainless Mesh Quality Inspection
Stainless Mesh Quotation Parameters
\、

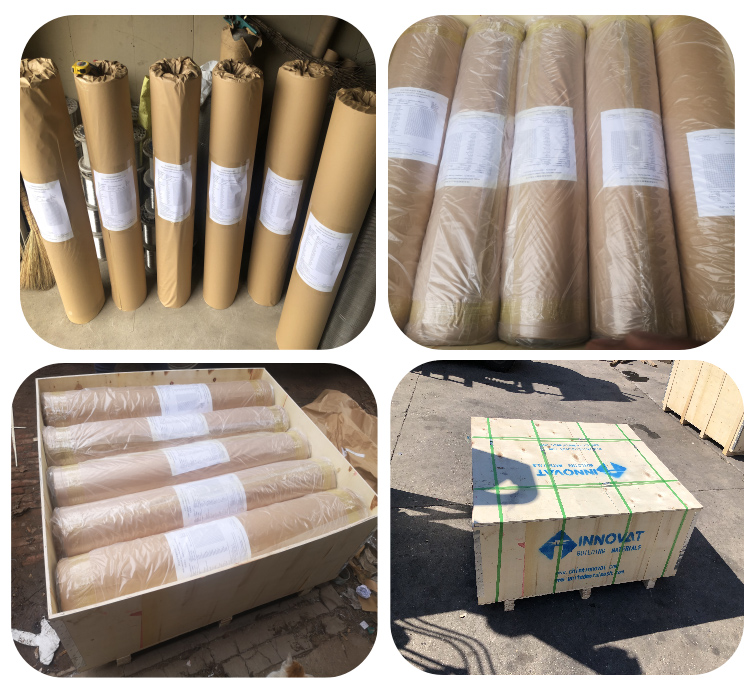

Packing and Shipping
