Rockfall barriers are made of high quality carbon steel or stainless steel, including steel wire rope net, steel ring net, tecco mesh, spider spiral rope mesh, chain link wire mesh and hexagonal wire mesh.
With galvanized, powder coated or PVC coated surface, they're corrosion and rust resistant.
Product Introduction
Rockfall Fence is made of high quality carbon steel or stainless steel, including steel wire rope net, steel ring net, tecco mesh, spider spiral rope mesh, chain link wire mesh and hexagonal wire mesh. With galvanized, powder coated or PVC coated surface, they're corrosion and rust resistant. The common rockfall barrier combination is steel wire rope net with chain link mesh, it can be used as active or passive rockfall barrier for slope or mountain protection to minimize the impact of natural disasters, such as landslide, debris flow and so on.
Product Features
● High tensile strength.
● Various types for choice.
● Corrosion and rust resistance.
● Anti harsh environment.
● Durable and long service life.
Product Installation
The system, when it arrives on site, includes all posts, base plates, netting, braking systems, anchor cables and ground anchors (for typical ground conditions). Ideally suited where space is limited these barrier fences are easy to install by qualified rope access contractors experienced in drilling and working on rock faces. After impact maintenance is a simple process of removing the collected debris and replacing the compression brakes and checking the serviceability of the remaining components. Rockfall barriers to be used to protect most road and rail infrastructure works as well as protection of buildings, pipelines, in mine works and where rockfall is identified as a hazard.
Product Specifications
● Material: high carbon steel, stainless steel.
● Surface treatment: galvanized, powder coated, PVC coated.
● Type: wire rope net, steel ring net, tecco mesh, spider spiral rope mesh, chain link wire mesh, hexagonal wire mesh.
● Common combination: wire rope net with chain link mesh, steel ring net with chain link mesh, steel ring net with hexagonal wire mesh.
● Package: can be packaged in bulk, plastic film, pallet and wooden case.

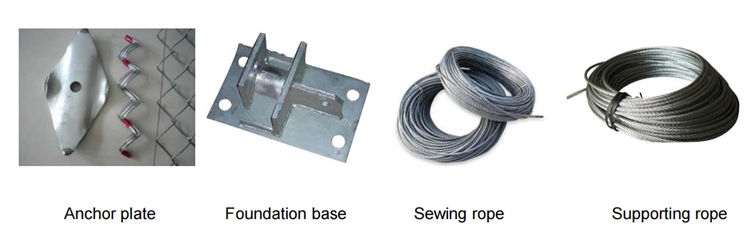

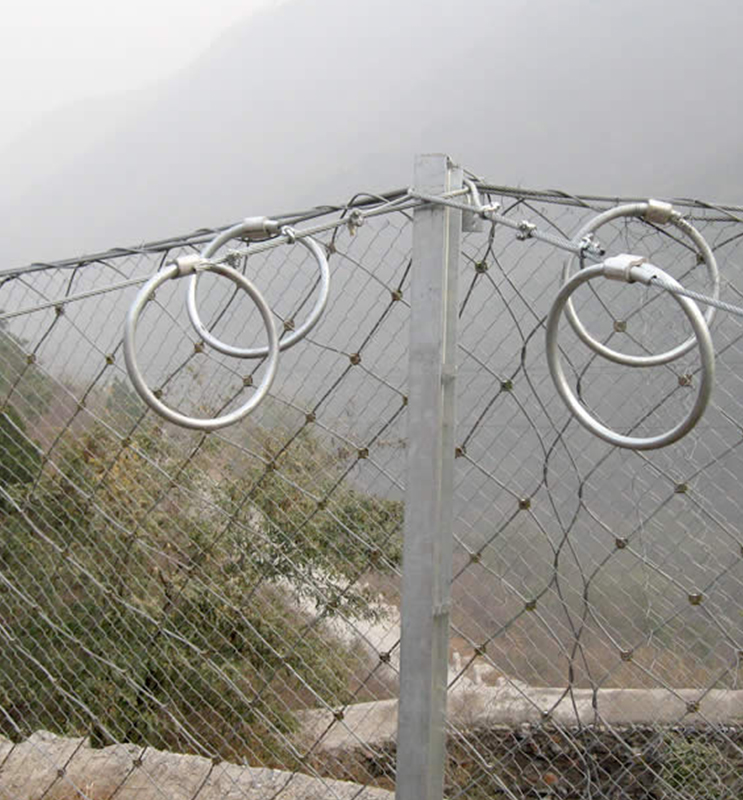

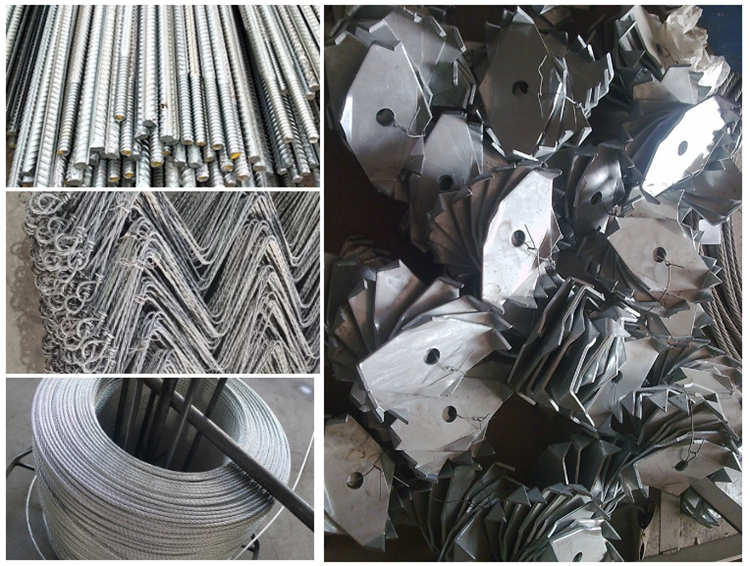

● Fitting: decompression ring, steel wire rope anchor, supporting rope, prestressed anchor, anchor plate, sewing rope, metal column, foundation base.

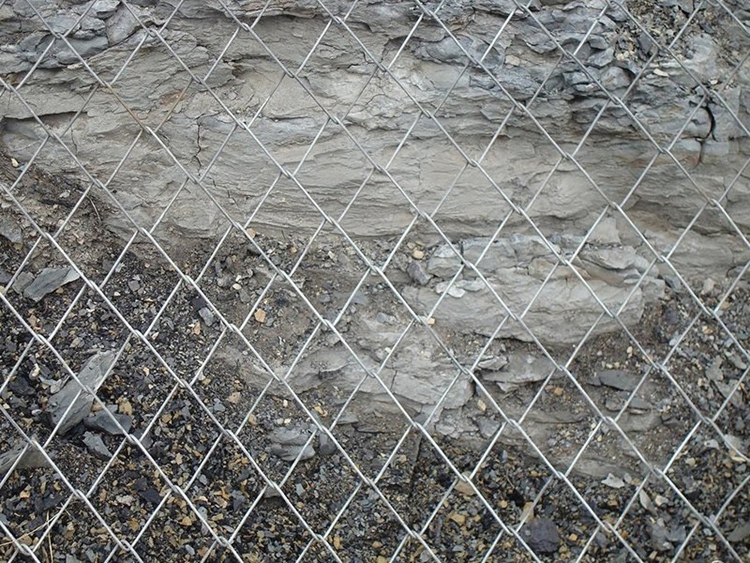

Chain Link Mesh
Chain link mesh is made of high quality carbon steel or stainless steel. With galvanized or PVC coated surface, it is corrosion and rust resistant. Chain link mesh features the perfect buffering performance, beautiful appearance, easy installation and long service life. With high strength, it is widely used individually or combined with steel wire rope net or steel wire ring net for slope protection or mountain Protection.
Advantage of Chain Link Mesh
● Perfect buffering performance.
● Corrosion and rust resistance.
● Beautiful appearance.
● Easy installation.
● Durable and long service life.
Specification of Chain Link Mesh
● Material: carbon steel, stainless steel.
● Surface treatment: galvanized, PVC coated.
● Wire diameter: 2 mm – 3 mm.
● Mesh hole size: 5 cm × 5 cm.
● Mesh roll size: 2 m × 10 m, 2 m × 20 m.

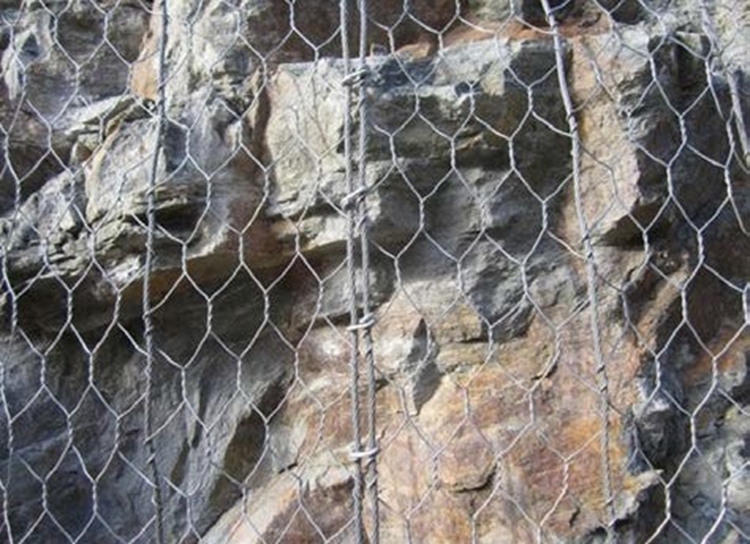

Hexagonal Wire Mesh
Chain link mesh is made of high quality carbon steel or stainless steel. With galvanized or PVC coated surface, it is corrosion and rust resistant. Chain link mesh features the perfect buffering performance, beautiful appearance, easy installation and long service life. With high strength, it is widely used individually or combined with steel wire rope net or steel wire ring net for slope protection or mountain
Advantage of Hexagonal Wire Mesh
● High tensile strength.
● Corrosion and rust resistance.
● Anti harsh environment.
● Environmental friendly.
● Easy to install and uninstall.
Specification of Hexagonal Wire Mesh
● Material: galvanized wire, galfan wire.
● Zinc coating weight: ≥ 260 g/m2.
● Wire diameter: 2.7 mm, 3.0 mm.
● Mesh size: 6 cm × 8 cm, 8 cm × 10 cm.
● Mesh roll width: 0.8 m, 1.0 m, 1.2 m, 1.5 m, etc.
● Mesh roll length: 50 m, 100 m.
● Packaging: the hexagonal wire mesh can be packed in bulk or be packed into pallet.
(bulk package is economical and pallet package can supply better protection)
Spider Spiral Rope Mesh
Advantage of Spider Spiral Rope Mesh
● High tensile strength.
● Rigid and solid to bear the collapsing force.
● Perfect adaptability.
● Corrosion resistance.
● Low maintenance cost.
● Environmental friendly.
Specification of Spider Spiral Rope Mesh
● Material: high tensile spring wire.
● Wire diameter: 3 mm.
● Strand: 3 strands.
● Mesh size: 250 mm – 300 mm inner circle diameter.
● Tensile strength: 1770 N/m2.
● Surface treatment: galvanized.
● Zinc coating weight: 150 g/m2.
● Mesh roll width: 3.5 m.
● Mesh roll length: 10 m, 30 m.
● Common combination: spider spiral rope mesh with chain link mesh.
● Fitting: prestressed anchor, anchor plate, boundary rope, sewing rope.

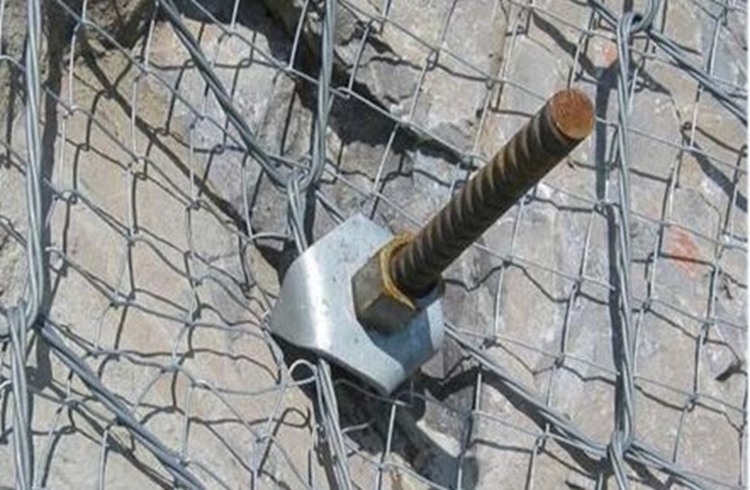

● Prestressed anchor: reinforcing steel bar anchor, and one side has threads of 25 mm or 28mm diameter.
● Anchor plate: claw type anchor plate with four bending sides, the size of anchor plate is larger than 320mm × 180 mm and the plate thickness is thicker than 10 mm.
Boundary rope: the diameter is thicker than the 12 mm, and the most common diameter is 14mm or 16mm; the length of single boundary rope is shorten than 40 m.

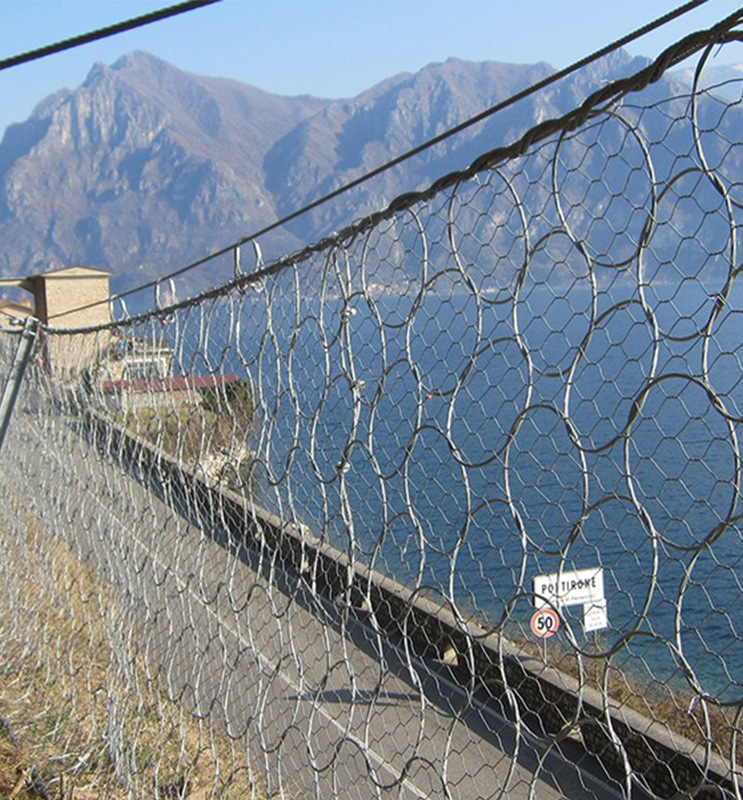

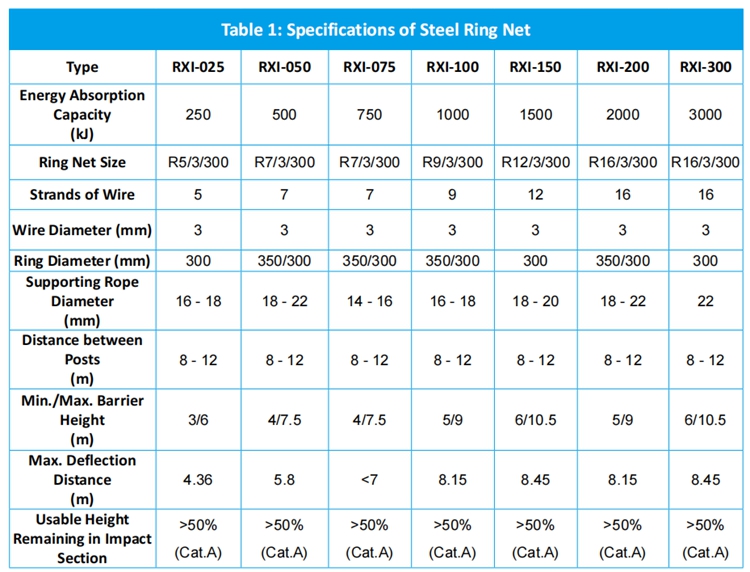

Steel Ring Net

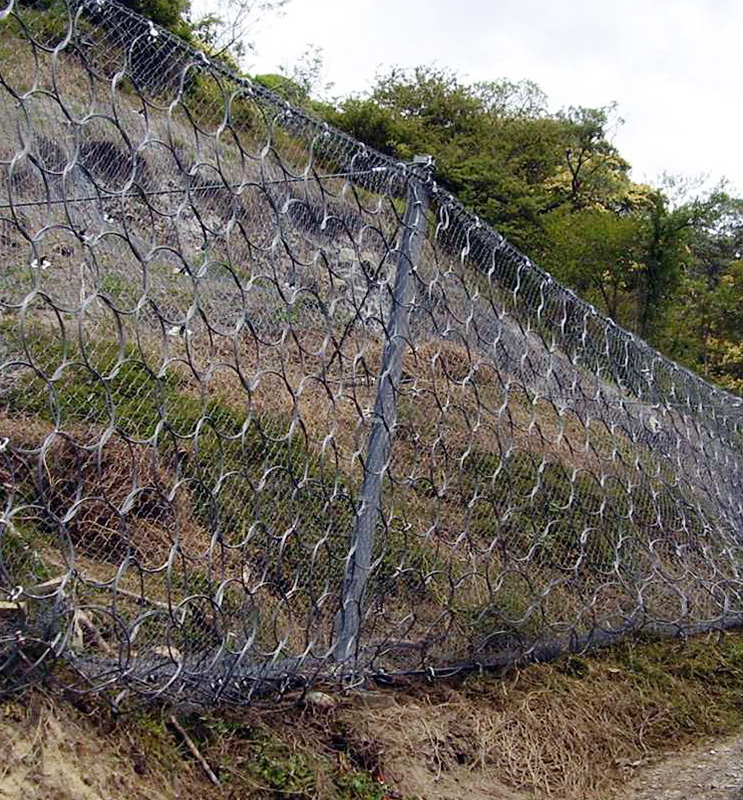

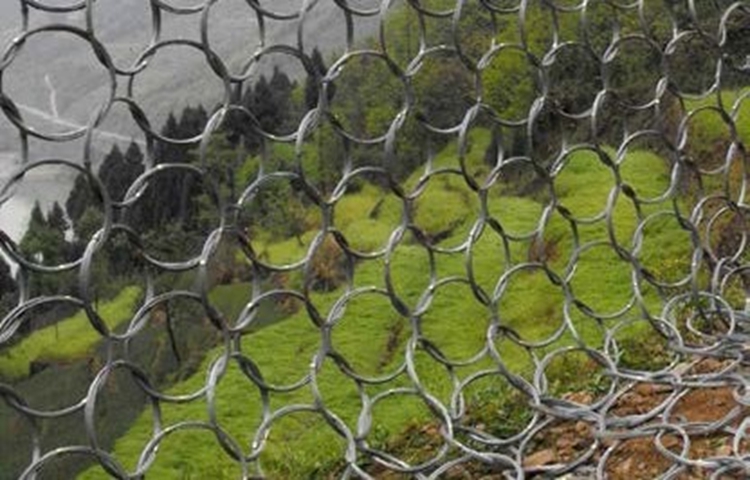

Steel ring net system, made of high tensile stee wires, is a kind of passive rockfall barriers. There are four contiguous ring and six contiguous ring types. The steel ring net is more flexible than the steel rope net. With high loading capacity and excellent buffering performance, passive rockfall barrier is often combined with chain link or hexagonal wire fence and installed at the bottom of mountains or slopes to block the stones then reduce the impact of the rockfalls and protect the safety and property of people.
Advantage of Steel Ring Mesh
● High loading capacity and flexibility.
● Excellent buffering performance.
● Corrosion and rust resistance.
● Quick and easy installation.
● Durable and long service life.
● Combined with chain link or hexagonal wire mesh fence.
Specification of Steel Ring Mesh
● Material: high carbon steel, stainless steel.
● Surface treatment: galvanized, powder coated.
● Main type: steel wire rope net, steel wire ring net.

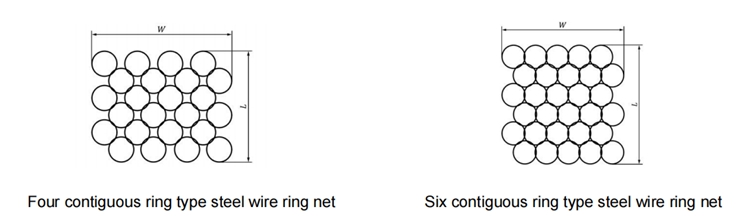

● Type of steel wire ring net: four contiguous ring type, six contiguous ring type.
● Fitting: decompression ring, supporting rope, steel column, foundation base.

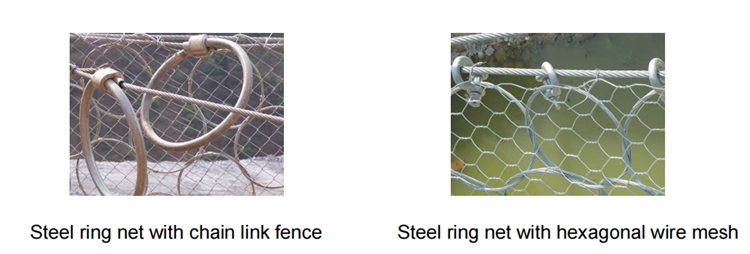

● Common combination: steel ring net with chain link fence, steel ring net with hexagonal wire mesh.

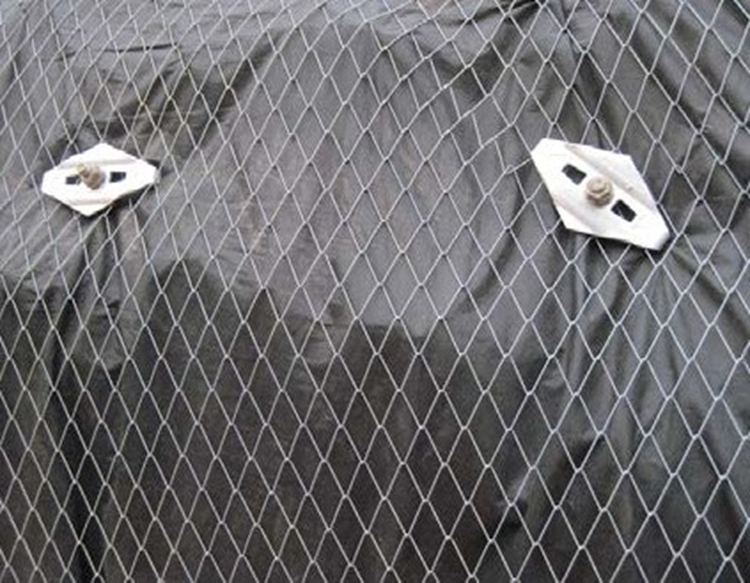

Tecco Mesh

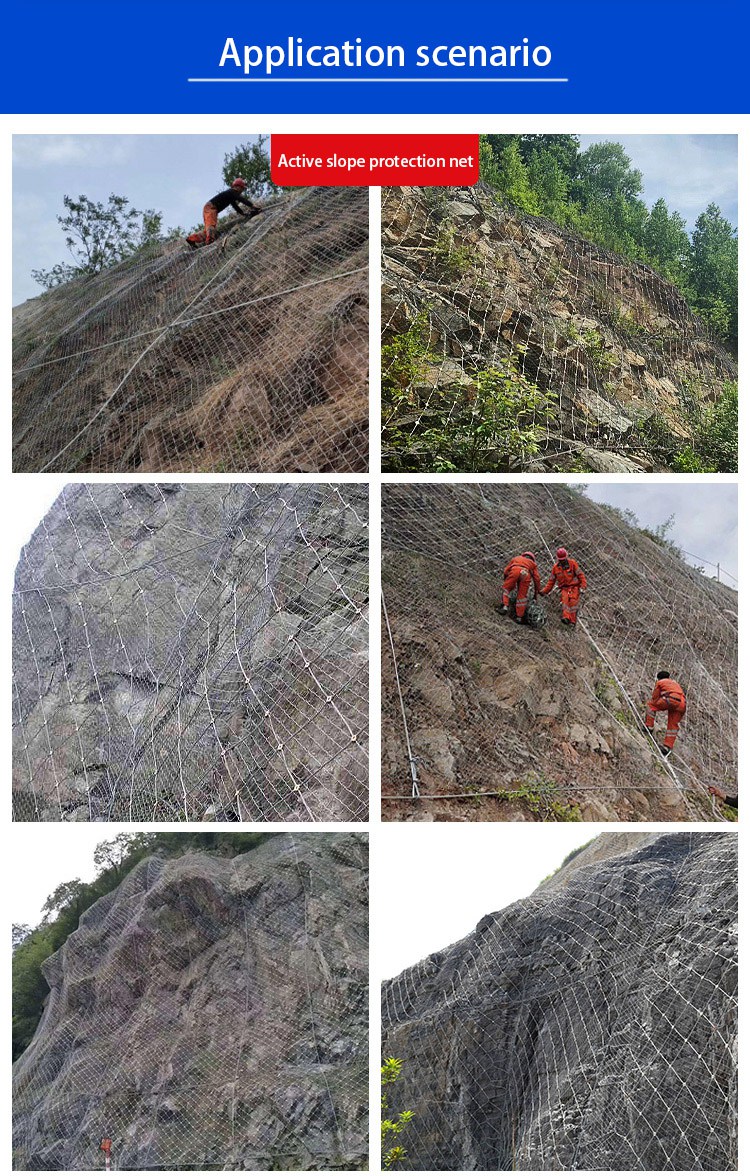

Tecco mesh is made of high carbon steel wire. Tecco mesh system is a kind of active rockfall barrier system, including tecco mesh, wire rope anchor, spike plate, boundary rope, sewing rope and steel clips. With the wire ropes and steel clips, the tecco mesh is fastened onto the mountain or slope surface tightly and firmly to block the large stones and reduce the damage of landslip or debris flow.
Advantage of Tecco Mesh
● High safety and tensile strength.
● Rhomboid mesh structure for stability.
● Corrosion and rust resistance.
● Environmental friendly for plant growth.
● Easy to install and transport.
● Durable and long service life.
Specification of Tecco Mesh
Material: high carbon steel wire.
Corrosion treatment: hot dipped galvanized, zinc-aluminum coated.
Zinc thickness: no less than 150 g/m2.
Wire diameter: 3 mm, 4 mm.
Mesh type: rhomboid hole
Mesh size: 65 mm inscribed circle diameter.
Tensile strength: minimum 1770 MPa.
Braking load of single wire: 12.5 kN.
Mesh roll width: 1 m – 3.5 m.
Mesh roll length: 10 m – 30 m.
Fitting: steel anchor, claw type spike plate, soil or rock nails, clips, sewing rope, boundary rope. (The steel anchor is made of deformed steel bar of 25 mm diameter)

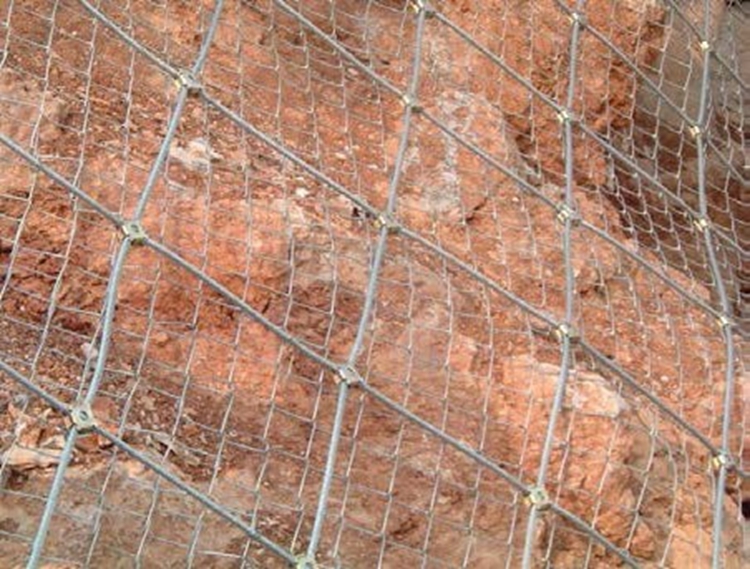

Wire Rope Net
Advantage of Wire Rope Net
● High tensile strength and load capacity.
● Environmental friendly for excellent adaptability.
● Anti harsh environment, maintain good condition.
● Corrosion and rust resistant.
● Durable and long service life.
Specification of Wire Rope Net
● Material: high carbon steel, stainless steel.

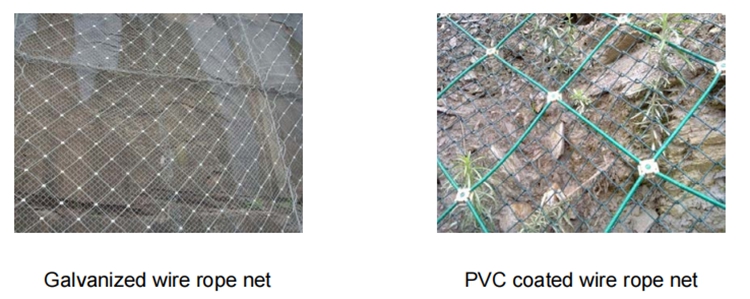

● Surface treatment: galvanized, PVC coated.
● Wire rope diameter: 8 mm.
● Wire rope mesh size: 300 mm × 300 mm.
● Mesh roll size: 4 m× 4 m, 4.5 m× 4.5 m.
● Supporting rope diameter: 12 mm, 16 mm.
● Sewing rope diameter: 8 mm.
● Anchor diameter: 25 mm × 25 mm.
● Anchor bearing plate size: 320 × 170 mm, 320 × 180 mm.
Strict Quality Control
● Raw material system
All the materials of the rockfall barrier are purchased from large factories, which has mill certificate and test report. Before the production, we will test again to ensure all the materials are qualified.
● Production management system
All the workers are trained systematically, including operating machine, hygienic standard and so on. And all our workers are skilled and experienced to improve the production efficiency and the product precision.
● Quality inspection system
When the products are completed, they will be delivered to the inspection department. The inspection personnel will test the products strictly according to the industrial standard.
● Product package system
The rockfall barriers can be packaged in bulk, plastic film, pallet and wooden case. The perfect package can protect the products from rain or sea water. Besides, it can resist the impact from external forces.
● Stock storage system
When the products are packaged, they will be delivered into the warehouse. Our warehouse are clean and dry, which can protect the products from dust and water. And the warehouse is large for easy and fast loading.
● Re-inspection system
All the products will be inspected again before loading, including the product properties and product package. Only the qualified products can be delivered to our customers.
● After-sale system
If you have any problems or questions during the usage, our servers will contact technicians, and they will give you professional instruction and suggestion. If the products are broken or other product questions, they will contact the sales department and give the solutions as soon as possible.

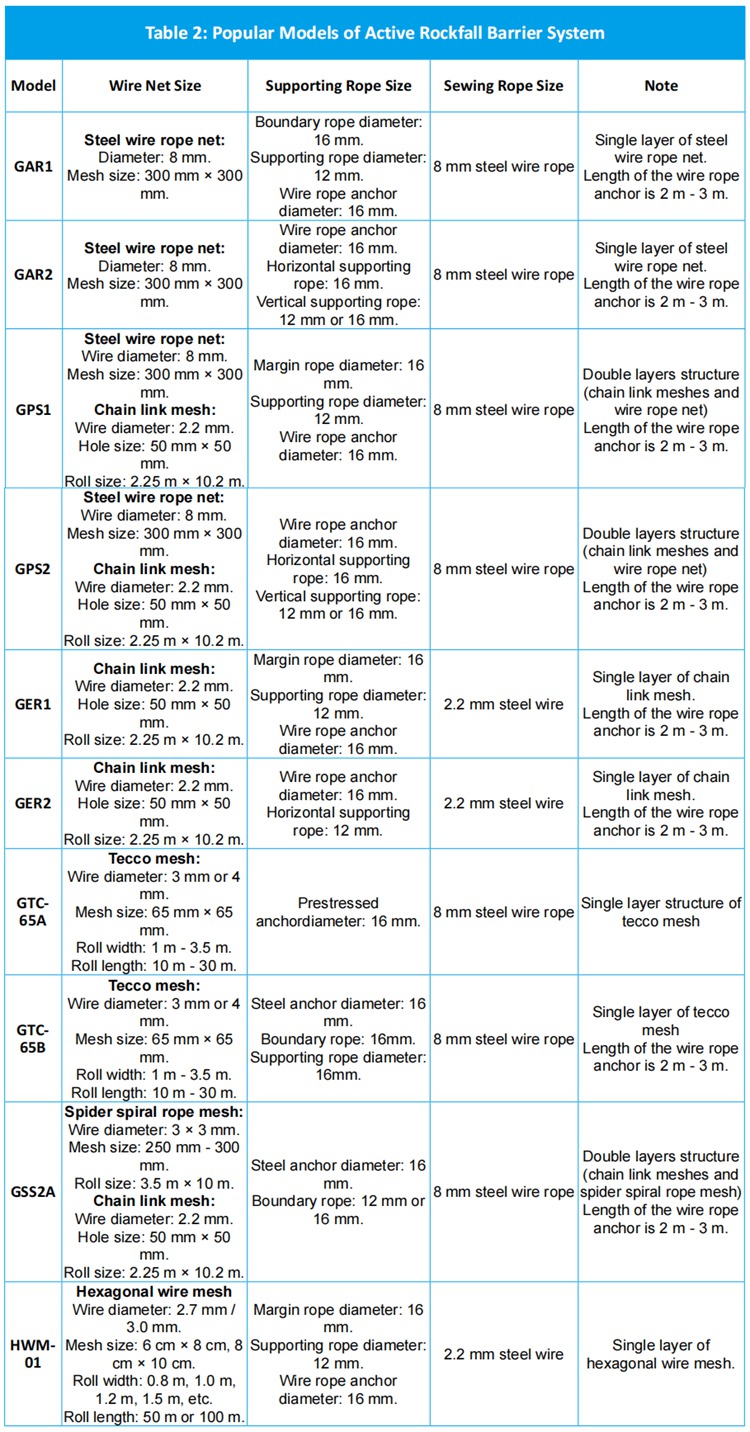

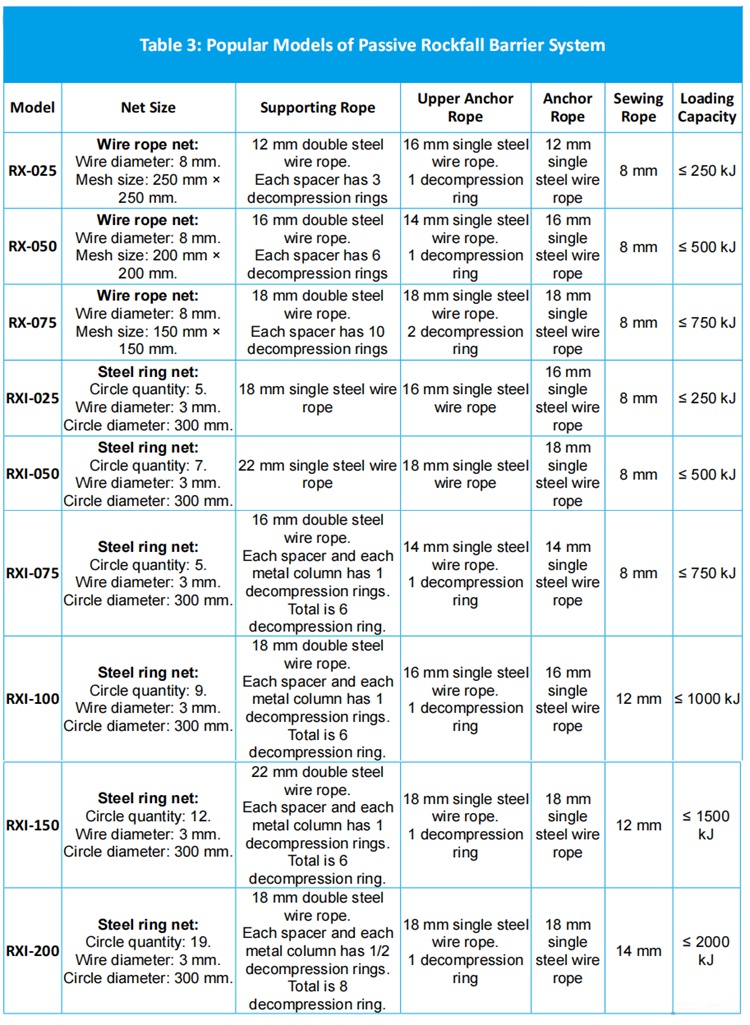

Popular Models of Rockfall Barrier: see table 2 and table 3
Common Combination
● Wire rope net with chain link mesh.
● Steel ring net with chain link mesh.
● Steel ring net with hexagonal wire mesh.

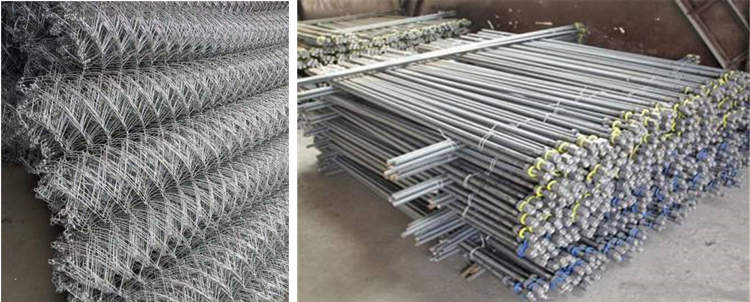

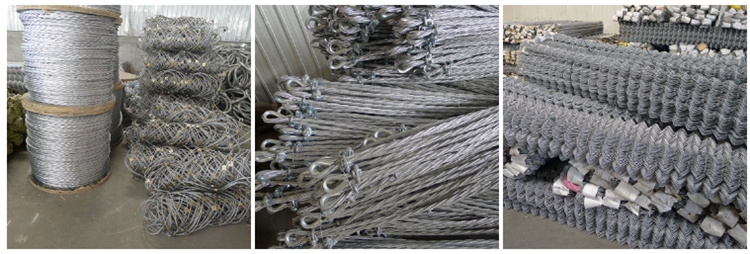

Product Packages
Product Application

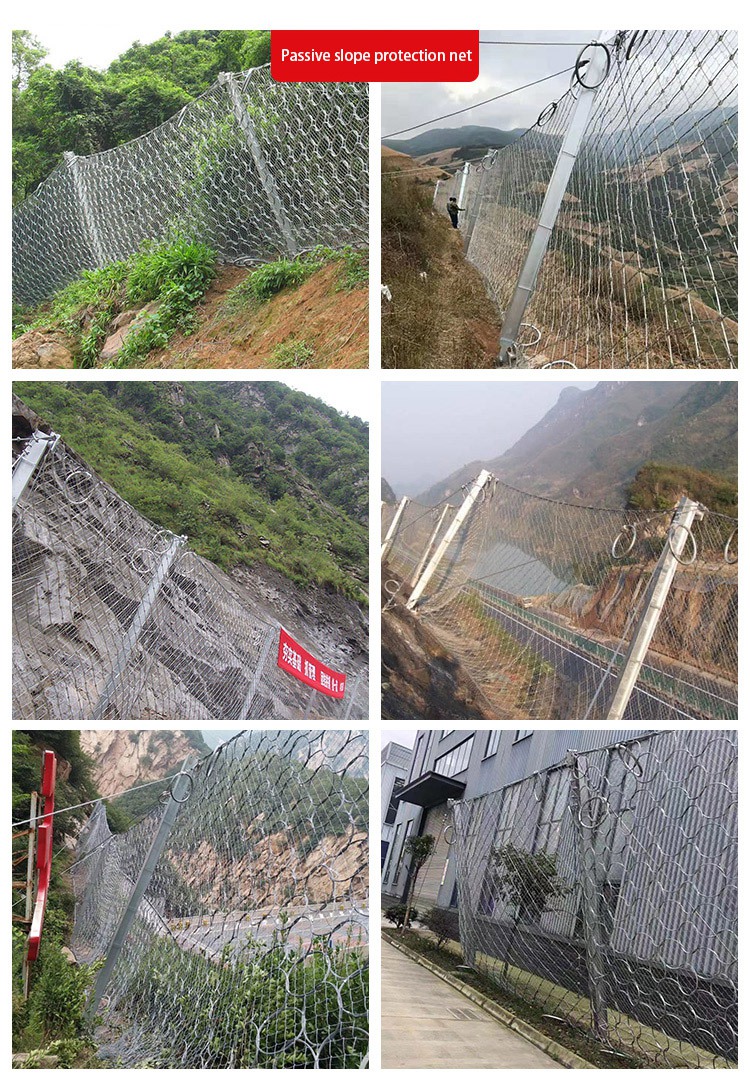

When a solution cannot be implemented in the detachment zone, possibly due to technical, topographic, access or economic issues, other options need to be considered. In these cases, a cost-effective solution is often provided by installing dynamic rockfall barriers within the transit or impact zones.
These dynamic barriers or ‘catch fences’ are positioned to intercept and stop falling rocks and boulders.
● Slope protection.
● Mountain protection.
● Vegetation protection.
● Road protection.
