The Spiral Press Filter Belt is ideal for industries not only for the printing but also for the food industry, pharmaceutical, process hides, salt and the clothing industry. Due to the fabric make up of the Spiral press filter, it lowers air permeability while increasing the opening thus reducing raw material loss from the open mess.
Description
The Spiral Press Filter Belt is ideal for industries not only for the printing but also for the food industry, pharmaceutical, process hides, salt and the clothing industry. Due to the fabric make up of the Spiral press filter, it lowers air permeability while increasing the opening thus reducing raw material loss from the open mess. The filter belt is use in a wide range of equipment including high-pressure press filter washer, liquid pulp separator, netting belt coal washer and horizontal belt washer.
Specification
| Type | Spiral loop width (mm) | Filament diameter (mm) | Strength (N/cm) | Weight (Kg/m2) | Thickness (mm) | Air permeability (m3/m2h) | CFM (127/pa) | ||
| Spiral ring monofilament | Connection Wire | filler material monofilament | |||||||
| Small loop | 5.2 | 0.5 | 0.8 | 0.60*3 | 1800 | 1.5 | 2.1 | 4480 | 280 |
| Medium loop | 8 | 0.68 | 0.9 | 0.80*4 | 2000 | 2 | 2.45 | 6080 | 380 |
| Medium loop | 7.15 | 0.68 | 0.9 | 0.90*3 | 2000 | 1.9 | 2.45 | 5760 | 360 |
| Medium loop | 7.15 | 0.68 | 0.9 | 0.80*3 | 2000 | 1.85 | 2.45 | 7750 | 484 |
| Medium loop | 7.15 | 0.68 | 0.9 | Flat Wire 2.1*0.80 | 2000 | 1.8 | 2.45 | 9000 | 563 |
| Medium loop | 7.15 | 0.68 | 0.9 | Flat Wire 2.1*0.88 | 2000 | 1.85 | 2.45 | 8000 | 500 |
| Medium loop | 7.15 | 0.68 | 0.9 | Conductive carbon wire | 2000 | 1.6 | 2.45 | 10000 | 625 |
| Large loop | 8 | 0.9 | 0.9 | 0.90*3 | 2300 | 2.3 | 3.03 | 7500 | 468 |
| Large loop | 10 | 0.9 | 1.1 | 1.0*4 | 2000 | 2.4 | 3.15 | 6240 | 390 |
| Large loop | 8 | 1 | 0.9 | 1.0*3 | 2000 | 2.5 | 3.6 | 5000 | 315 |
| Large loop | 1.2 | 1.2 | 1.3 | 1.2*3 | 2600 | 2.85 | 4.3 | 7500 | 468 |
Feature
1. Resistant to wide range of acids and organic solvents
2. Safe for food processing applications
3. Exceptional strength and dimensional stability
4. Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions
Application
Suitable for pulp-liquor separator,high-pressure press-filter washer,horizontal belt washer,netting belt coal-washer,pulp washing,coal washin,wine chaff dehydration,bran vinegar dehydration,sludge dehydration,chemical industry.
Polyester Spiral Press-Filter Fabrics are mainly used in paper making, printing and dyeing, food, pharmaceutical, ceramics and solid-liquid separation industries like sludge dehydration
1. Dewatering of inert sludge quarries or mines
2. Dewatering of biological or chemical sludger from municipality sewage plants.
3. Pressing of grapes,fruit and others
4. Foodstuffs processing.

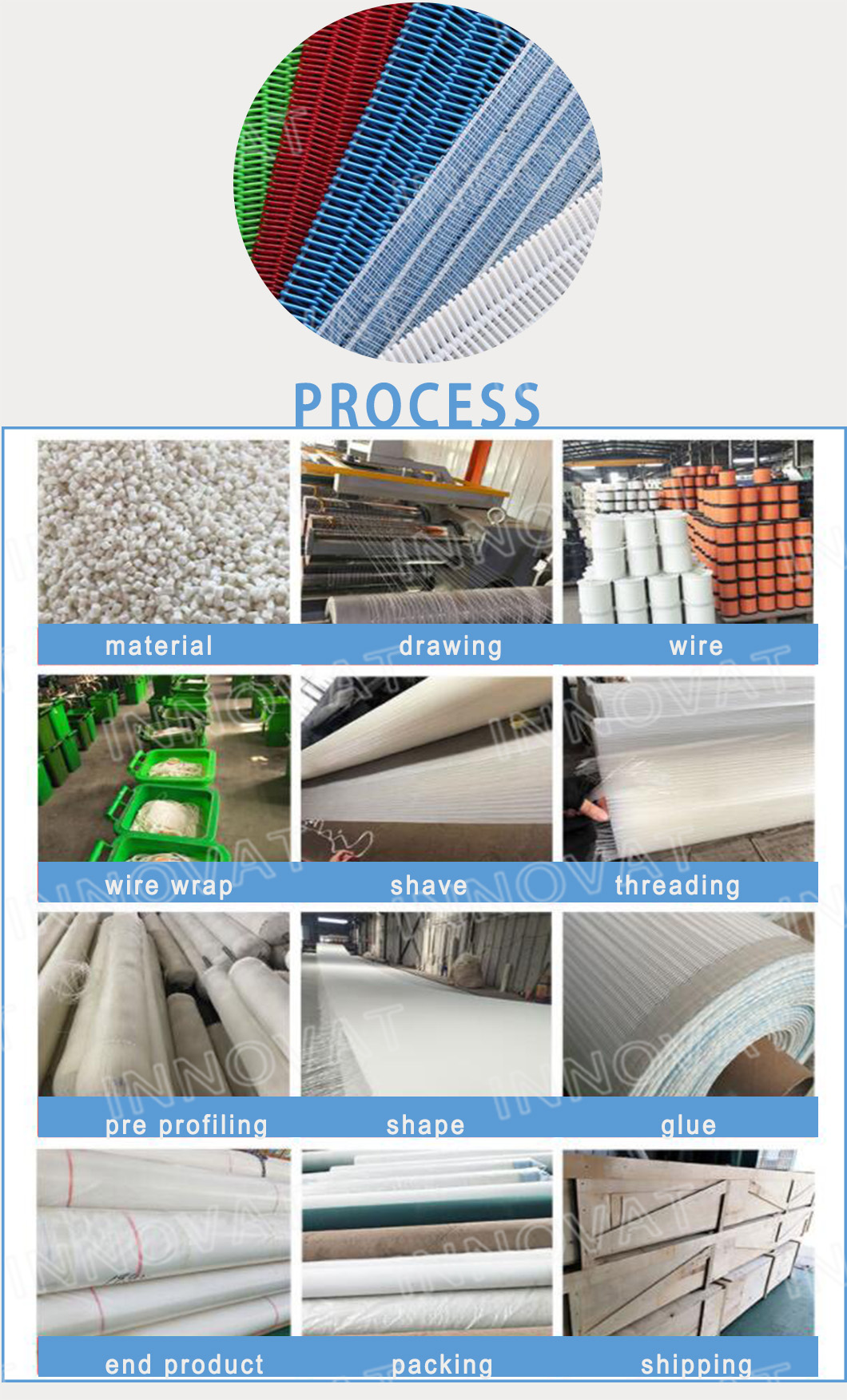

Process

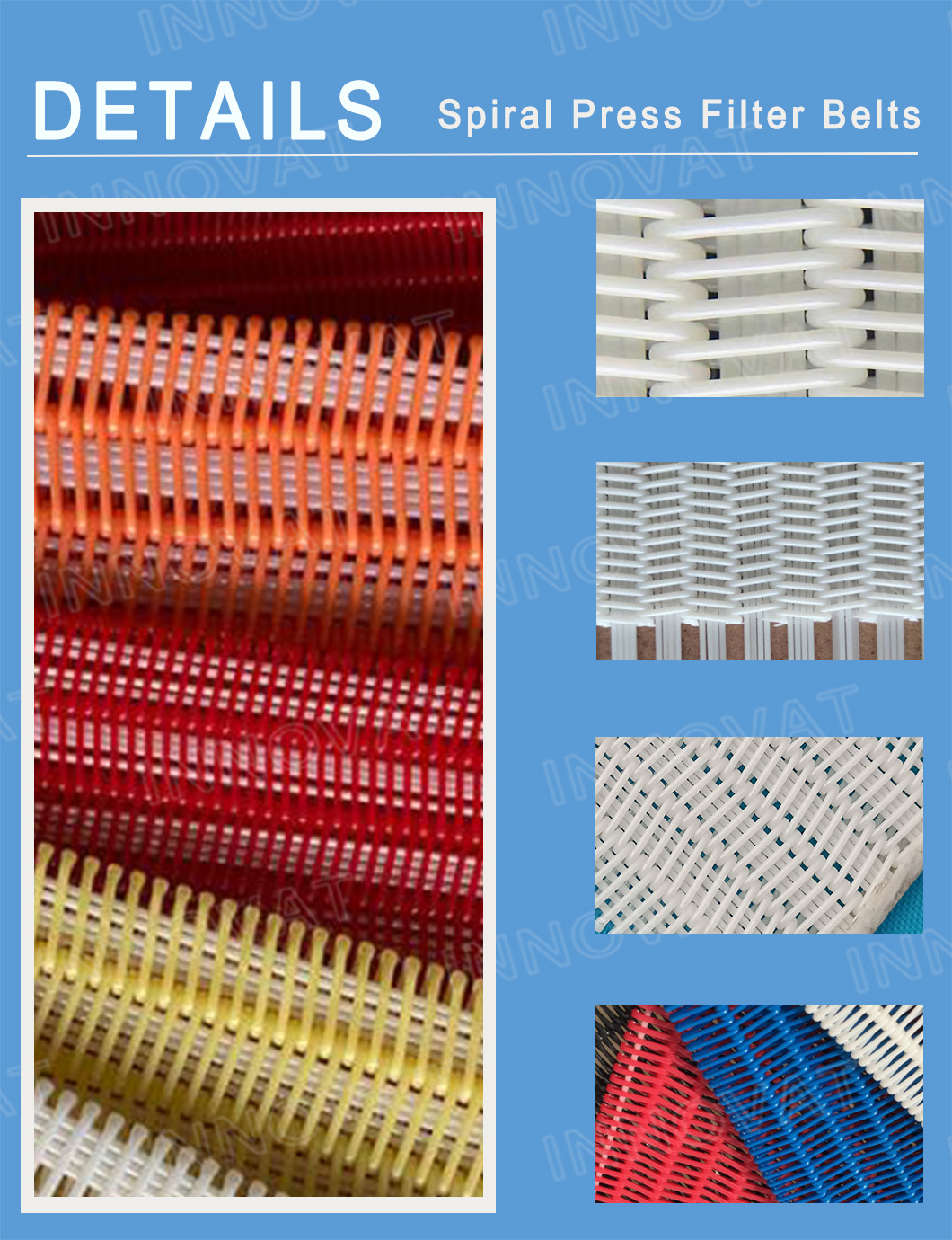

Details

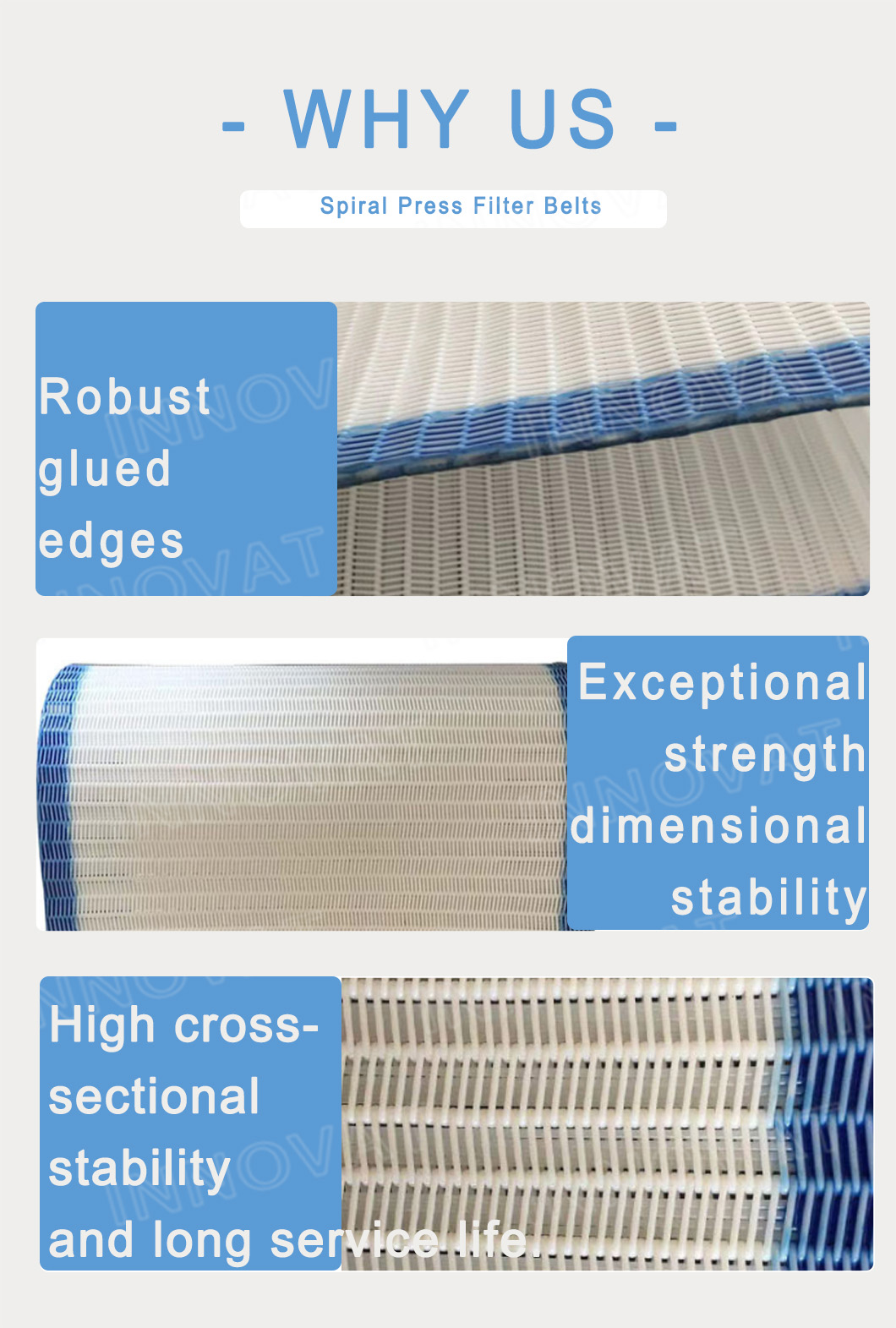

Why Us

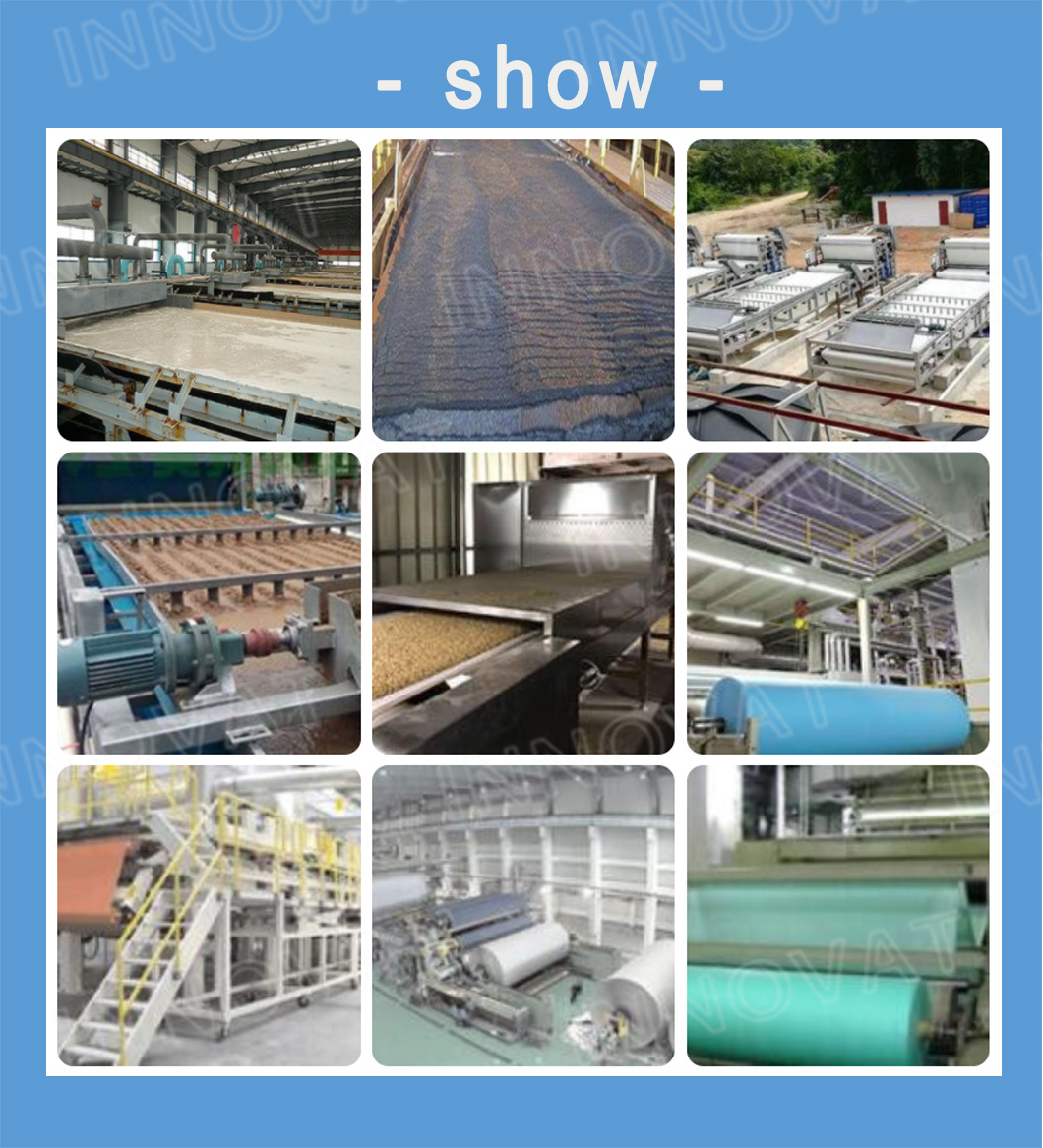

Show
