The Palisade fence, also called European guardrail adopts the barrier welded by cold drawn low-carbon steel wire, and is fixed with the steel pipe pillar with connecting accessories. The outstanding feature of European guardrail products is "beautiful and practical".
Product Specification
The Palisade fence, also called European guardrail adopts the barrier welded by cold drawn low-carbon steel wire, and is fixed with the steel pipe pillar with connecting accessories. The outstanding feature of European guardrail products is "beautiful and practical". The mesh adopts frameless welding structure, which is convenient for transportation and installation. It has strong terrain adaptability, and the connection position with the column can be adjusted up and down with the fluctuation of the ground; And we also installed four bending stiffeners on the mesh horizontally, which significantly increased the strength of the mesh. At present, European guardrails are widely used in railway enclosed living quarters, fences, stockyards, and development zones as barriers Characteristics and uses of triangular protective net European style guardrail has the characteristics of beautiful and durable grid structure, wide vision, diverse designs and colors, high strength, good rigidity and beautiful shape. It is free from topographic relief and easy to install.

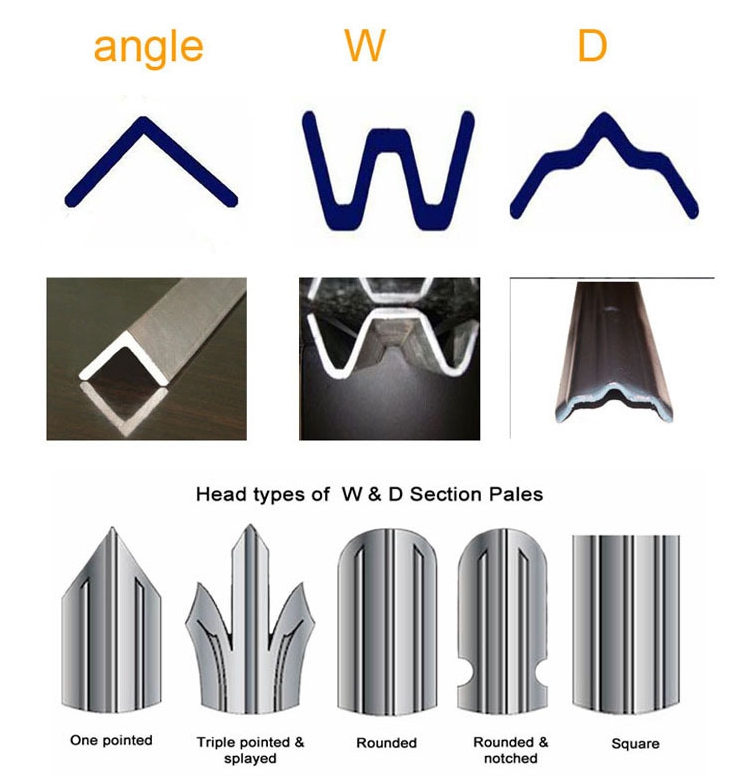

Palisade Fence is widely used in the industry. As a commercial fence, using hot formed and cold rolled steel belts to form a secure panel. There are also three types of tops, including "W" profile, "D" profile and angle iron.
| Fence panel height | 1m-6m |
| Fence panel width | 1m-3m |
| Pale height | 0.5m-6m |
| Pale width | W pale 65-75mm D pale 65-70mm |
| Pale thickness | 1.5-3.0mm |
| Angle rail | 40mmx40mm 50mmx50mm 63mmx63mm |
| Angle rail thickness | 3mm-6mm |
| RSJ post | 100mmx55mm 100mmx68mm 150mmx75mm |
| Square post | 50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm |
| Square post thickness | 1.5mm-4.0mm |

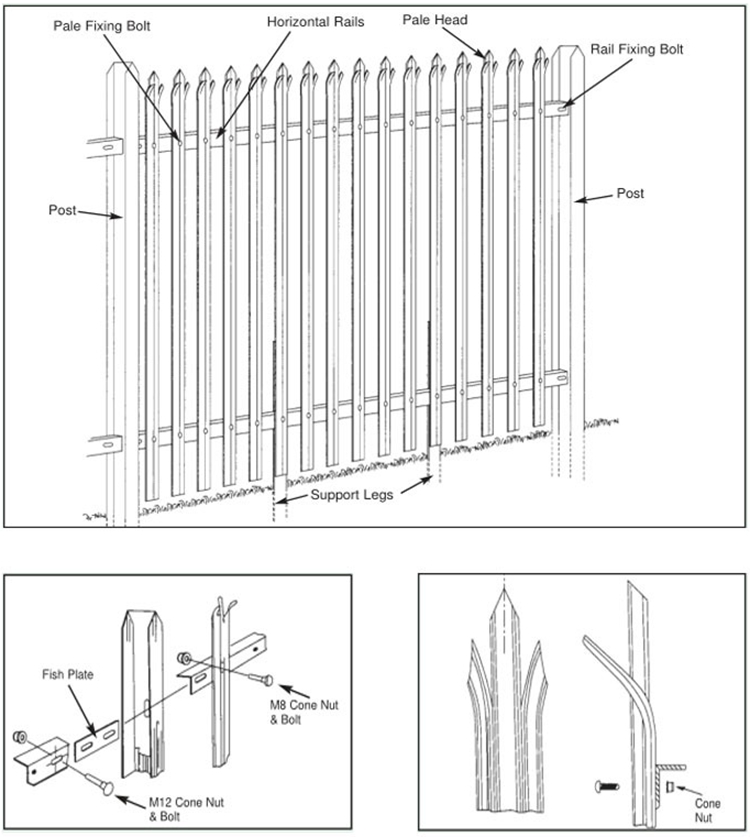

| Straight fishplates or post clamps | 30mmx150mmx7mm 40mmx180mmx7mm |
| Bolts and nuts | M8XNo.34 for pale fixing M12xNo.4 for rail fixing |
| If you have any other questions, please contact me at any time | |
Details Images

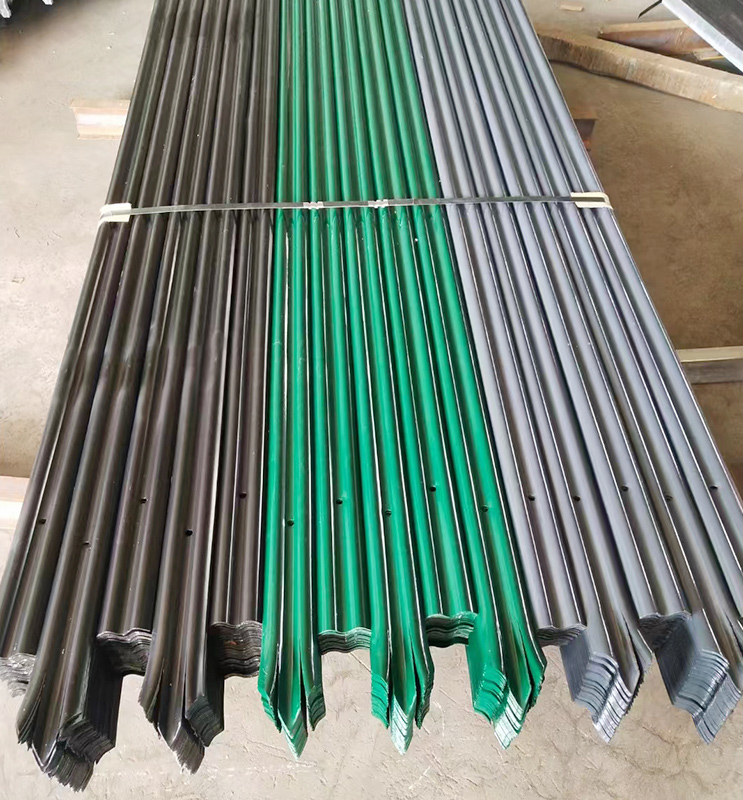

D-section: 2.5mm to 3.5mmCompared with "W" profile pales, "D" profile is more economical.
W-section: 2.0mm to 3.0mm
Most used vertical type of pales for palisade fencing, which is always the customers' first choice for pales.

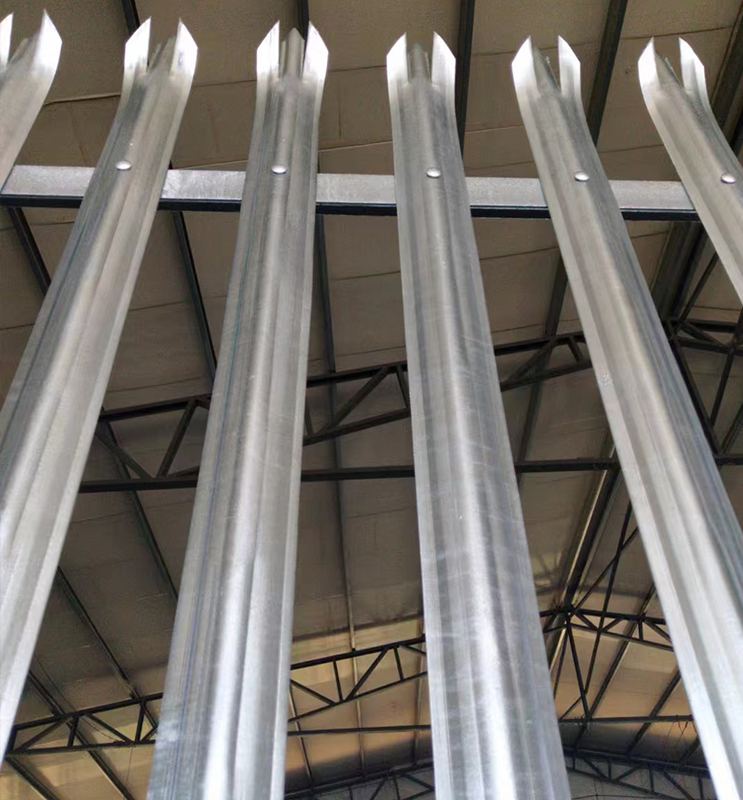

Pales-"W" section-----Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.
| Width | Thickness | Surface Treatment | Head | Height |
| 60mm | 2.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Single point Triple point | 1200mm-3000mm |
| 2.5mm | ||||
| 3.0mm |
Pales-"D" section----Compared with "W" profile pales, "D" profile is more economical.
| Width | Thickness | Surface Treatment | Head | Height |
| 68mm-70mm | 2.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Single point Triple point | 1200mm-3000mm |
Pale-Angle iron----Pale-Angle iron
| Width | Thickness | Surface Treatment | Head | Height |
| 40*40 | 2.0mm3.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Single point Triple point | 1200mm-3000mm |
Rolled steel angle (RSA) 50x50x2.75mmIt is the connection part between pales and IPE post, which makes the fence as a whole panel.
Post-IPE Type
IPE type is the most useful way as a connection post between the fence panels.
| Size | Thickness | Surface Treatment | Head | Height |
| 100*55mm | 3.5mm4.0mm4.5mm5.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Cut sharp | Based on the fence height |
| 100*68mm | ||||
| 120*74mm |

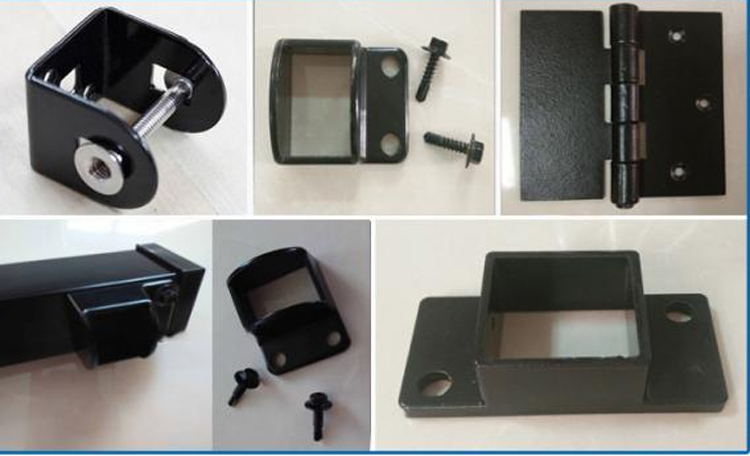

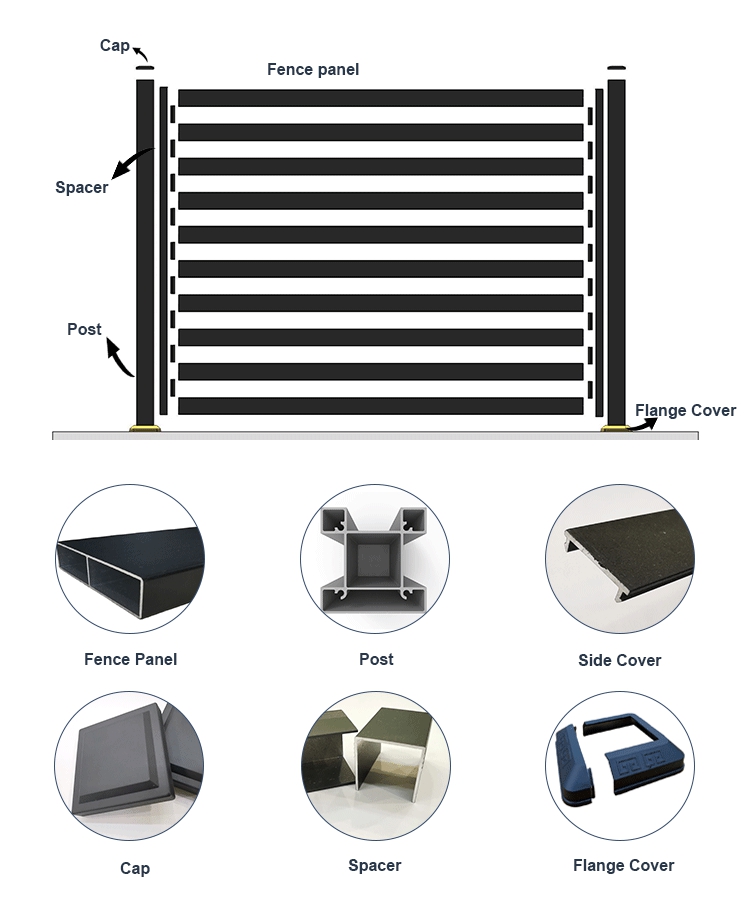

Fence Fittings

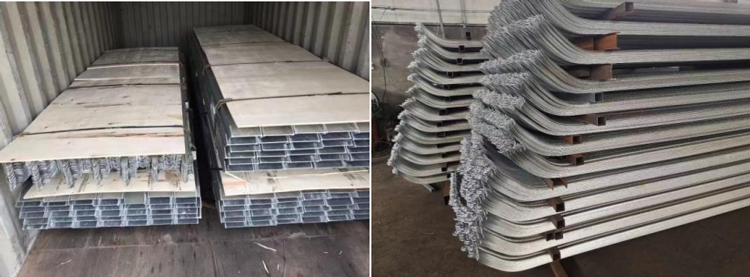

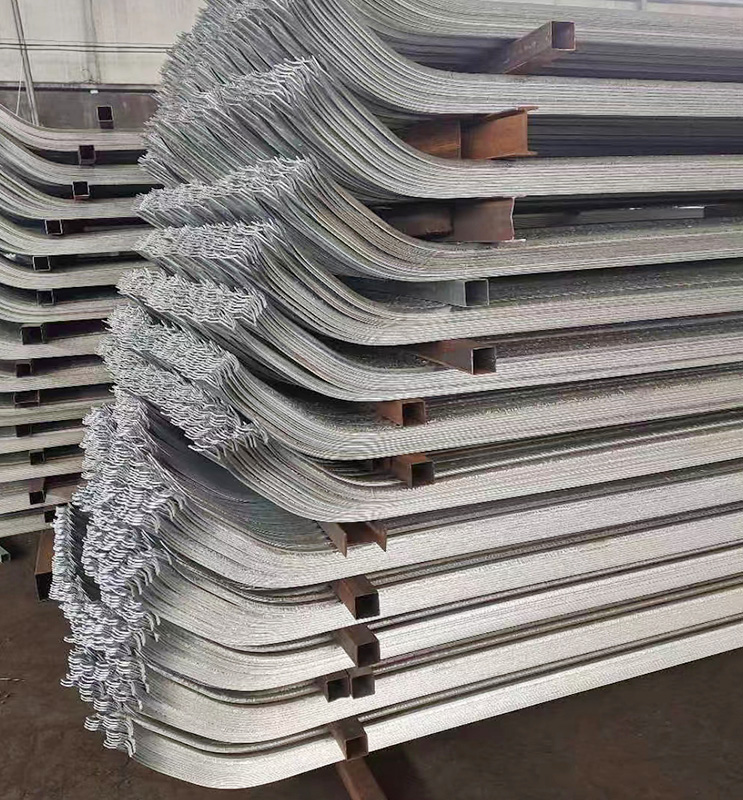

Packing & Delivery
