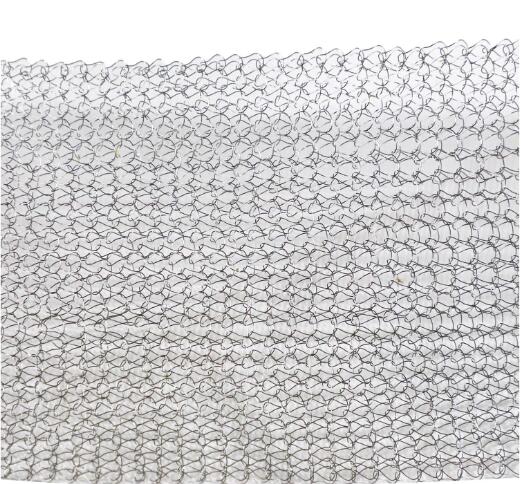

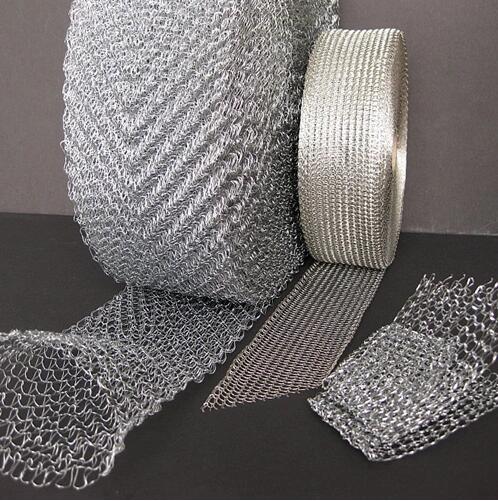

Knitted wire mesh is made by knitting machine similar to jumpers and scarves machine. The final knitted mesh is in the structure of inter-connecting loops, and it similar to a long knit sock. We can produce multifilament, co-knit and multi-strand knitted wire meshes.
Our knit wire diameter is commonly range from 0.11 mm to 0.35 mm. But for special applications, knit wire as small as 0.03 mm or as large as 0.8 mm in diameter is available.
Product Introduction
Knitted wire mesh is made by knitting machine similar to jumpers and scarves machine. The final knitted mesh is in the structure of inter-connecting loops, and it similar to a long knit sock. We can produce multifilament, co-knit and multi-strand knitted wire meshes.
Our knit wire diameter is commonly range from 0.11 mm to 0.35 mm. But for special applications, knit wire as small as 0.03 mm or as large as 0.8 mm in diameter is available.
Product Specification

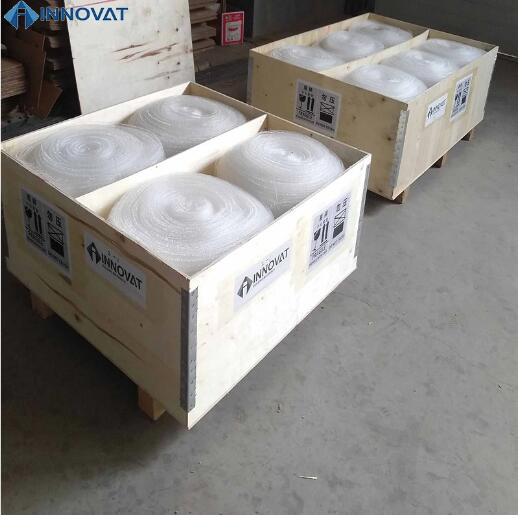

Physical Properties: Knitted wire mesh comes in wire diameters of .006”, .008”, .0095” and .011”. It is available in flattened tubes with widths of 6, 8, 10, 12, 18, 24, 30, 36, 38 and 42 inches. Tubes are then rolled and packaged for shipping in cardboard boxes. Mesh can also be supplied in either a flat or crimped (corrugated) form. Our crimped mesh yields will yield approximately 20% less coverage.

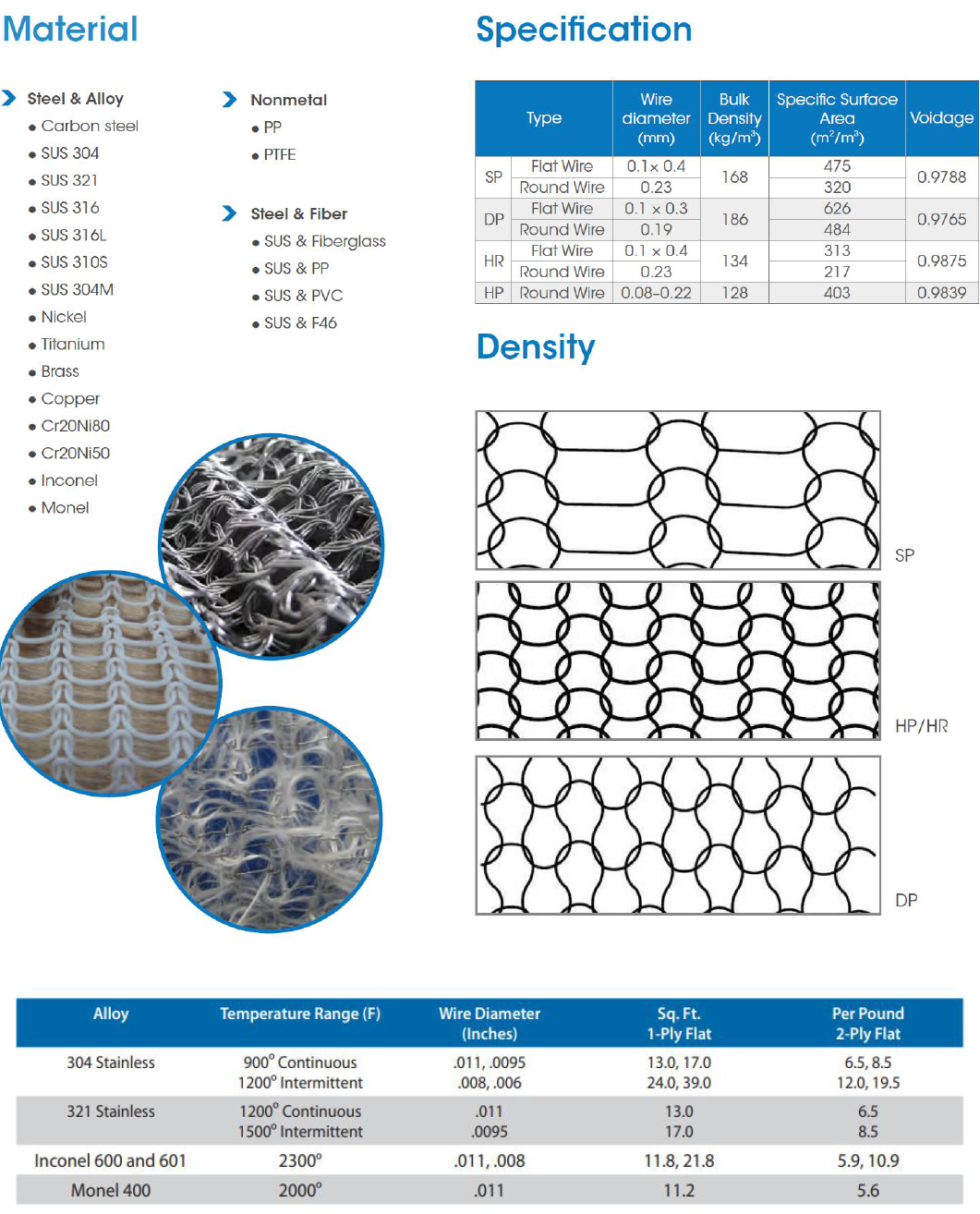

Specification
| Type | Wire diameter (mm) | Bulk Density (kg/m³) | Specific Surface Area (m²/m²) | Voidage | |
| SP | Flat Wire | 0.1x0.4 | 168 | 475 | 0.9788 |
| Round Wire | 0.23 | 320 | |||
| DP | Flat Wire | 0.1×0.3 | 186 | 626 | 0.9765 |
| Round Wire | 0.19 | 484 | |||
| HR | Flat Wire | 0.1×0.4 | 134 | 313 | 0.9875 |
| Round Wire | 0.23 | 217 | |||
| HP | Round Wire | 0.08-0.22 | 128 | 403 | 0.9839 |
| Alloy | Temperature Range (F) | Wire Diameter (Inches) | Sq.Ft. 1-Ply Flat | Per Pound 2-Ply Flat |
| 304Stainless | 9o0°Continuous 1200° Intermittent | .011,.0095 .008,.006 | 13.0,17.0 24.0,39.0 | 6.5,8.5 12.0,19.5 |
| 321 Stainless | 1200°Continuous 15oo° Intermittent | .011 .0095 | 13.0 17.0 | 6.5 8.5 |
| Inconel 600 and 601 | 2300° | .011,.008 | 11.8,21.8 | 5.9,10.9 |
| Monel 400 | 2000° | .011 | 11.2 | 5.6 |

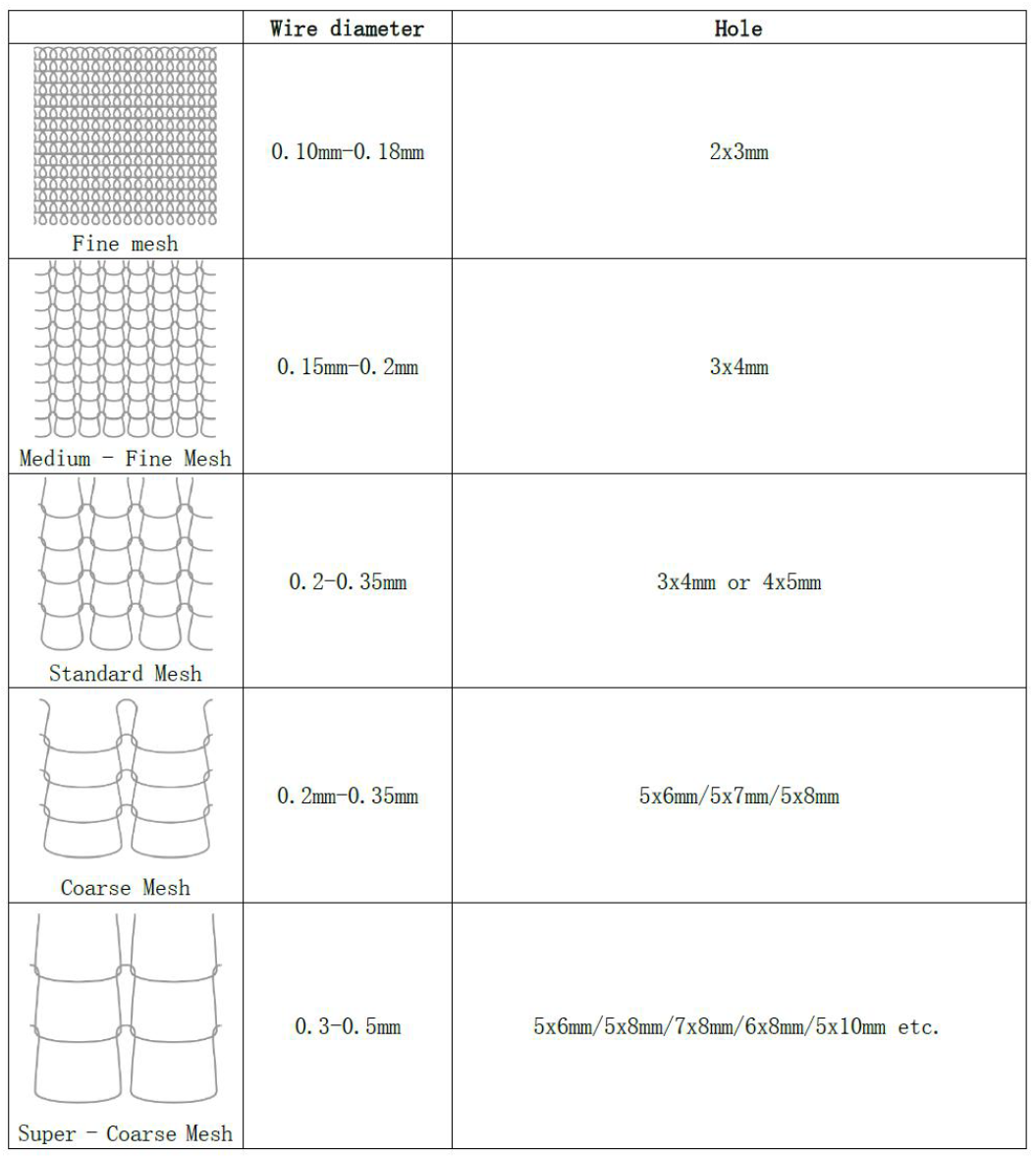

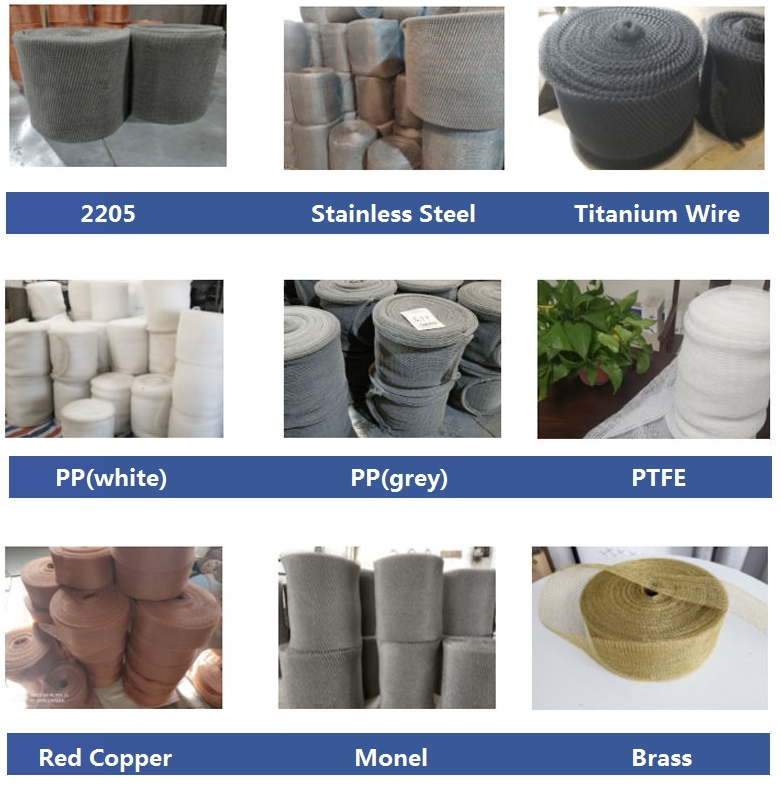

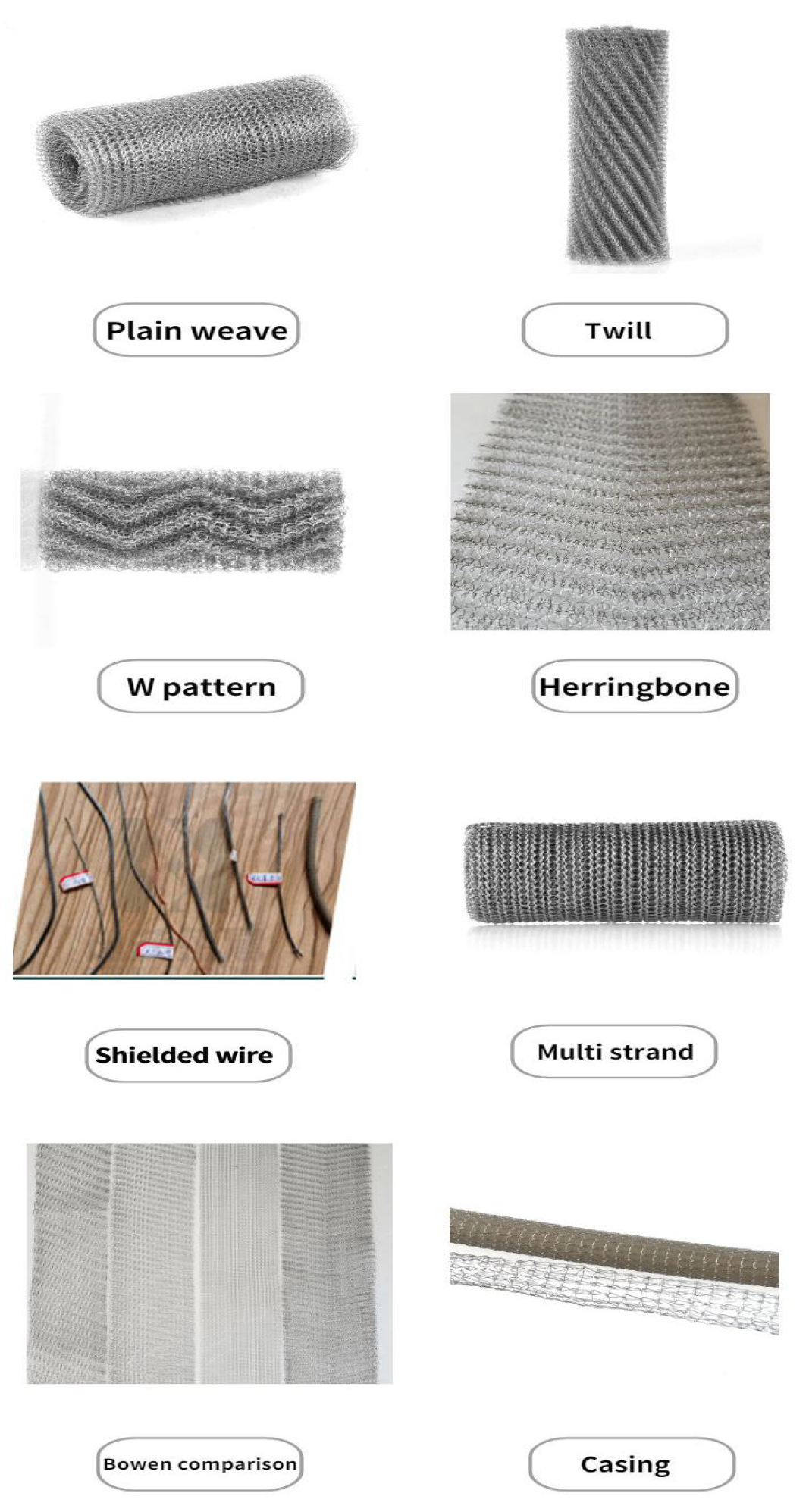

Different Product Types

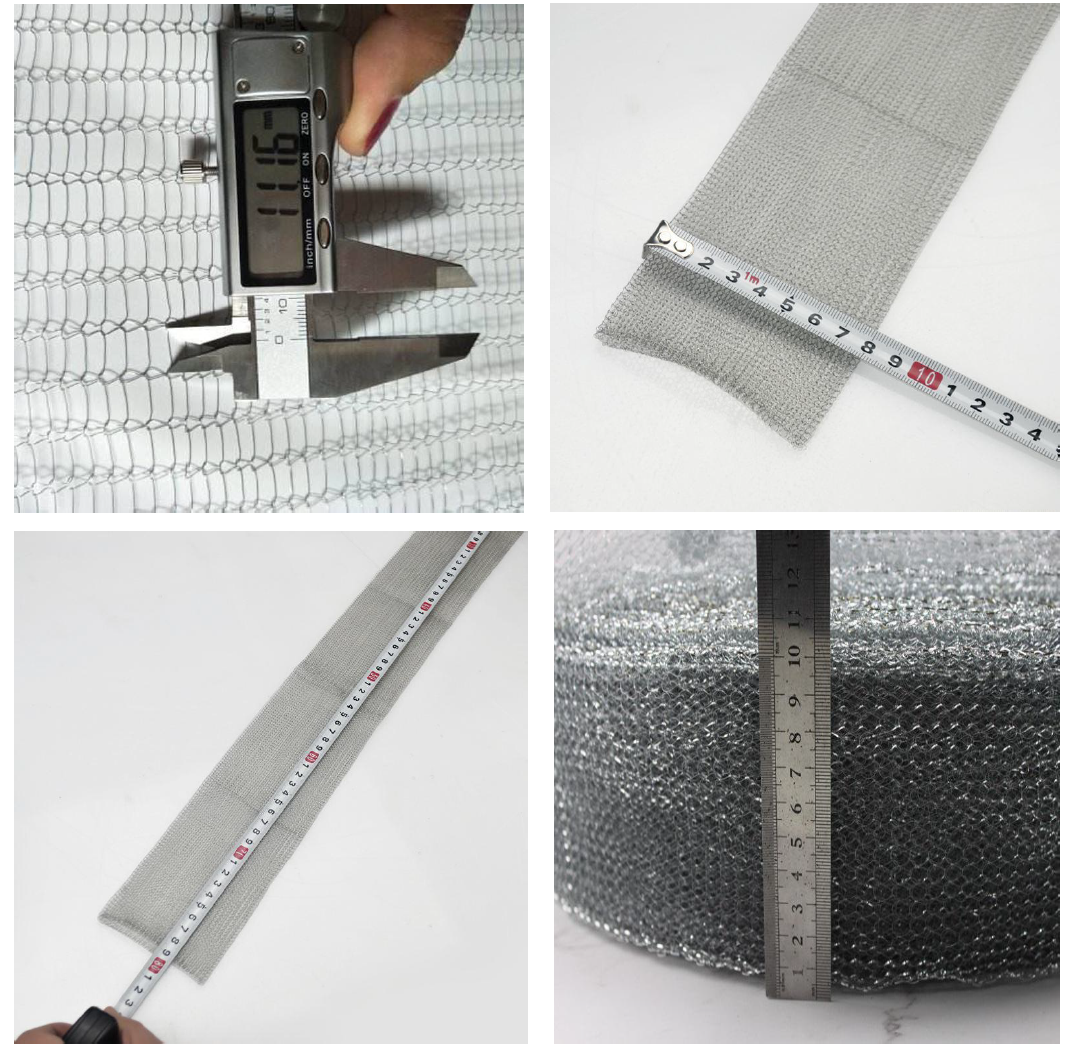

Product Inspection

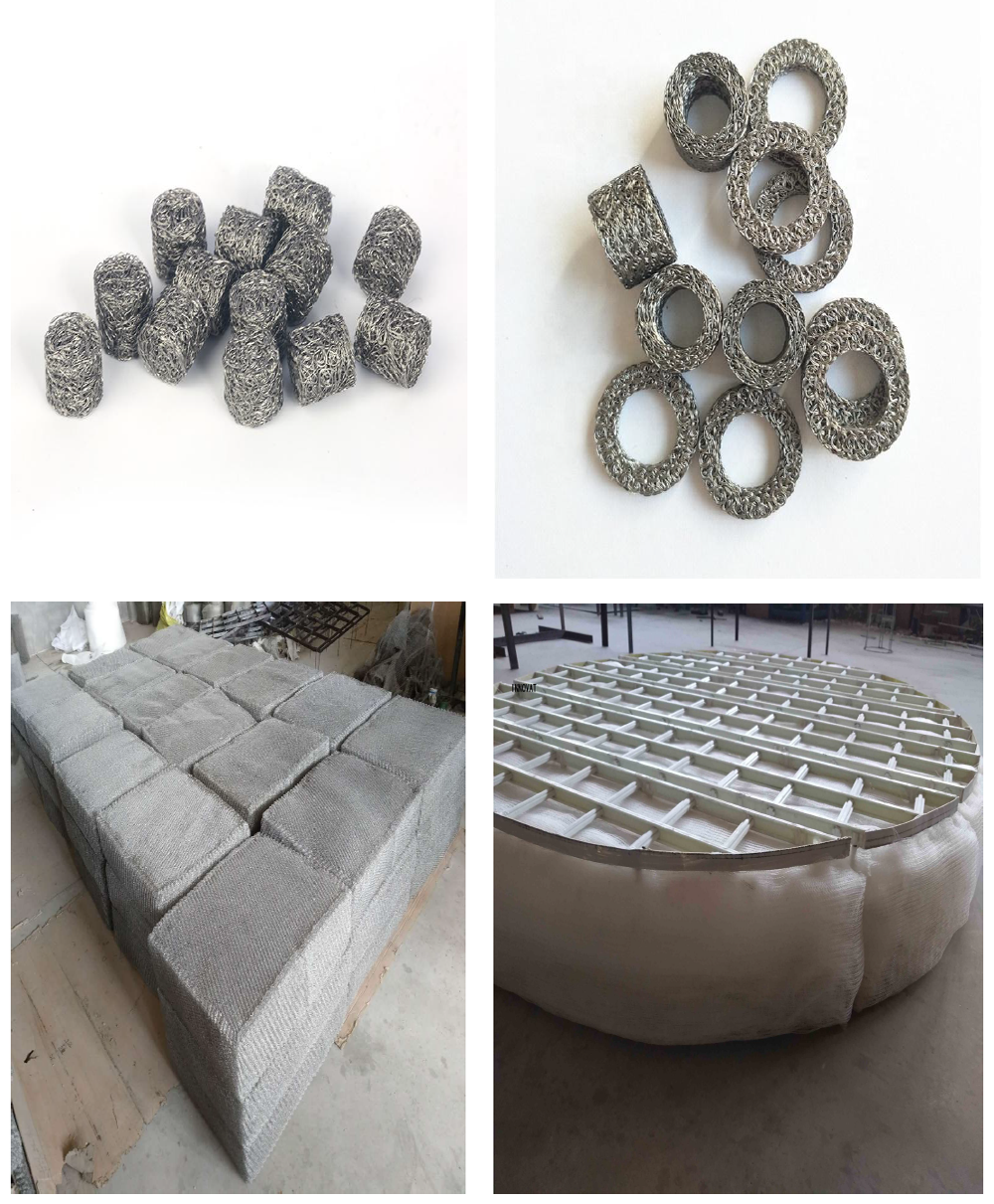

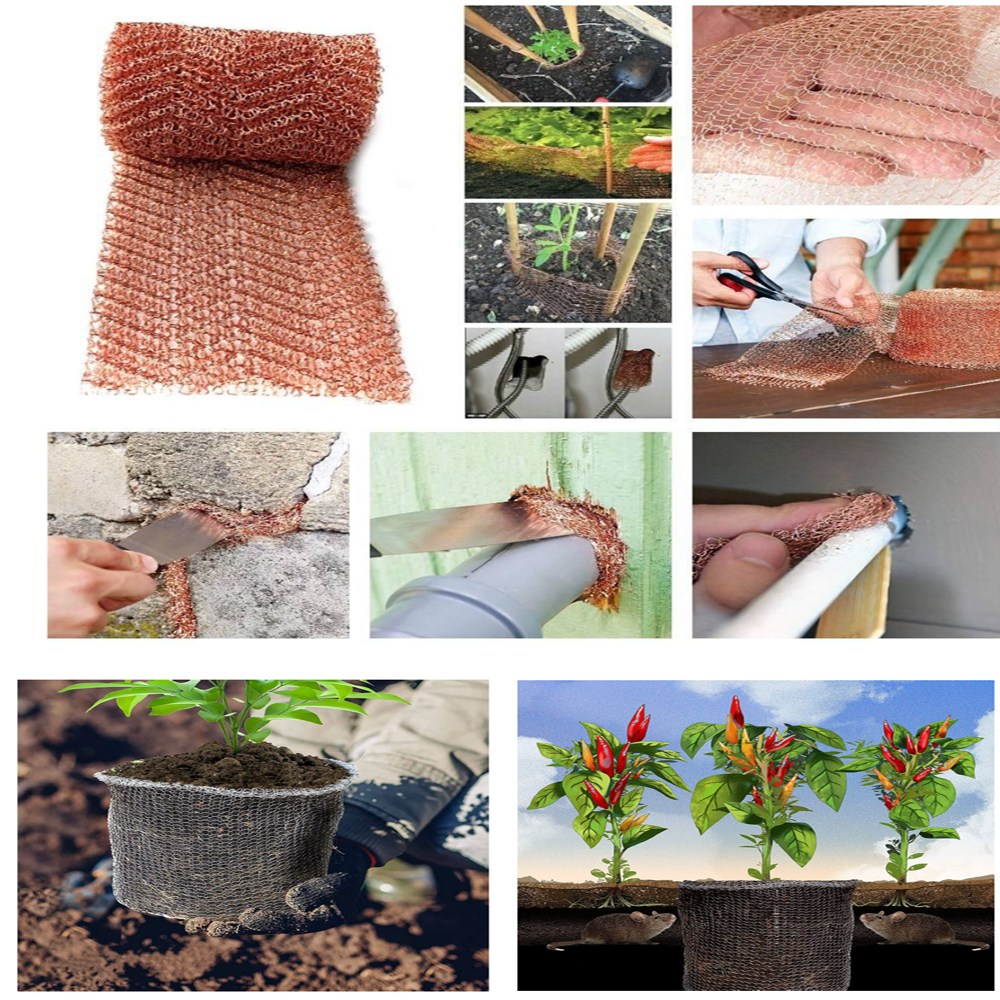

Product Application
