This kind of stainless steel mesh belt is made from stainless steel compound wires and stainless steel rod, which is woven together. It is weaved with high quality stainless steel wire, aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative material in the modern industrial and architectural applications and filter screen.

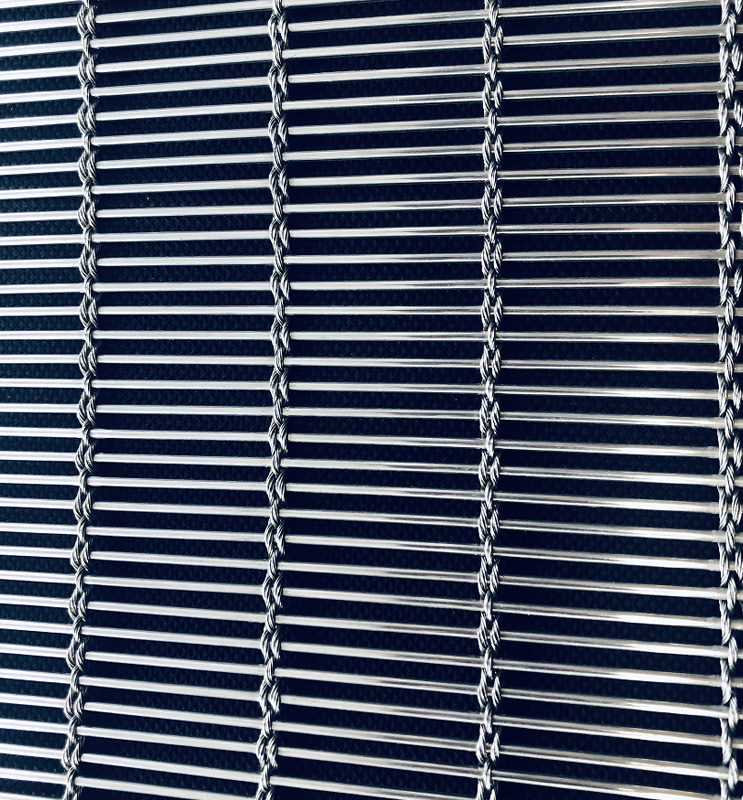

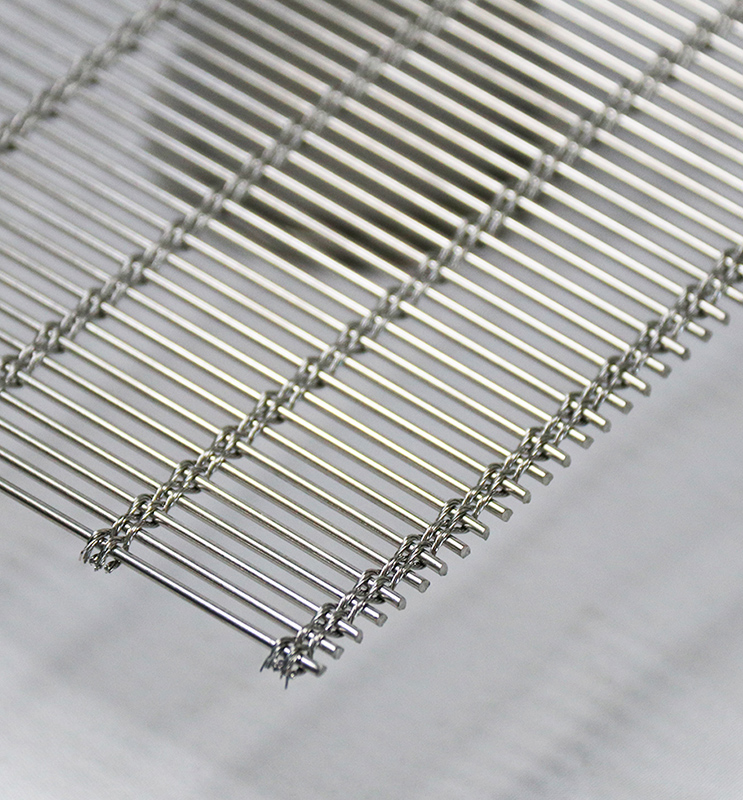

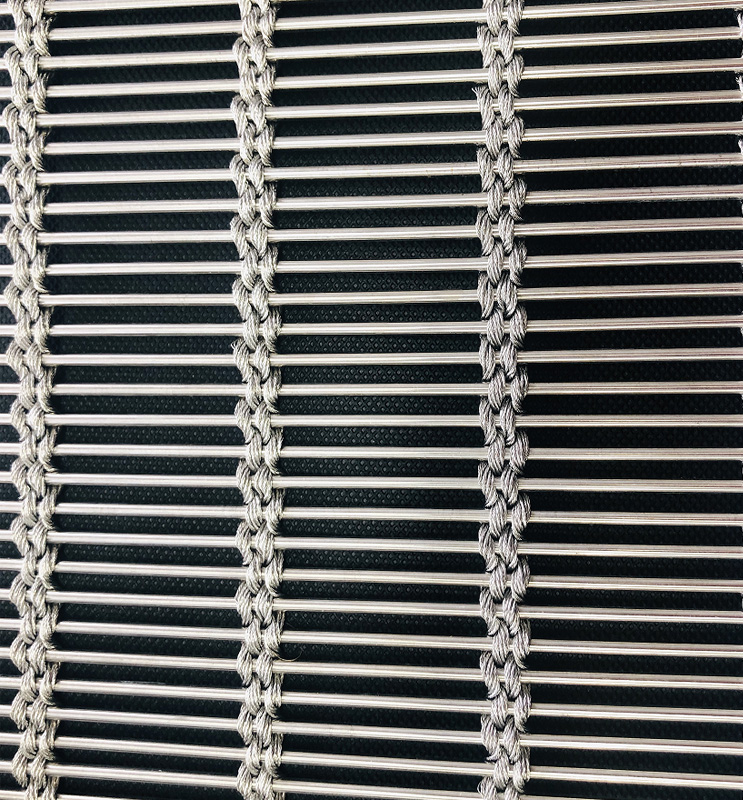

SS cable decorative metal mesh
This kind of stainless steel mesh belt is made from stainless steel compound wires and stainless steel rod, which is woven together. It is weaved with high quality stainless steel wire, aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative material in the modern industrial and architectural applications and filter screen.

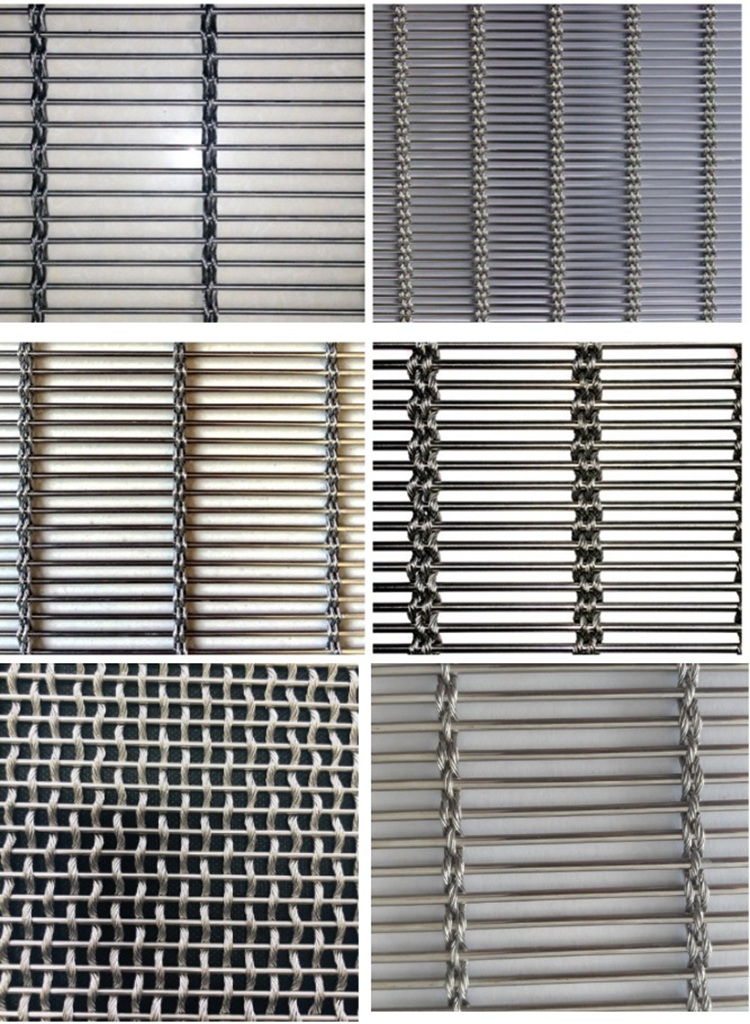

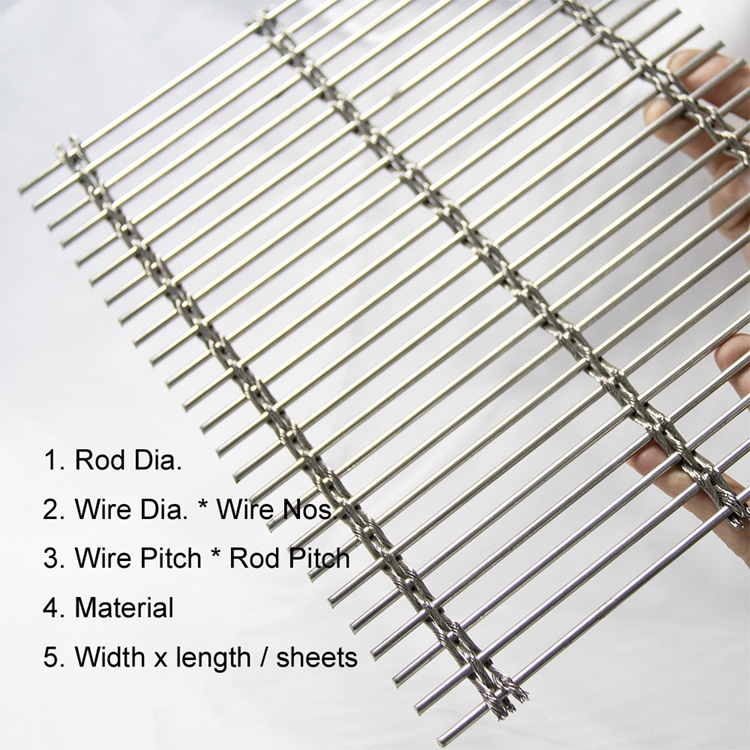

Multiple stranded wire woven mesh specification
| Material | SUS304,SUS316,SUS 316L,kinds of alloy etc. |
| Cable Dia | 1mmx4,2mmx4,3mmx2,2mmx3,2.75mmx2,or customized |
| Cable pitch | 36mm,40mm,50mm,60mm,80mm,etc |
| Rod Dia | 2mm,3mm,4mm, |
| Rod pitch | 5mm,6mm,10mm,11mm,14.5mm,etc |
| Usage | interior and extenior facades decoration |
| Item | Open area(%) | Cable wire (mm) | Cable pitch(mm) | Bar diameter(mm) | Bar pitch(mm) | Thickness(mm) | Weight(kg/m2) |
| 1 | 40 | 1*1.8 | 4 | 1.5 | 5.5 | 5.1 | 7.74 |
| 2 | 43 | 1*2.5 | 6 | 2 | 8 | 5.5 | 7.87 |
| 3 | 62 | 2*2.75 | 40 | 4 | 14.5 | 9.5 | 9.41 |
| 4 | 37.2 | 3*0.5 | 3.5 | 0.5 | 1.4 | 1.2 | 2.4 |
| 5 | 71 | 3*1.6 | 80 | 2.5 | 10 | 5.7 | 4.58 |
| 6 | 65 | 3*2 | 80 | 3 | 10 | 7 | 6.67 |
| 7 | 65.9 | 3*2.75 | 110 | 4 | 14.5 | 10 | 8.5 |
| 8 | 67 | 3*3 | 110 | 4 | 14.2 | 10 | 8.6 |
| 9 | 44.3 | 4*0.75 | 26.4 | 1.5 | 3 | 3 | 5.2 |
| 10 | 62 | 4*1 | 36 | 2 | 6.6 | 4 | 4.55 |
| 11 | 40 | 4*2 | 50 | 3 | 6 | 7 | 11.2 |
| 12 | 42 | 4*2 | 50 | 3 | 6 | 7 | 11.8 |

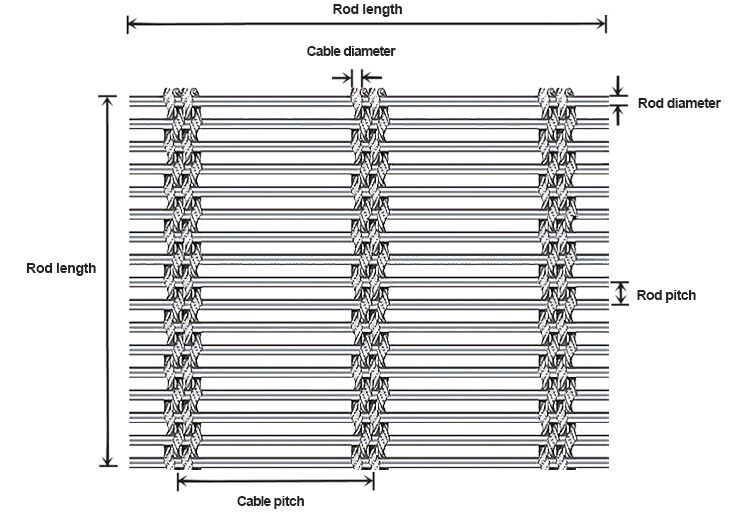

Drawing

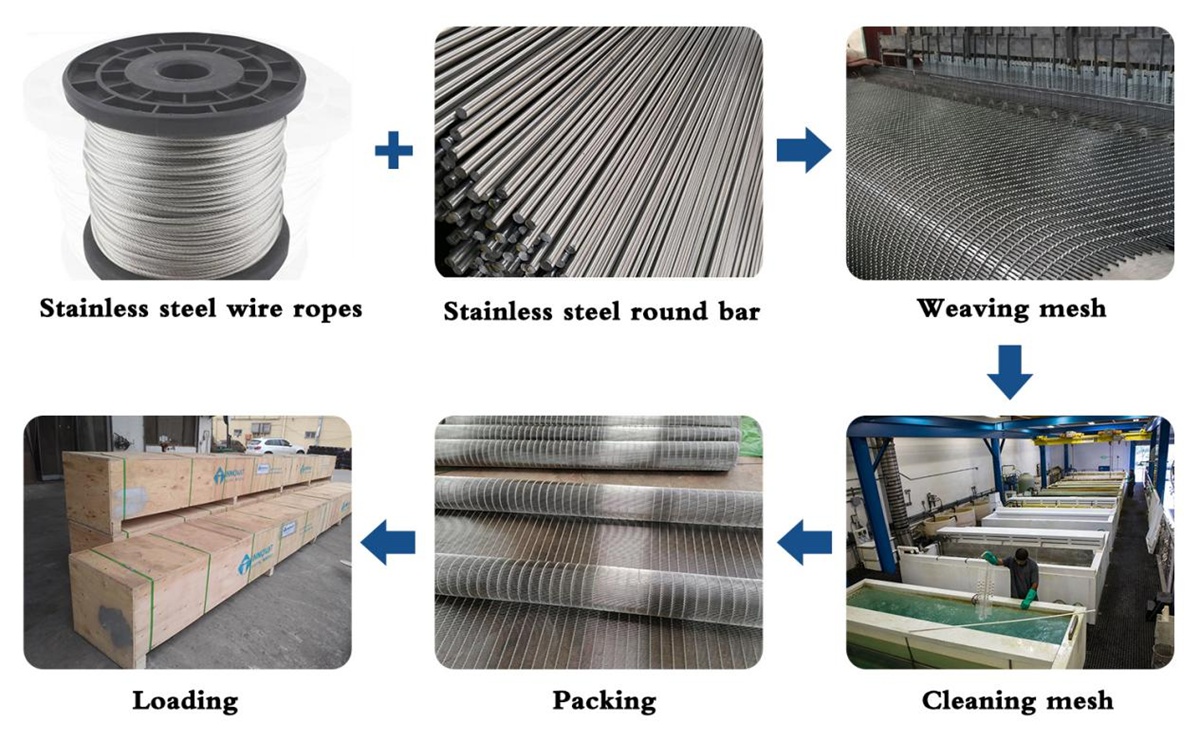

Products Process

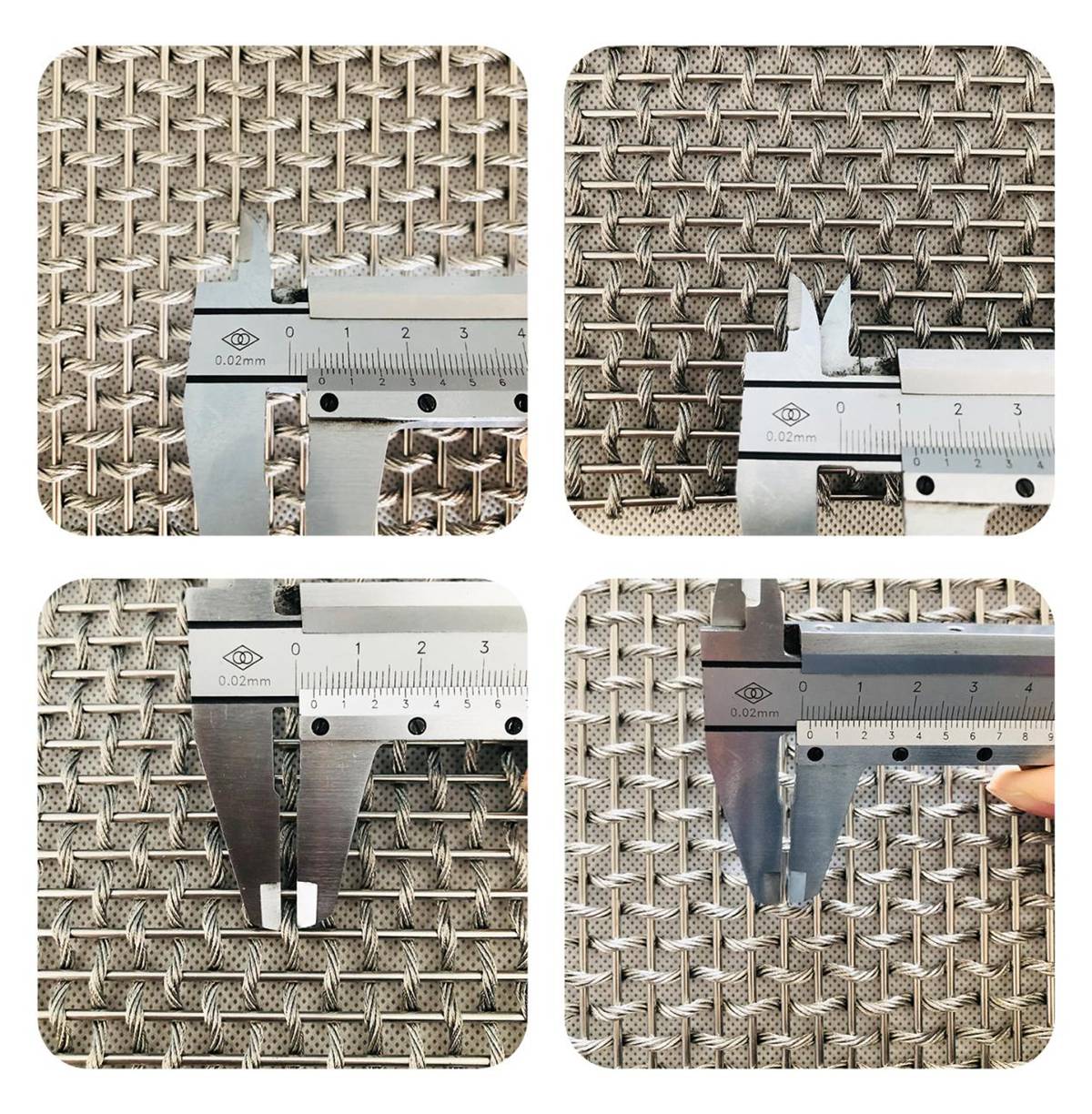

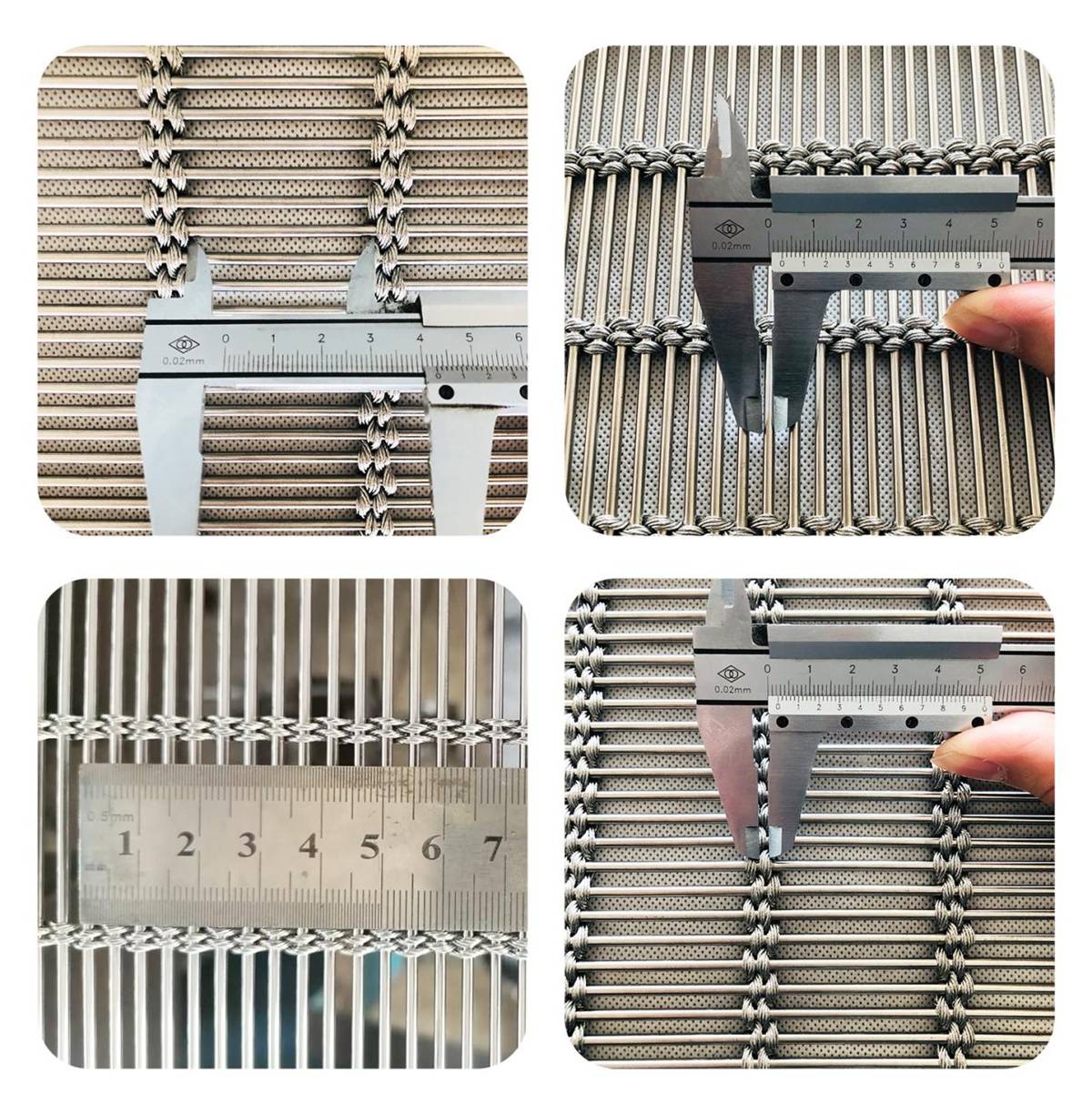

Test

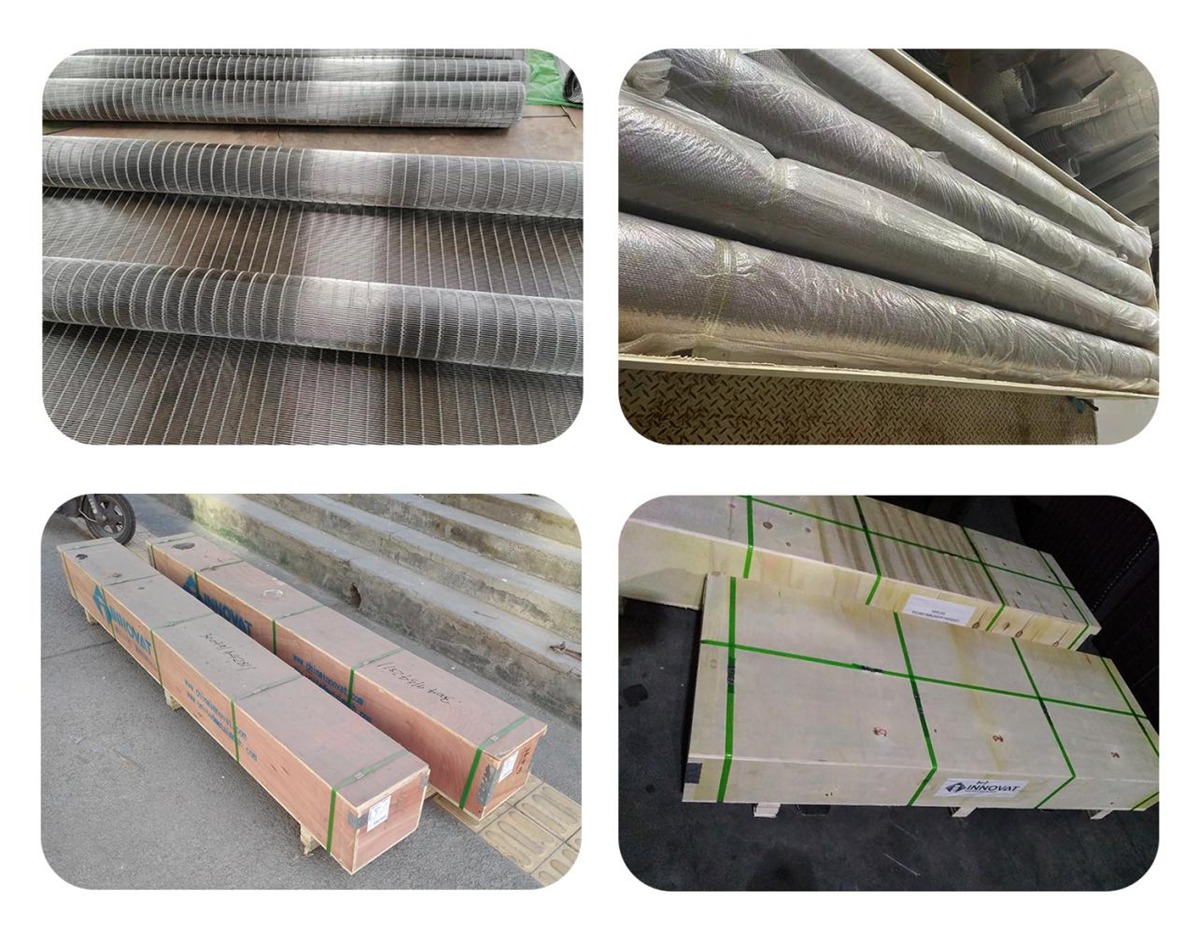

Packing

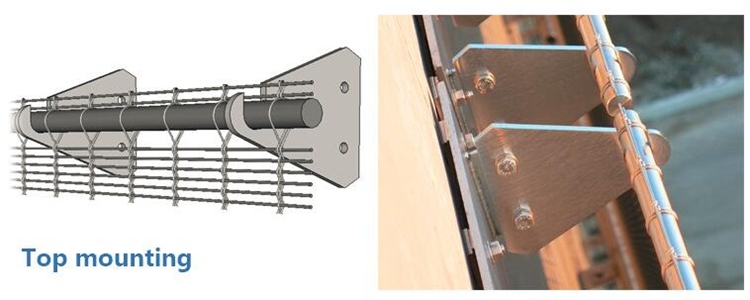

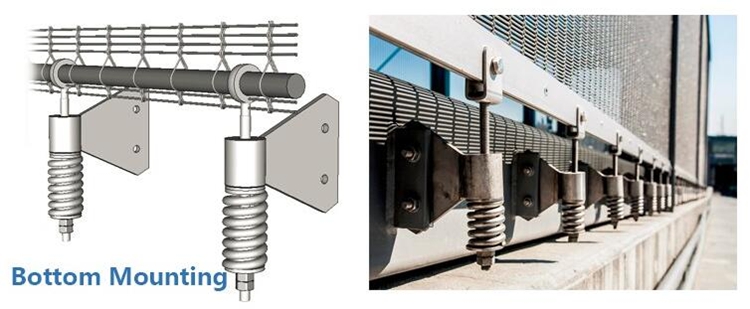

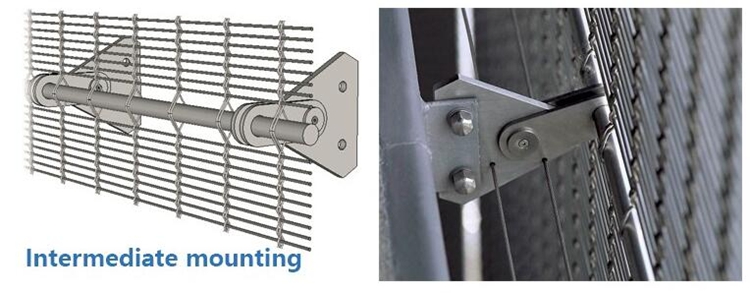

Installation
Advantage
Stainless steel cable decorative net metal mesh facades
1. Corrosion resistance,not subject to environmental restrictions.
2. Chic shape, bright and relaxed vision.
3. Convenient for packing and transporation.
4. With high flexibility,easy to install and design.
5. Wear resistance,always maintain a brand new feeling.
6. Low maintenance input costs.

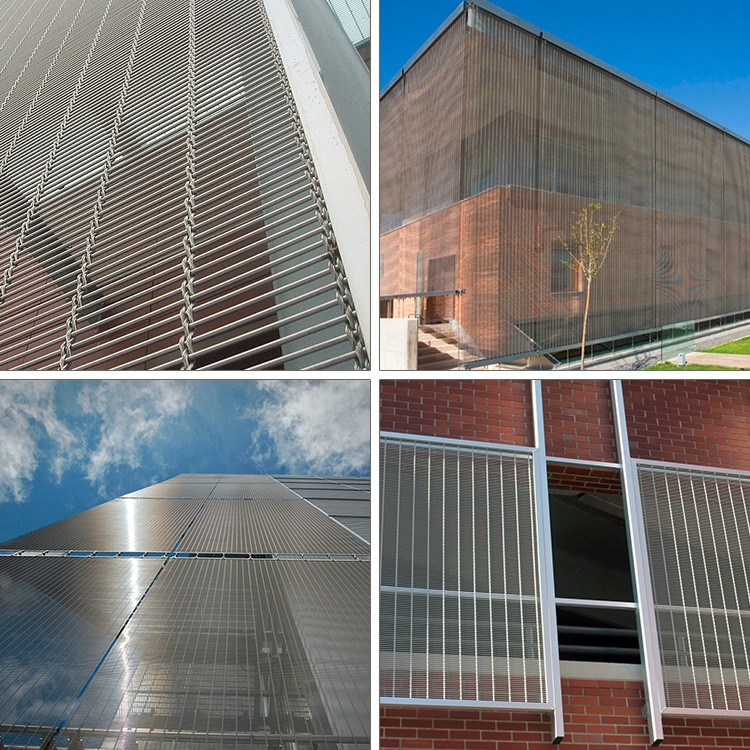

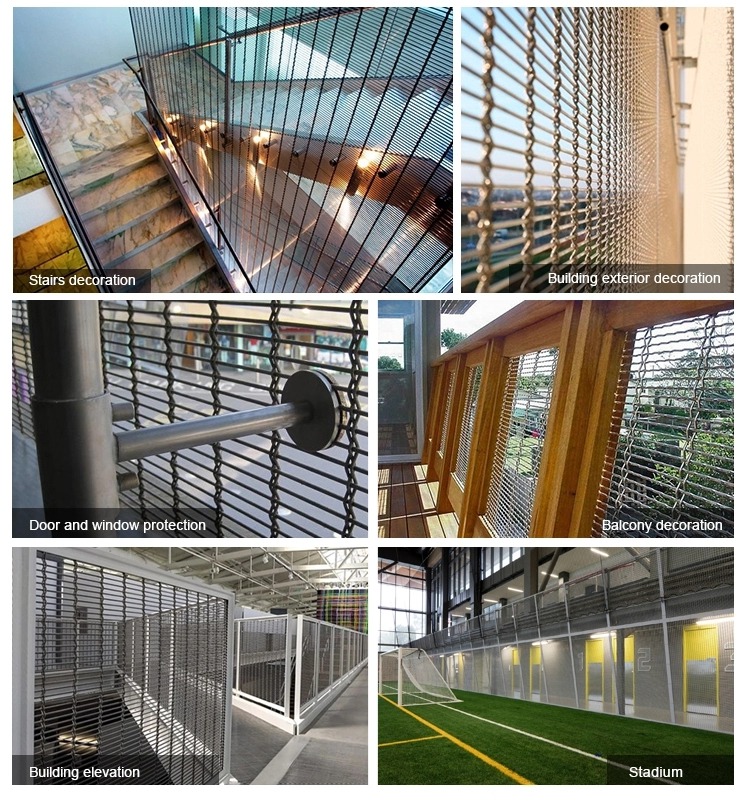

Application

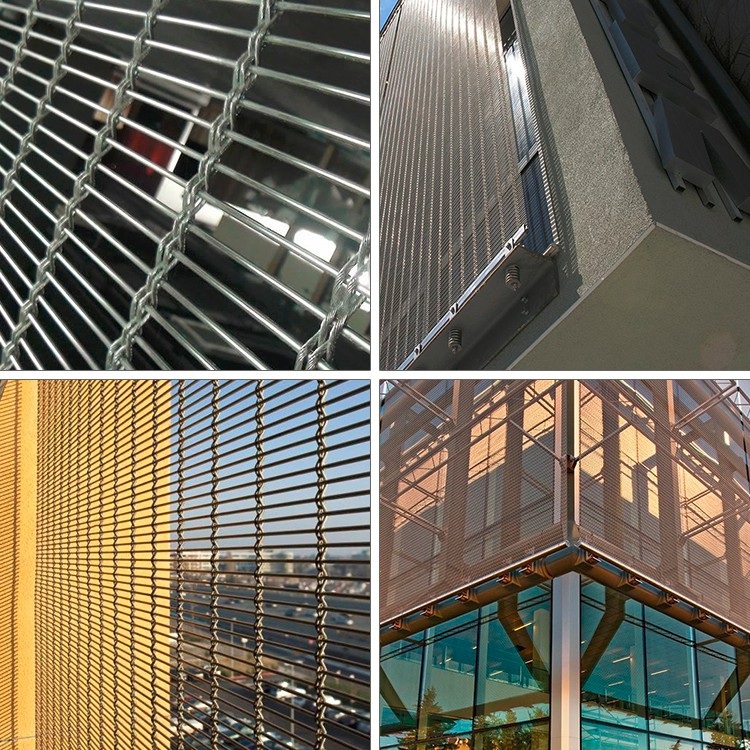

Stainless steel cable decorative net metal mesh facades is more and more popular in interior and exterior decorations.
• Space divider.
• Wall decoration.
• Ceiling decoration.
• Facade cladding.
• Glass laminated wire.
• Sunshade screen.
• Wire mesh facades.
• Shade screens.
• Architecture ceilings.
