Gabion Box are multiple twisted hexagonal woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms.
Gabion Basket Introduction
Gabion Box are multiple twisted hexagonal woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
Gabion Basket specification
Material: hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
Tensile strength: 350-500Mpa, Elongation ≥12%, according to EN10223-3
Zinc coating: mesh wire≥230g/M2, selvedge wire≥245g/M2, lacing wire ≥230g/M2
Opening: 6*8cm, 8x10cm, 10*12cm
Mesh wire: 2.2mm, 2.7mm, 3.0mm
| Gabion specifications | Mesh Aperture | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
| Length(m) | Width(m) | Height(m) | Volume(m³) |
| 2 | 1 | 0.5 | 1 |
| 4 | 1 | 0.5 | 2 |
| 6 | 2 | 0.5 | 6 |
| 1.5 | 1 | 1 | 1.5 |
| 1 | 1 | 1 | 1 |
| 2 | 1 | 1 | 2 |
| 3 | 1 | 1 | 3 |
| 4 | 1 | 1 | 4 |
| 2 | 0.5 | 0.5 | 0.5 |
| 4 | 0.5 | 0.5 | 1 |
Drawing of Gabion Basket
Assembly & Erection

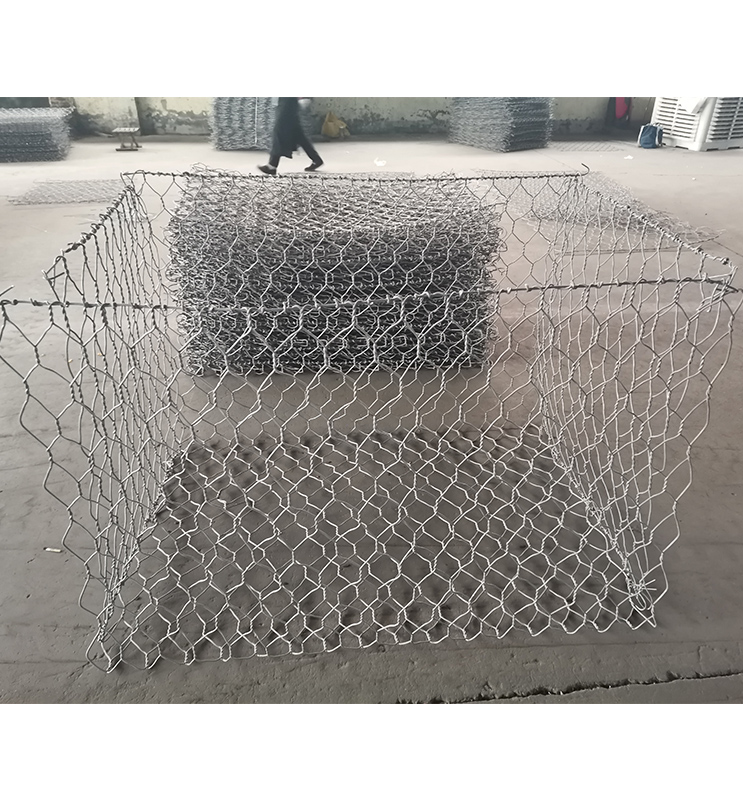

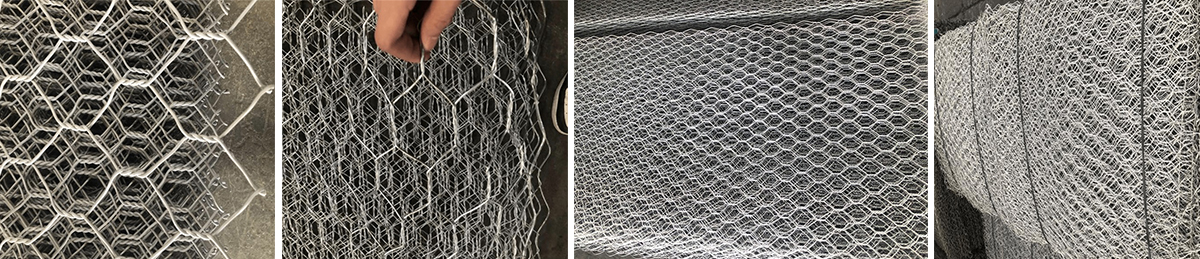

Gabion Basket Display

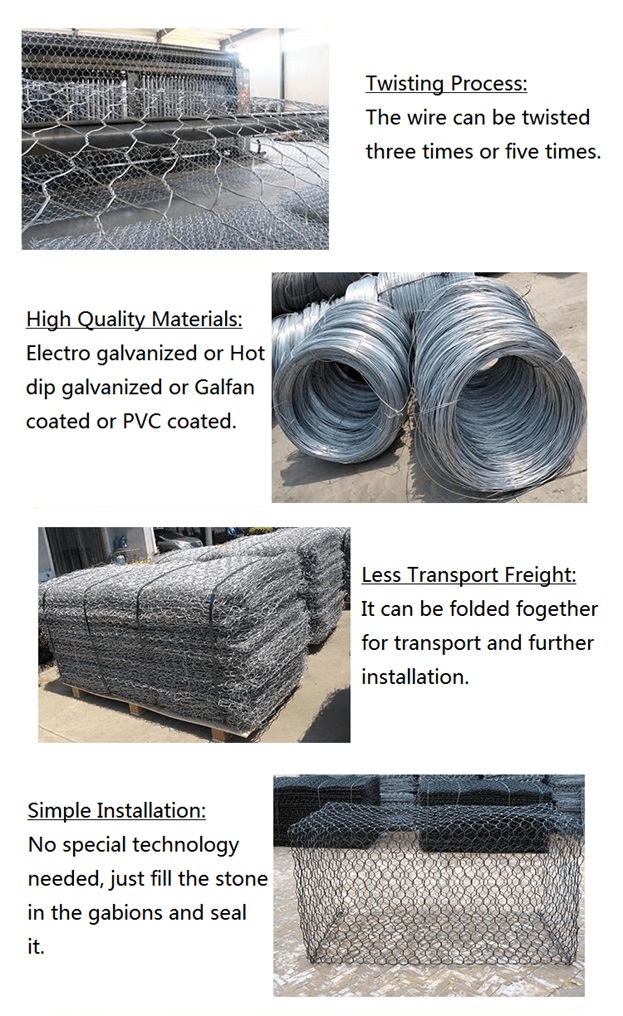

Gabion Basket Features
Production Process
Production Inspection

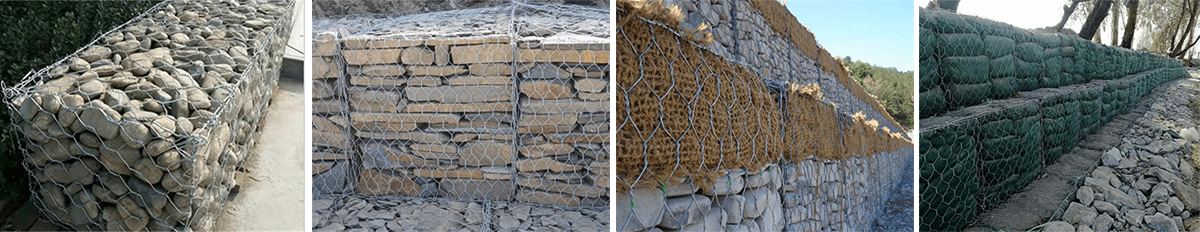

Production Application
Packing and Shipping
