Test Sieves
Test sieves are widely used in many fields for its different types and materials. Our test sieves is general used for food, paper, processing industry, stones and powders, research lab, construction and building industry, mining and the oil chemical and more industries

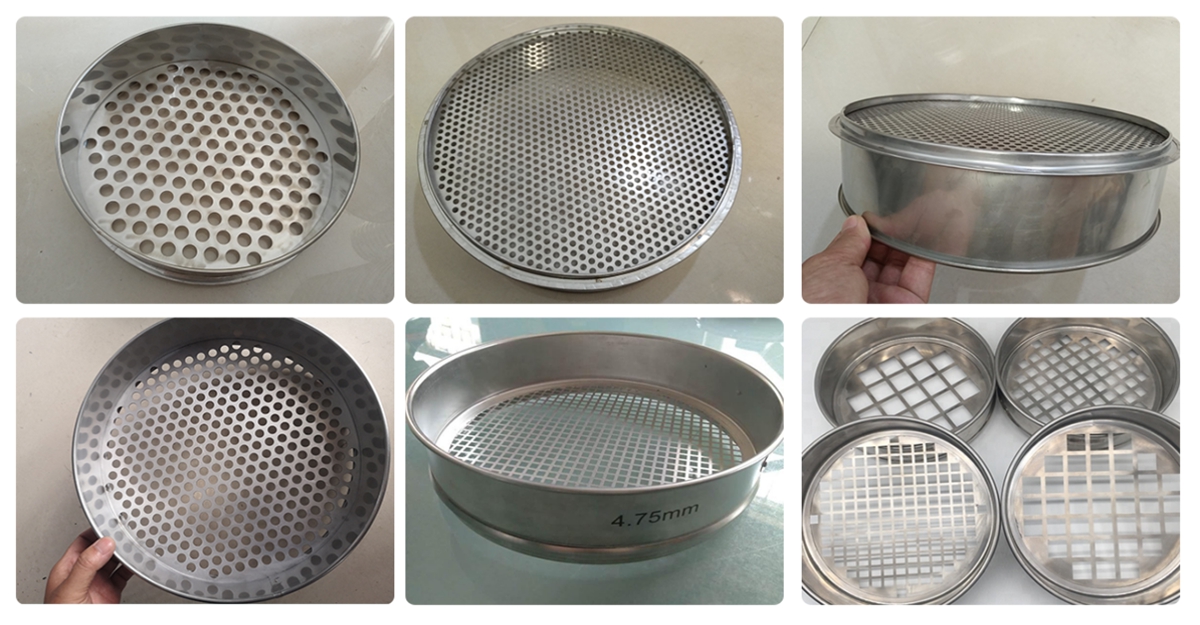

Perforated Test Sieves
Perforated plate sieves are available in diameter sizes of 200, 300, 315, 350, 400 and 450 mm. Aperture sizes range from 125 mm to 4 mm in square hole and 125 mm to 1 mm in round hole
| Sieve Specification | ||
| Material | Stainless Steel 304,galvanized, brass,etc. | |
| Technology | Punching/Perforated | |
| Standard | ISO3310-1 ASTM | |
| Sieve Diameter (mm) | 3'' / 6''/ 8'' / 10'' / Φ200/ Φ300/Φ315/Φ350/Φ400/Φ450, etc. | |
| Frame | Thickness | 0.6-0.7 mm |
| Height ( full ) | 1-3/4''--2-5/8'' | |
| Shape | Round | |
| Aperture Shape | Round, Square | |
| Aperture | 3mm-30mm | |

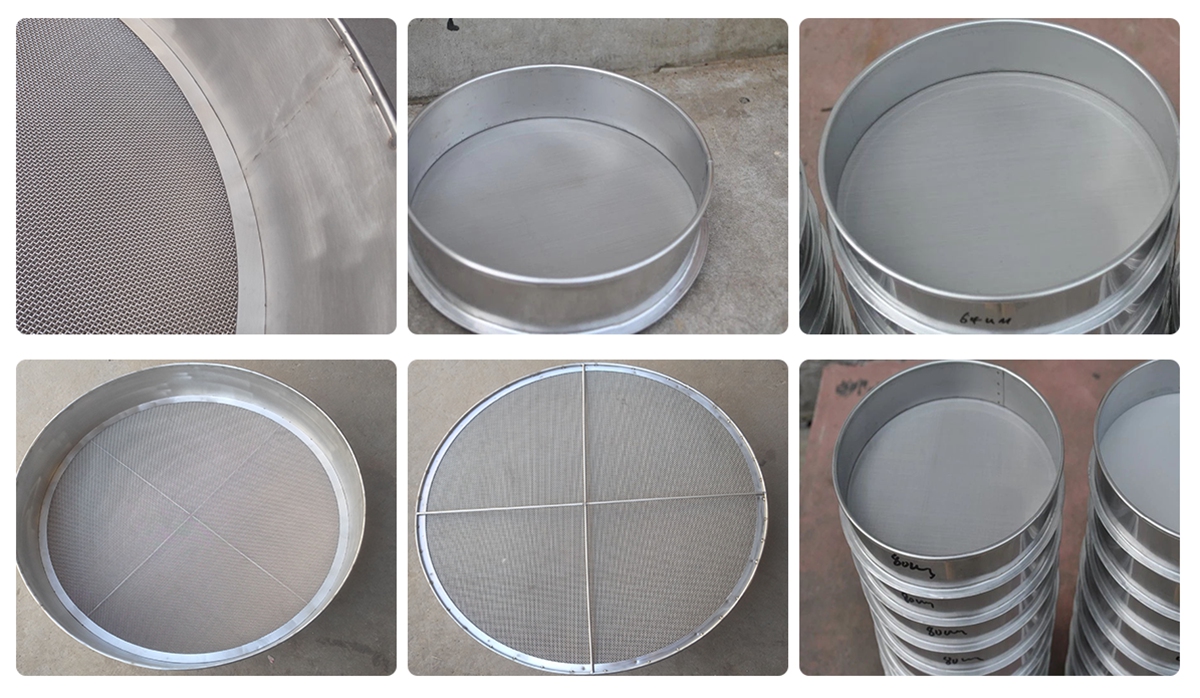

Woven Wire Mesh Test Sieves
Woven wire mesh sieves with precise opening are the most widely used test sieves for laboratory particle size analysis. Seamless frames ensure a precise fit and superior quality. They are made of the highest quality brass or stainless steel materials and are available in diameter sizes of 38, 100, 150, 200, 250, 300, 315, 350, 400 and 450 mm.
| Stainless Steel Sieve Specification | ||
| Sieve Material | Brass, AISI304/316/316L,galvanized,etc. | |
| Technology | Woven | |
| Standard | ASTM E11-09 ISO3310-1 | |
| Sieve Diameter | 3" 6" 8" 10" 12" 200mm 300mm | |
| Frame | Material | Brass, stainless steel, etc. |
| Height (full) | 1-3/4'' -- 2-5/8'' | |
| Aperture shape | Square | |
| Mesh opening / Aperture | 5--500mesh 10--200μm | |

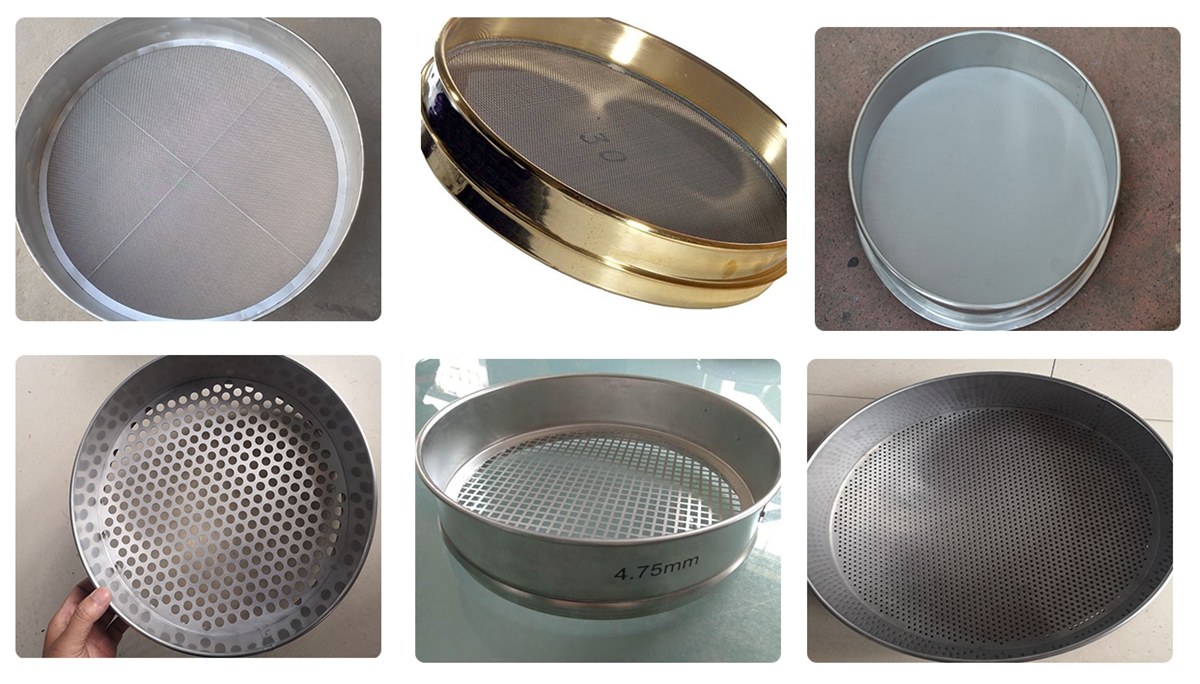

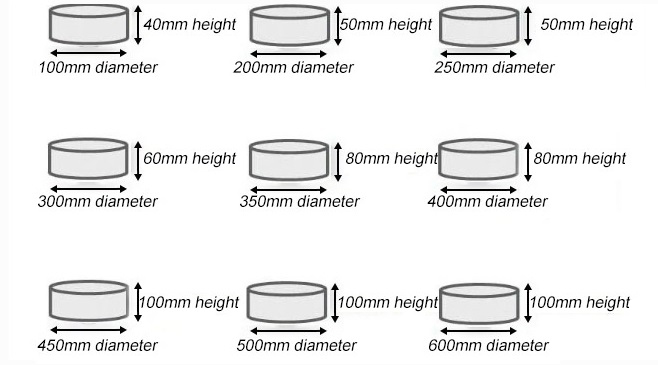

Test Sieves Normal Size

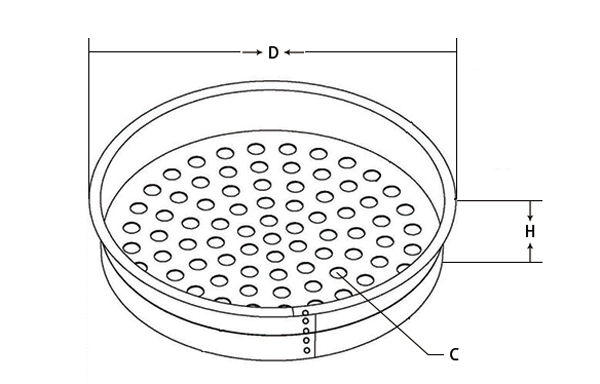

Test Sieves Simple Drawing
Quotation Parameters:
·Material
·Frame Thickness
·H-Height
·C-Diameter
·D-Diameter

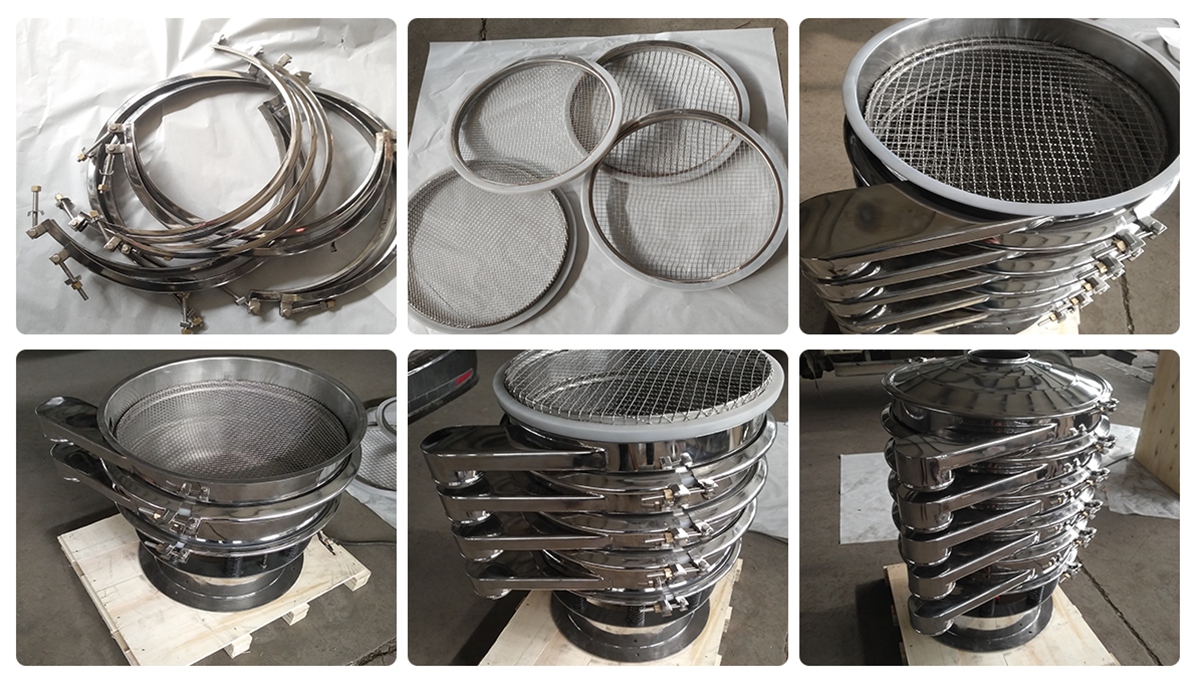

Sieve Shaker
Sieve shaker is a high efficiency instrument for sieving. It feature of high frequency makes it become an ideal choice for fine particle separation. The sieve shaker combines transverse and up-down and tilt motion to make the test material shake in the sieving orbital. This fast and effective movement utilizes the mesh area and ensures the sieving and separation of the test materials. In addition, see-through cylinder is helpful for observing.

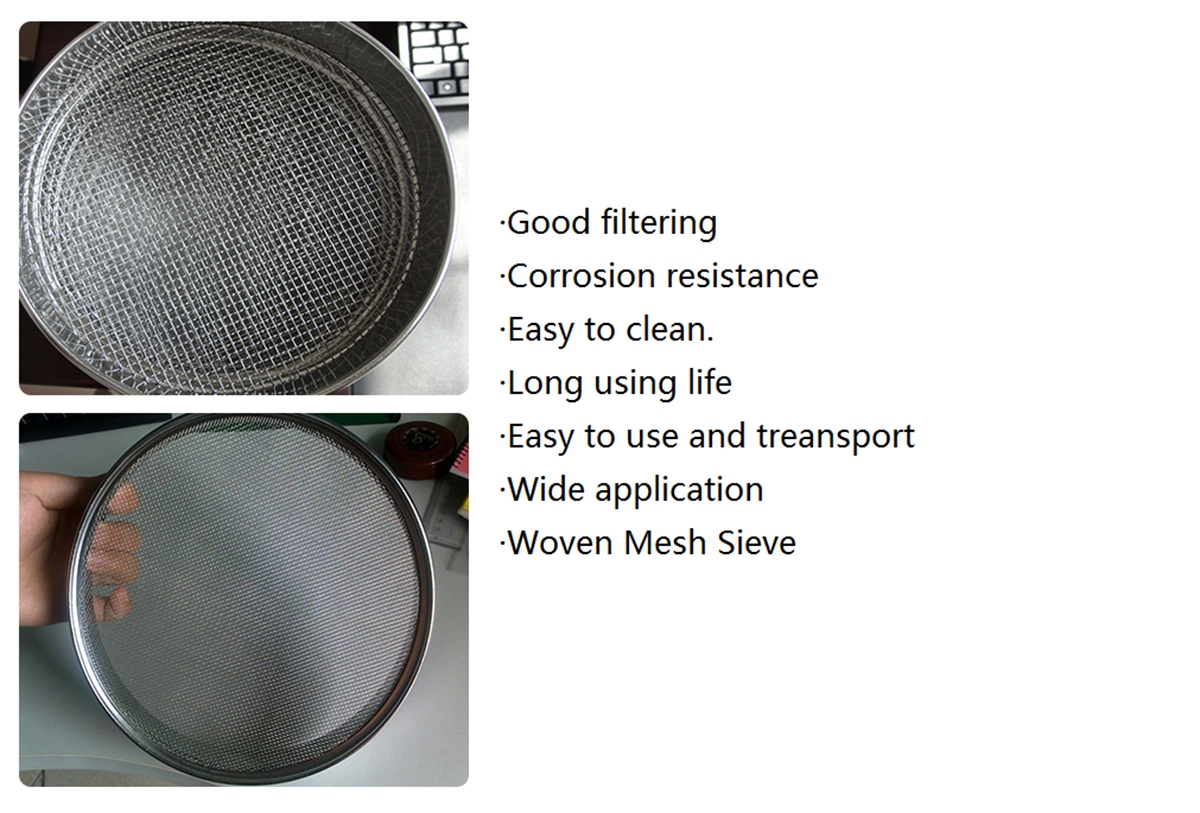

Test Sieves Features

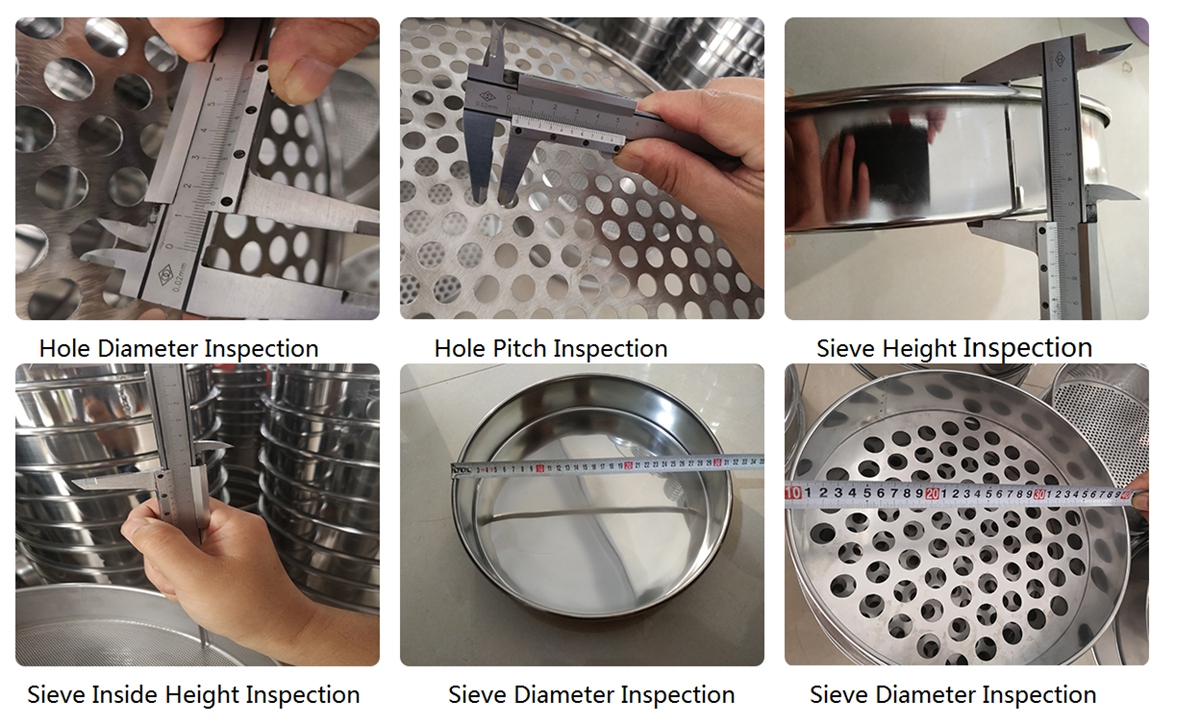

Test Sieves Inspection

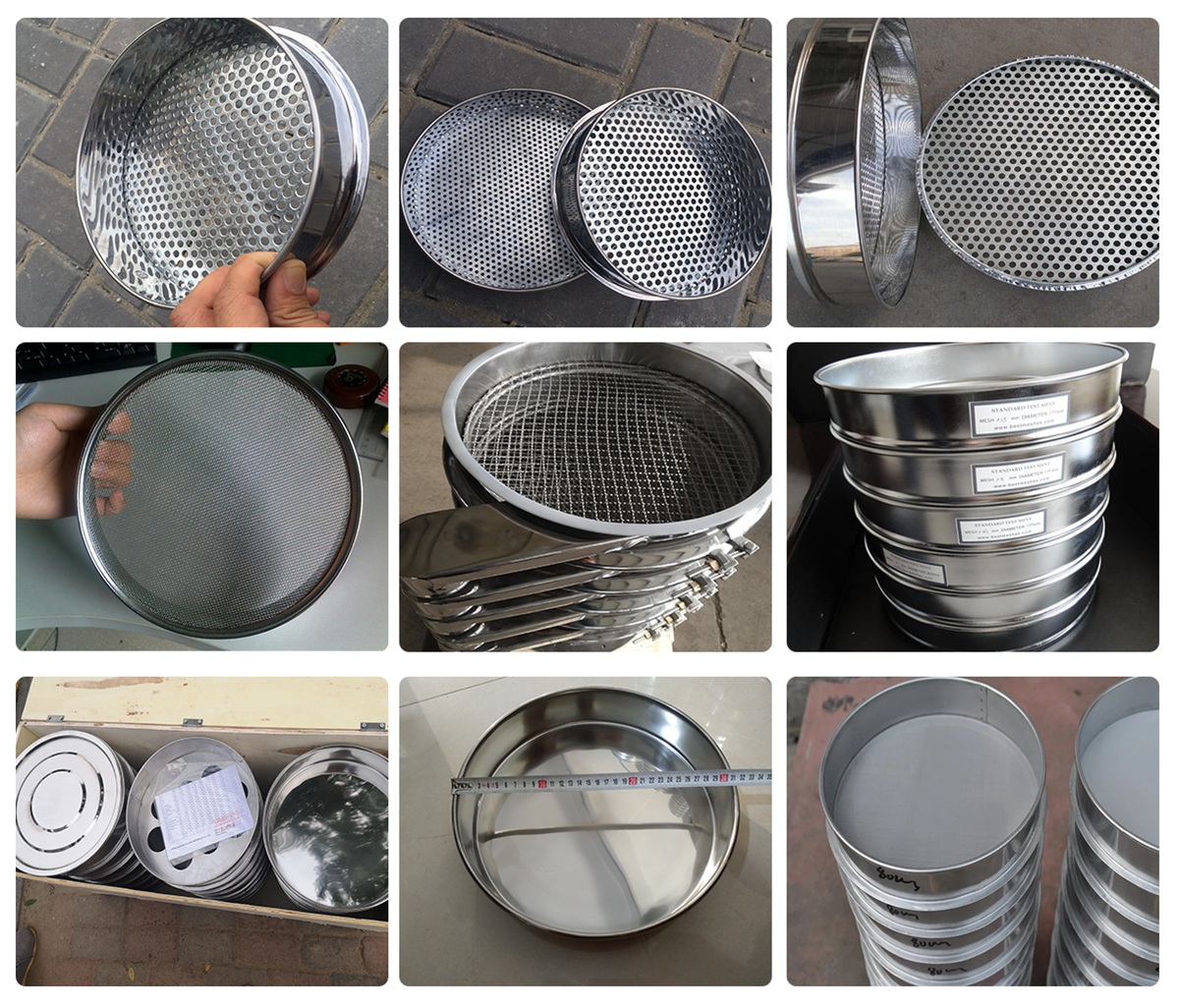

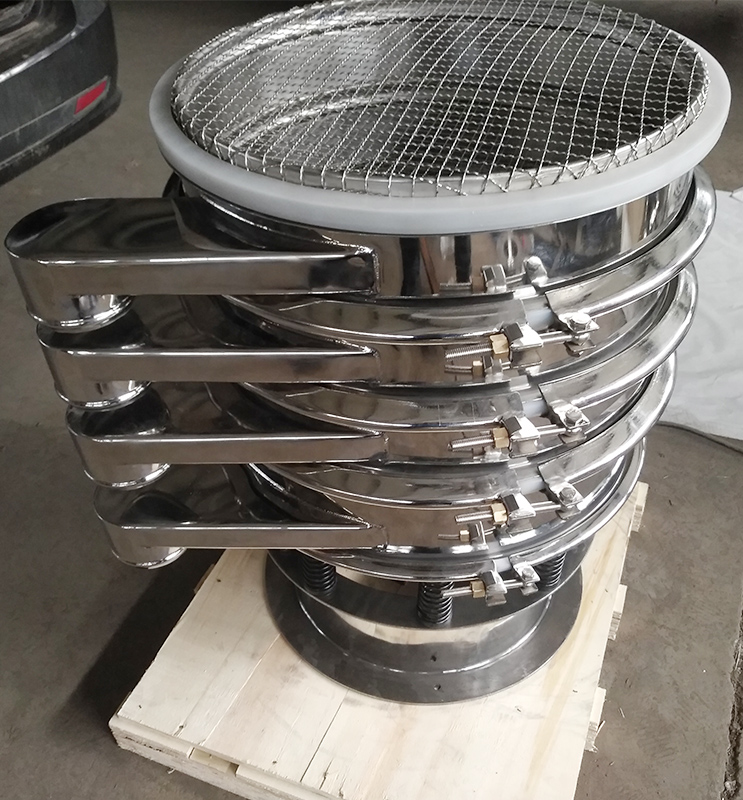

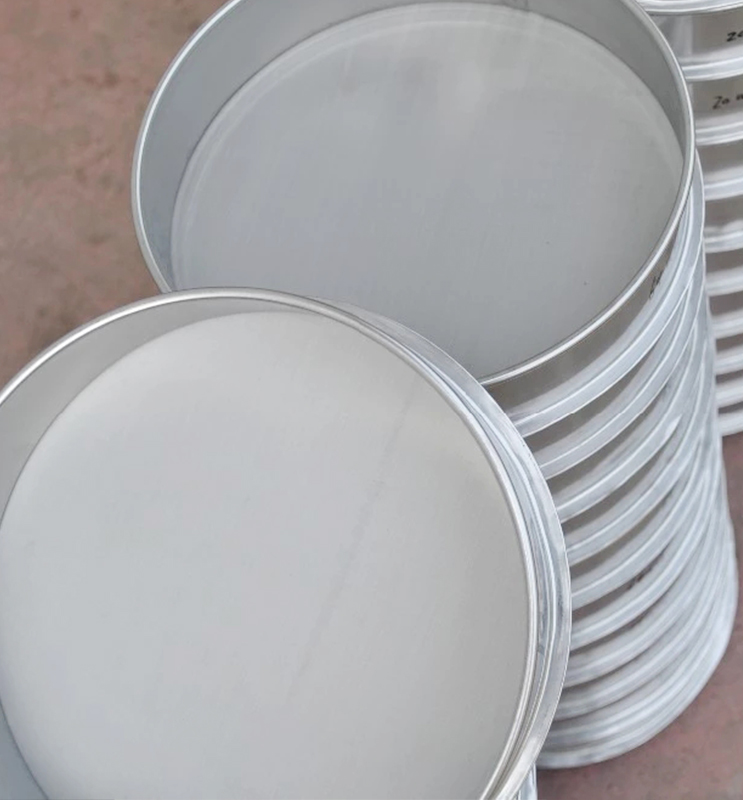

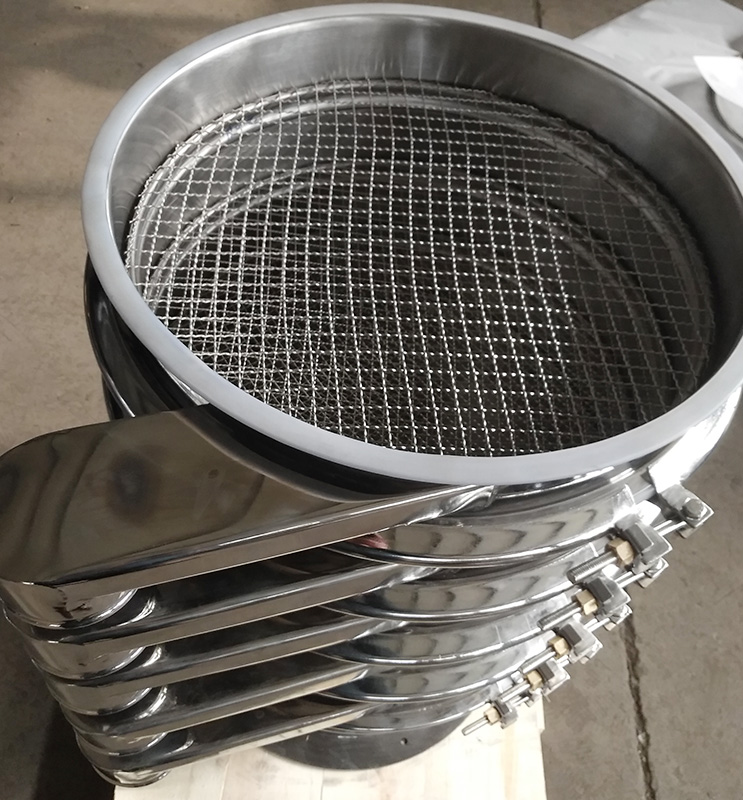

Test Sieves Show

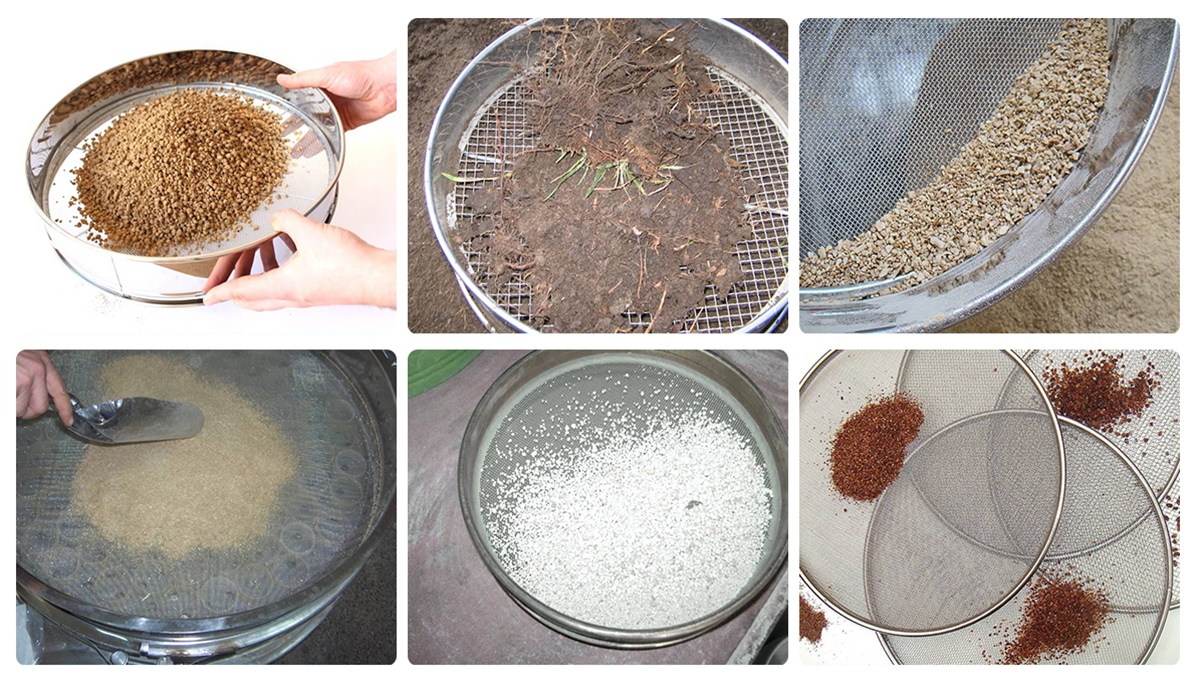

Test Sieves Application
The standard testing sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction etc departments.

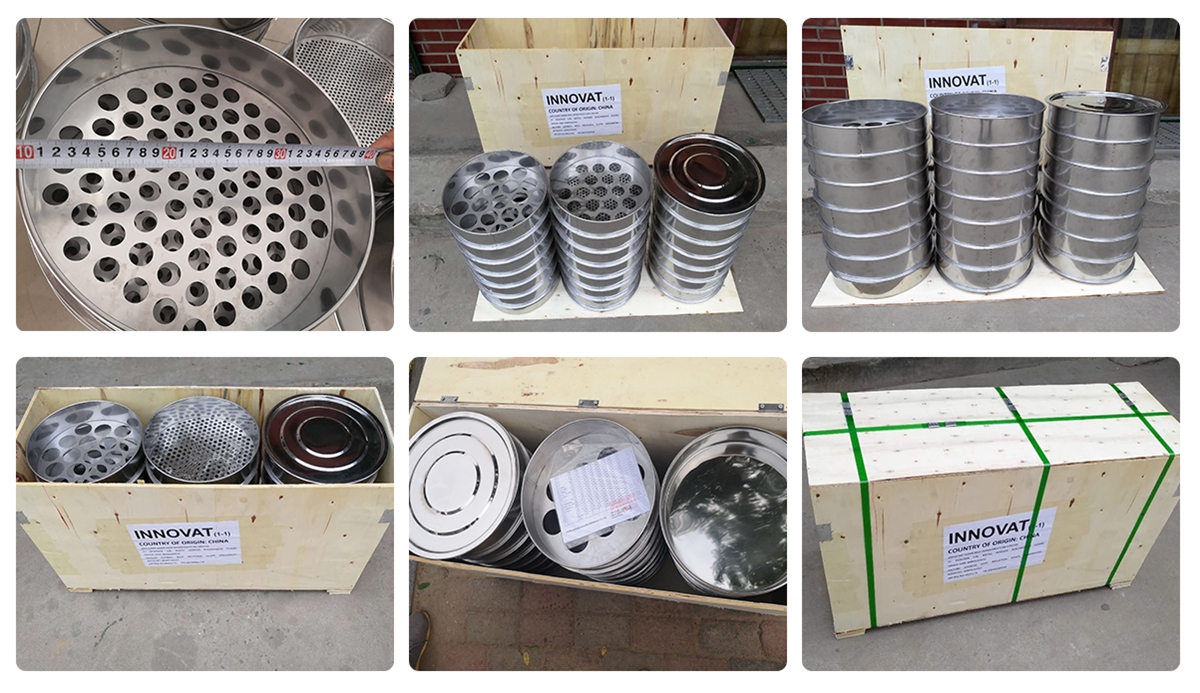

Test Sieves Package
