Eye Link Conveyor Belts, also named Wire Link Conveyor Belts, Eye-Flex Conveyor Belt, Wire Loop Belt. Eye link belts are produced of stainless steel or other alloys. They consist of a series of eye links or eye link modules.
Description
Eye Link Conveyor Belts, also named Wire Link Conveyor Belts, Eye-Flex Conveyor Belt, Wire Loop Belt. Eye link belts are produced of stainless steel or other alloys. They consist of a series of eye links or eye link modules. Joined with cross rods they form a flat, simple surface, which is extremely stable and durable. The qualities of this versatile conveyor belt form a combination of advantages that make it particularly suitable for the most demanding applications in the food, chemical, pharmaceutical and packaging industries.
Specification
| Materials: | SS 304, SS 316. |
| Diameter of wire links: | 1.2 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm. |
| Chain pitch: | 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. |
| Rod diameter: | 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm. |
| Spiral pitch: | 2.4 mm to 100 mm. |
| Rod pitch: | 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. |
| Belt width: | 200 mm to 6,000 mm. |
| Belt length: | any desired length. |
| Belt gap: | 2 mm to 50 mm. |
| Open area: | 20% to 90%. |
| Standards: | complying with FDA, GMP, 1935/2004/EC or other standards as your request. |
| Type: | Eye flex conveyor belt ECB Without spacersEye flex conveyor belt EBUW With under welded wire spacingEye flex conveyor belt EBRS With rings as spacersEye flex conveyor belt EBSS With springs as spacers |
| Main specification of ECB conveyor belts | ||||
| Types | Belt pitch | Eye flex wire diameter | Cross rod diameter | Gap spacing (min) |
| ECB-1 | 0.98" | 0.08" | 0.2" | 0.08" |
| ECB-2 | 1.00" | 0.08" | 0.2" | 0.08" |
| ECB-3 | 1.18" | 0.06" | 0.16" | 0.06" |
| ECB-4 | 1.18" | 0.08" | 0.16" | 0.08" |
| ECB-5 | 1.18" | 0.08" | 0.2" | 0.08" |
| ECB-6 | 1.25" | 0.08" | 0.2" | 0.08" |
| ECB-7 | 1.97" | 0.06" | 0.2" | 0.06" |
| ECB-8 | 1.97" | 0.06" | 0.2" | 0.06" |
| ECB-9 | 1.97" | 0.08" | 0.2" | 0.08" |
| ECB-10 | 1.97" | 0.1" | 0.2" | 0.1" |
| ECB-11 | 1.97" | 0.1" | 0.24" | 0.1" |
| ECB-12 | 1.97" | 0.12" | 0.31" | 0.12" |
| ECB-13 | 2.00" | 0.06" | 0.2" | 0.06" |
| ECB-14 | 2.00" | 0.06" | 0.31" | 0.06" |
| ECB-15 | 2.00" | 0.08" | 0.24" | 0.08" |
| ECB-16 | 2.00" | 0.08" | 0.31" | 0.08" |
| ECB-17 | 2.00" | 0.10" | 0.24" | 0.10" |
| ECB-18 | 2.00" | 0.10" | 0.31" | 0.10" |
| ECB-19 | 2.00" | 0.12" | 0.31" | 0.12" |
| ECB-20 | 2.00" | 0.16" | 0.31" | 0.16" |
| ECB-21 | 2.36" | 0.08" | 0.2" | 0.08" |
| ECB-22 | 2.36" | 0.10" | 0.2" | 0.10" |
| ECB-23 | 2.76" | 0.16" | 0.28" | 0.16" |
| ECB-24 | 2.95" | 0.10" | 0.2" | 0.10" |
| ECB-25 | 2.95" | 0.10" | 0.31" | 0.10" |
| ECB-26 | 3.94" | 0.12" | 0.31" | 0.12" |
| Main specification of EBUW conveyor belts | ||||
| Types | Belt pitch | Eye flex wire diameter | Cross rod diameter | Gap spacing (min) |
| EBUW-1 | 0.98" | 0.08" | 0.2" | 0.2" |
| EBUW-2 | 1.00" | 0.08" | 0.2" | 0.2" |
| EBUW-3 | 1.18" | 0.08" | 0.16" | 0.16" |
| EBUW-4 | 1.18" | 0.08" | 0.2" | 0.2" |
| EBUW-5 | 1.97" | 0.08" | 0.2" | 0.2" |
| EBUW-6 | 1.97" | 0.1" | 0.2" | 0.24" |
| EBUW-7 | 1.97" | 0.1" | 0.24" | 0.31" |
| EBUW-8 | 2.00" | 0.10" | 0.31" | 0.31" |
| EBUW-9 | 2.00" | 0.12" | 0.31" | 0.31" |
| EBUW-10 | 2.95" | 0.10" | 0.2" | 0.20" |
| EBUW-11 | 2.95" | 0.10" | 0.31" | 0.31" |
| Main specification of EBRS conveyor belts | ||||
| Types | Belt pitch | Eye flex wire diameter | Cross rod diameter | Gap spacing (min) |
| EBRS-1 | 0.98" | 0.08" | 0.2" | 0.08" |
| EBRS-2 | 1.00" | 0.08" | 0.2" | 0.08" |
| EBRS-3 | 1.18" | 0.08" | 0.16" | 0.08" |
| EBRS-4 | 1.18" | 0.08" | 0.2" | 0.08" |
| EBRS-5 | 1.25" | 0.08" | 0.2" | 0.08" |
| EBRS-6 | 1.97" | 0.08" | 0.2" | 0.08" |
| EBRS-7 | 1.97" | 0.1" | 0.2" | 0.1" |
| EBRS-8 | 1.97" | 0.1" | 0.24" | 0.1" |
| EBRS-9 | 2.00" | 0.1" | 0.24" | 0.1" |
| EBRS-10 | 2.00" | 0.1" | 0.31" | 0.1" |
| EBRS-11 | 2.00" | 0.16" | 0.31" | 0.16" |
| EBRS-12 | 2.36" | 0.08" | 0.2" | 0.08" |
| EBRS-13 | 2.36" | 0.1" | 0.2" | 0.1" |
| EBRS-14 | 2.95" | 0.1" | 0.2" | 0.1" |
| EBRS-15 | 2.95" | 0.1" | 0.31" | 0.1" |
| Main specification of EBSS conveyor belts | ||||
| Types | Belt pitch | Eye flex wire diameter | Cross rod diameter | Gap spacing (min) |
| EBSS-1 | 0.98" | 0.08" | 0.2" | 0.28" to 0.79" |
| EBSS-2 | 1.00" | 0.08" | 0.2" | 0.28" to 0.79" |
| EBSS-3 | 1.18" | 0.08" | 0.16" | 0.28" to 0.79" |
| EBSS-4 | 1.18" | 0.08" | 0.2" | 0.28" to 0.79" |
| EBSS-5 | 1.25" | 0.08" | 0.2" | 0.28" to 0.79" |
| EBSS-6 | 1.97" | 0.08" | 0.2" | 0.28" to 0.79" |
| EBSS-7 | 1.97" | 0.1" | 0.2" | 0.30" to 0.79" |
| EBSS-8 | 1.97" | 0.1" | 0.24" | 0.30" to 0.79" |
| EBSS-9 | 1.97" | 0.12" | 0.31" | 0.41" to 0.79" |
| EBSS-10 | 2.00" | 0.08" | 0.24" | 0.28" to 0.79" |
| EBSS-11 | 2.00" | 0.08" | 0.31" | 0.31" to 0.79" |
| EBSS-12 | 2.00" | 0.10" | 0.24" | 0.30" to 0.79" |
| EBSS-13 | 2.00" | 0.10" | 0.31" | 0.39" to 0.79" |
| EBSS-14 | 2.00" | 0.12" | 0.31" | 0.41" to 0.79" |
| EBSS-15 | 2.00" | 0.16" | 0.31" | 0.47" to 0.79" |
| EBSS-16 | 2.36" | 0.08" | 0.2" | 0.28" to 0.79" |
| EBSS-17 | 2.36" | 0.10" | 0.2" | 0.30" to 0.79" |
| EBSS-18 | 2.76" | 0.16" | 0.28" | 0.47" to 0.79" |
| EBSS-19 | 2.95" | 0.10" | 0.2" | 0.30" to 0.79" |
| EBSS-20 | 2.95" | 0.10" | 0.31" | 0.39" to 0.79" |
| EBSS-21 | 3.94" | 0.12" | 0.31" | 0.41" to 0.79" |
Features
Flat conveying surface, open mesh configuration, and ease of cleaning
Completely customizable with features including side guards, chain drive, and flights
High-temperature capability and a wide variety of steel specifications available
Smooth and single-level surface without product entrapment
Toughest conveyor belt available
Excellent air and fluid drainage
High strength and excellent carrying ability
Flat surface profile
Modular design

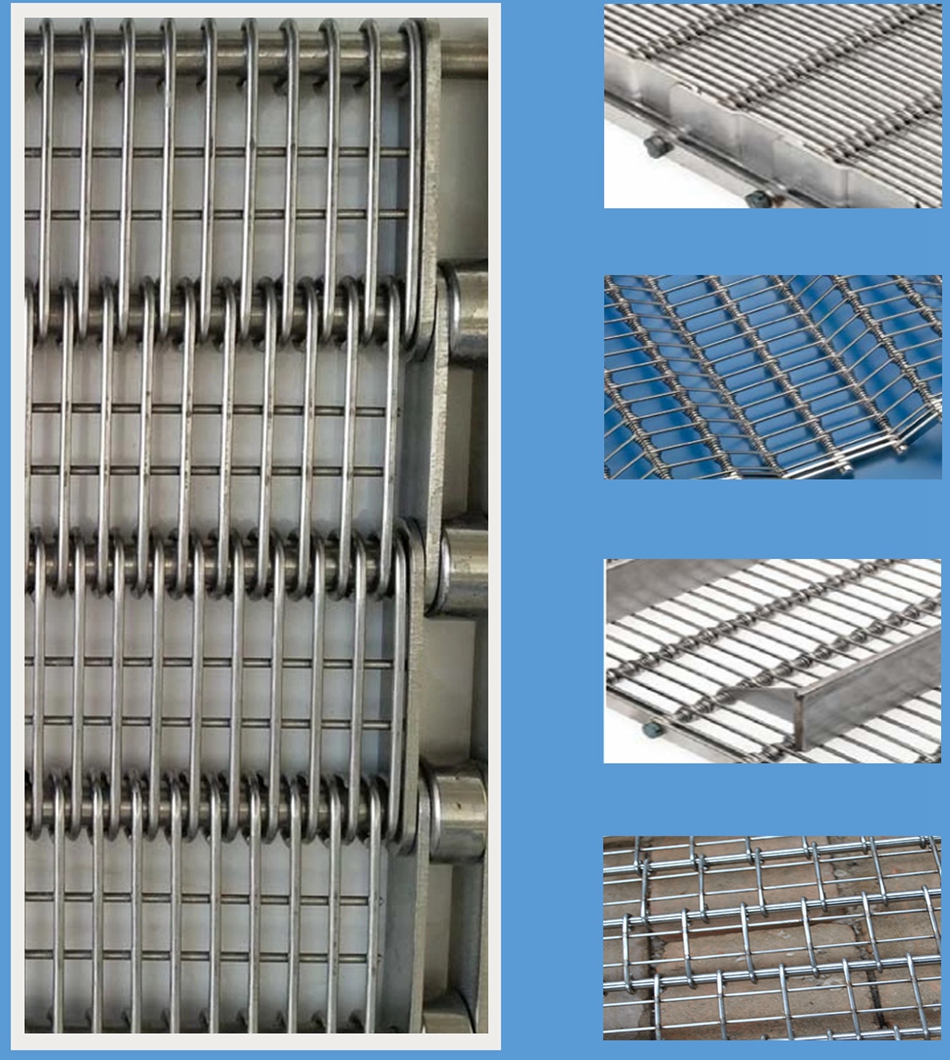

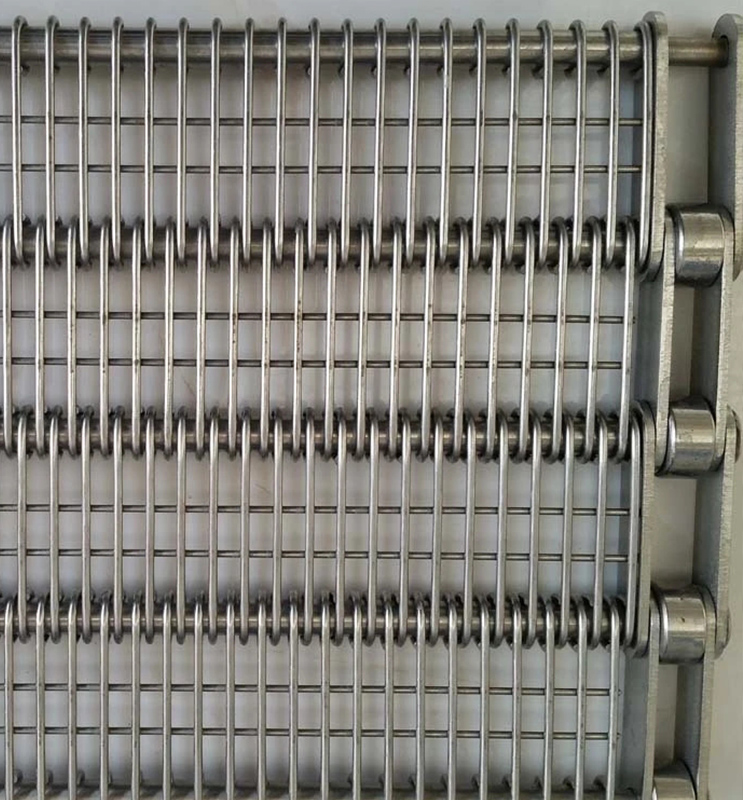

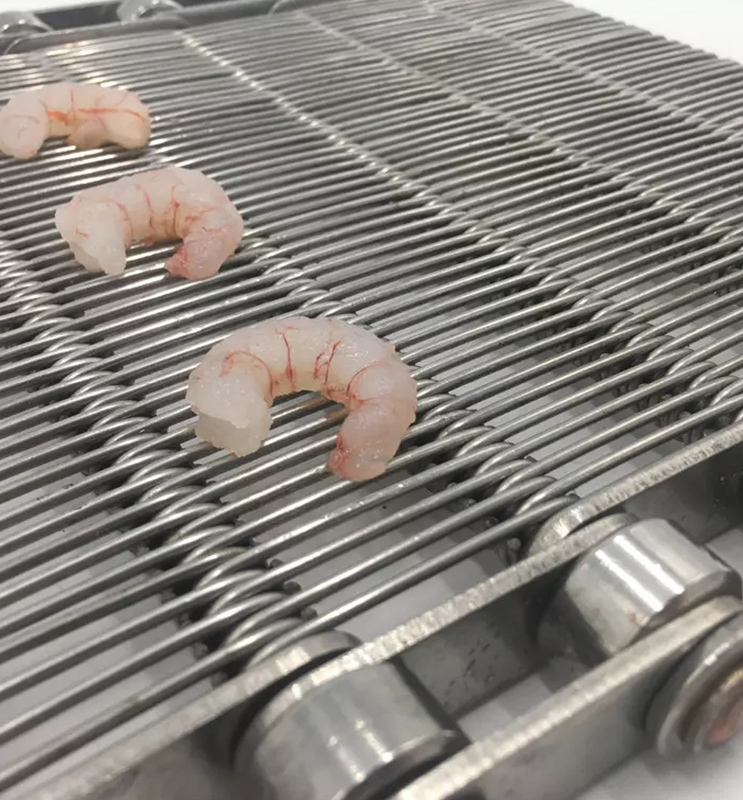

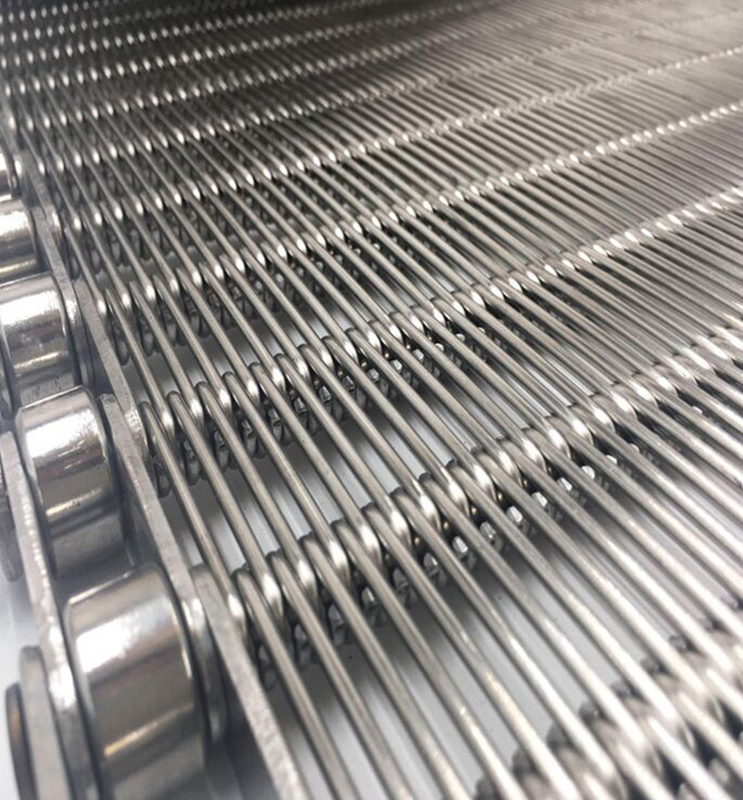

Details

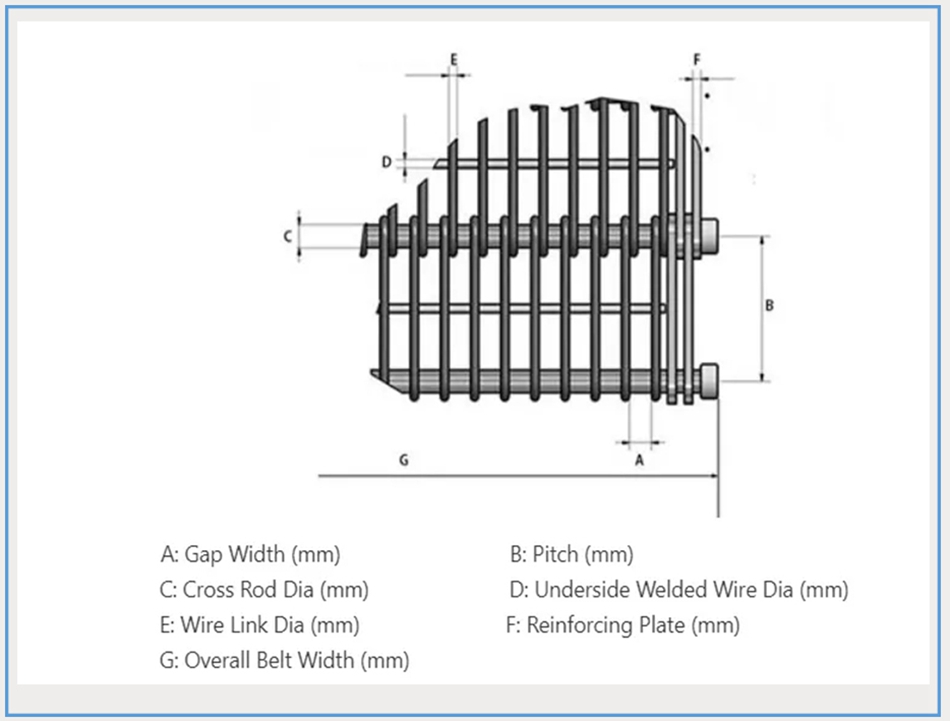

Drawing

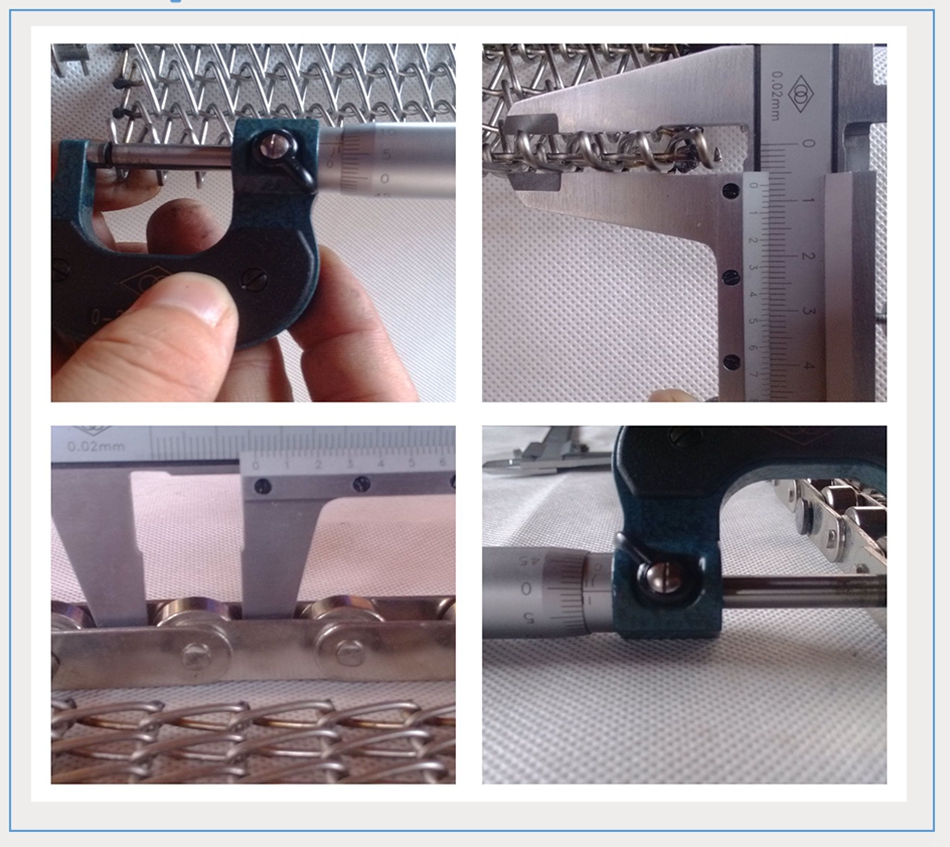

Inspection
Packing

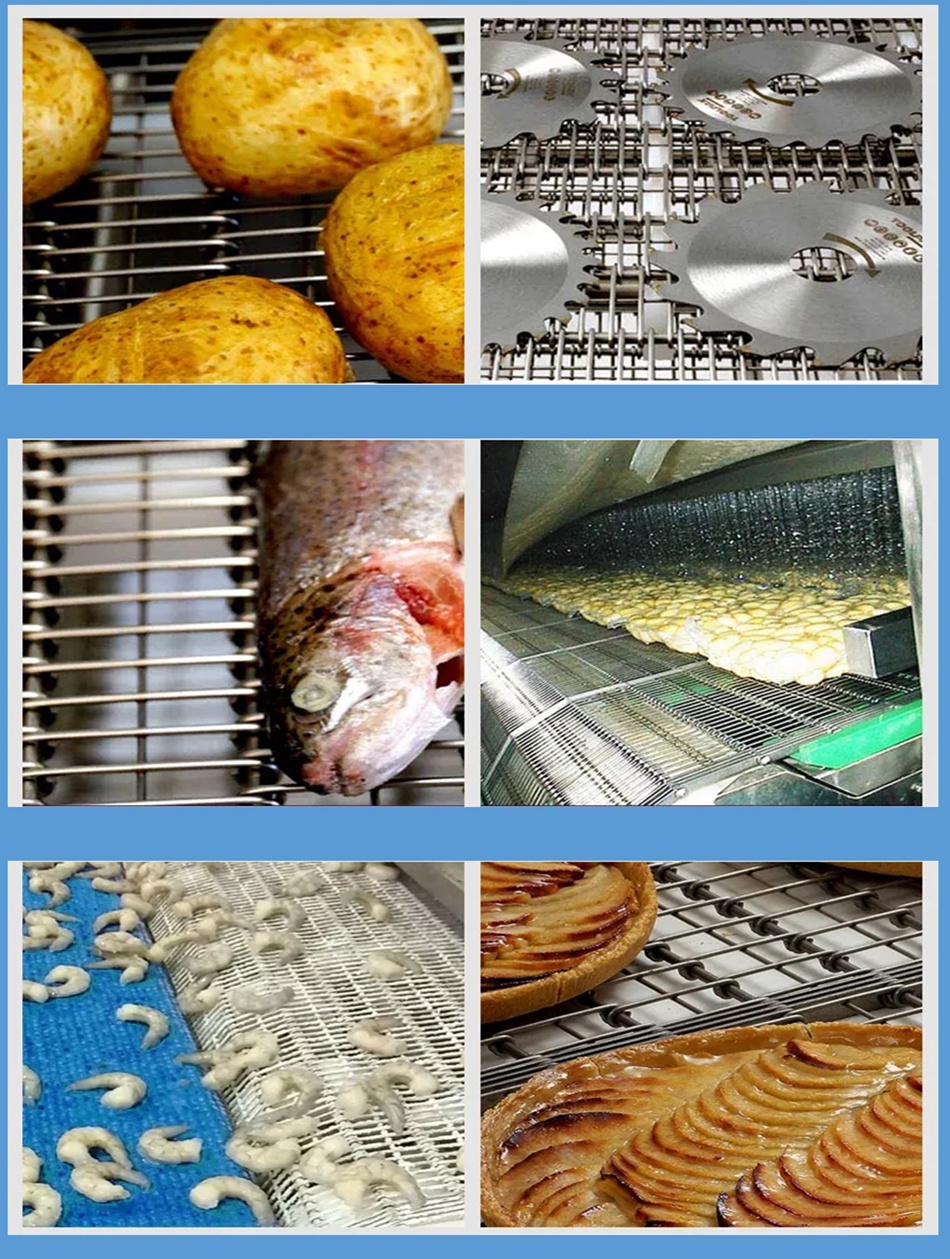

Application
