Heavy duty Crimped wire mesh/Vibrating Screen Wire Mesh/65Mn Screen Mesh/Crusher screen wire mesh/SAND CRUSHER SIEVE VIBRATING SCREEN MESH are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).
Product Introduction
Heavy duty Crimped wire mesh/Vibrating Screen Wire Mesh/65Mn Screen Mesh/Crusher screen wire mesh/SAND CRUSHER SIEVE VIBRATING SCREEN MESH are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).
Product Name: crimped wire mesh, Square wire mesh, quarry screen mesh, mining screen wire mesh
Material: mild steel/low carbon steel, carbon iron wire, 65Mn steel wire.
Wire diameter: 0.5-22mm
Hole size: 1-100mm or as your requested
Width: 0.5-1.5m
Length: 1-30m or as your requested
| Name | Crimped wire mesh/Vibrating Screen Wire Mesh/65Mn Screen Mesh |
| High carbon steel: | 65Mn,45#,50#,55#,60#,70#,,72A |
| Wire diameter | 0.5mm-22mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm . |
| Aperture/Opening | 1mm to 100mm,tolerance +-3% |
Vibrating Wire Mesh In Different Grades
| No. | Steel Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |

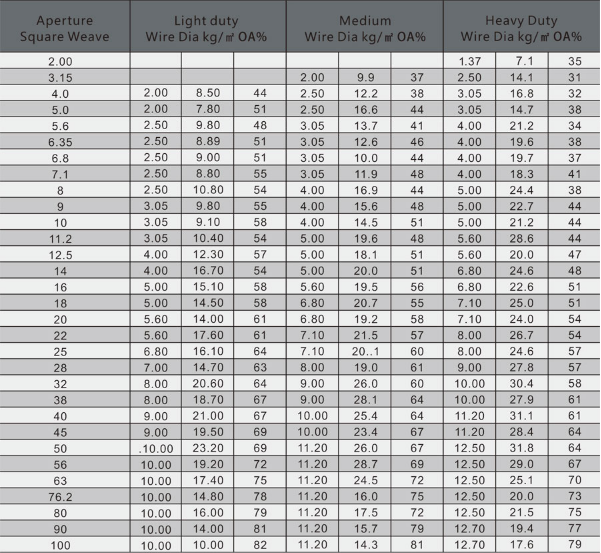

Vibrating Wire Mesh Normal Specifications

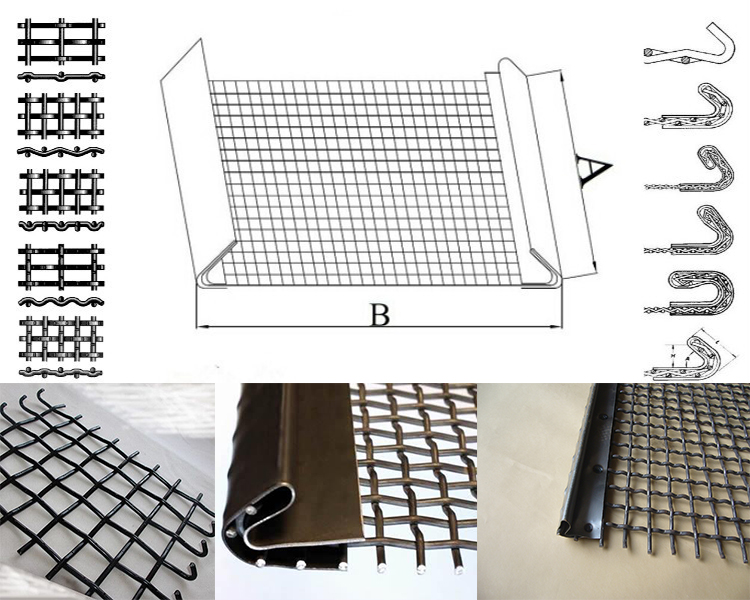

Weaving and Edge Types

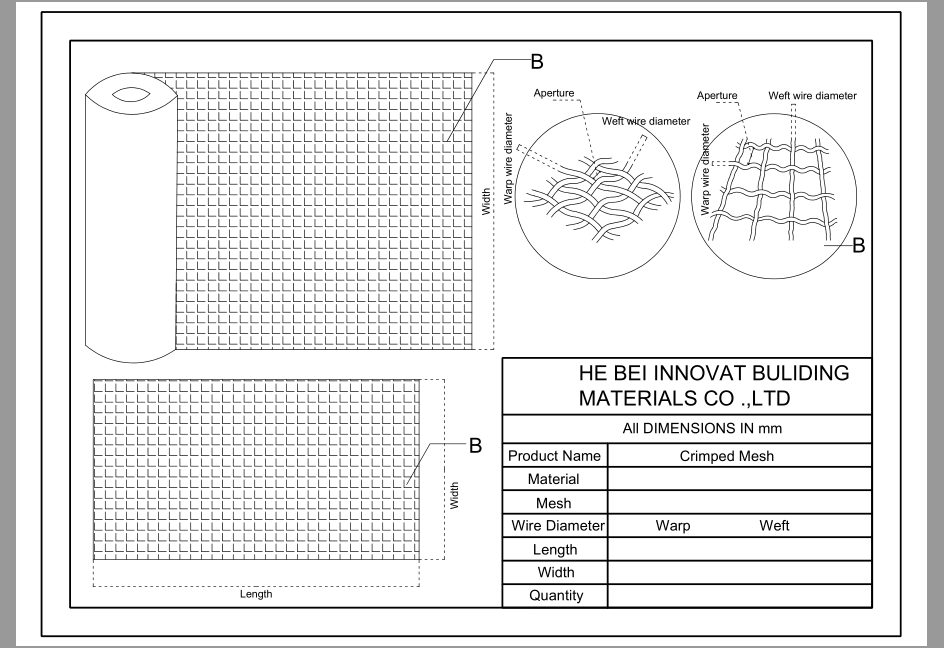

Brief Drawing
Product Inspection

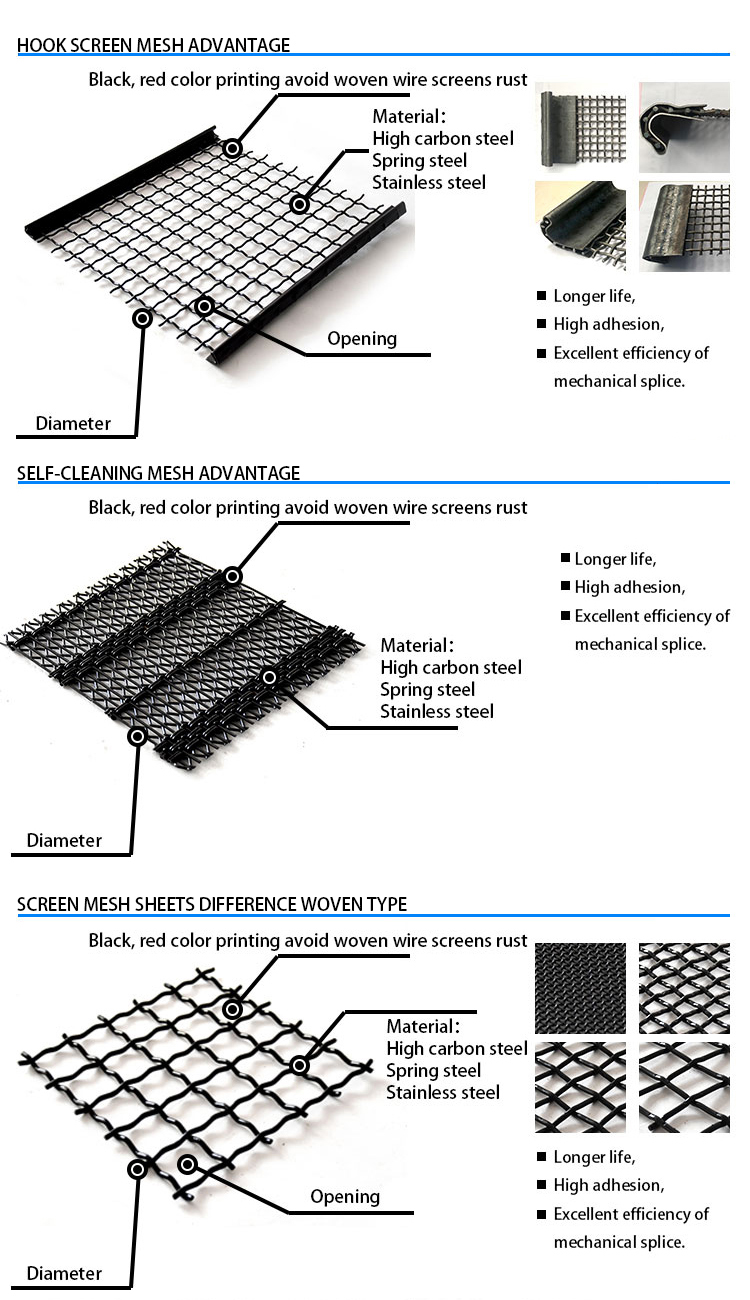

Product Advantages

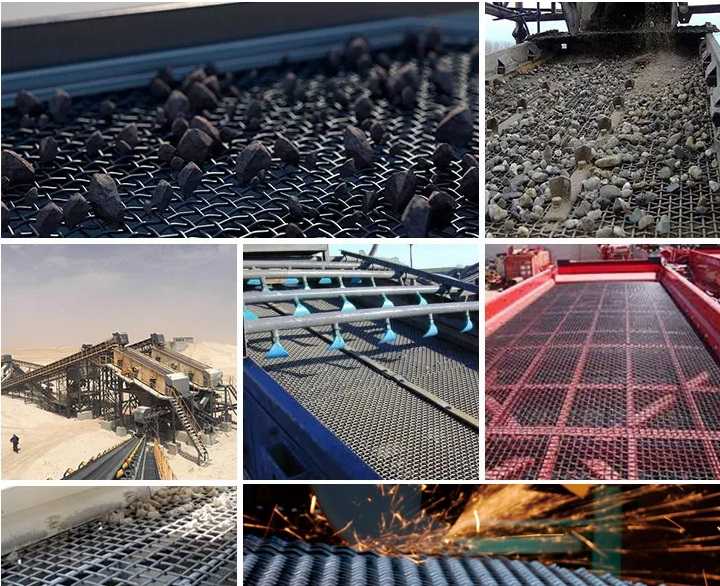

Product Application
Package & Shipment
