Steel fibers today offer the designer and constructer state-of-the-art technology for use as reinforcement in many concrete elements and applications. There are many varieties of styles, shapes and sizes of steel fibers in the market today.
Description
Steel fibers today offer the designer and constructer state-of-the-art technology for use as reinforcement in many concrete elements and applications. There are many varieties of styles, shapes and sizes of steel fibers in the market today.
Introducing steel fibers into the concrete mix provide new mechanical properties. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb.
Increase and get a stable of tensile strength under flexion load, which produces a ductile behavior
Increase impact resistance
Increase cyclic loads of resistance (fatigue effect)
Increase prevention of the plastic shrinkage crack
Increase the concrete performance against thermal variations
Get minor permeability
Specification
| Product name | Steel fiber |
| Material | Q195/Q235/Stainless Steel/Low carbon steel/Copper coated/Galvanised |
| Types by craft | Melt extracted steel fiber/cold draw steel fiber / cut sheet/other fibers |
| Types by shape | Glued hooked end/loose hooked end/micro copper coated/Flat crimped/Crimped steel fiber /Courrugrated Fibers etc. |
| Standard | ASTM A820/GB/T 39147-2020/ YB/T151-1999; JG/T3064-1999 |
| Usage | Tunneling/Industrial flooring/Airport pavements/Precast/Pre-compressed concrete |
| Diameter | 0.5-1.0mm |
| Length | 30-60mm |
| Diameter | Length | L/D ratio | TS | Package |
| 0.50mm | 30mm | 60 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.55mm | 30mm | 55 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.50mm | 35mm | 70 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.55mm | 35mm | 64 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.75mm | 50mm | 67 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.75mm | 60mm | 80 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.90mm | 50mm | 56 | >1150MPa | 20kg/bag,1ton/pallet |
| 0.90mm | 60mm | 67 | >1150MPa | 20kg/bag,1ton/pallet |
| 1.00mm | 50mm | 50 | >1150MPa | 20kg/bag,1ton/pallet |

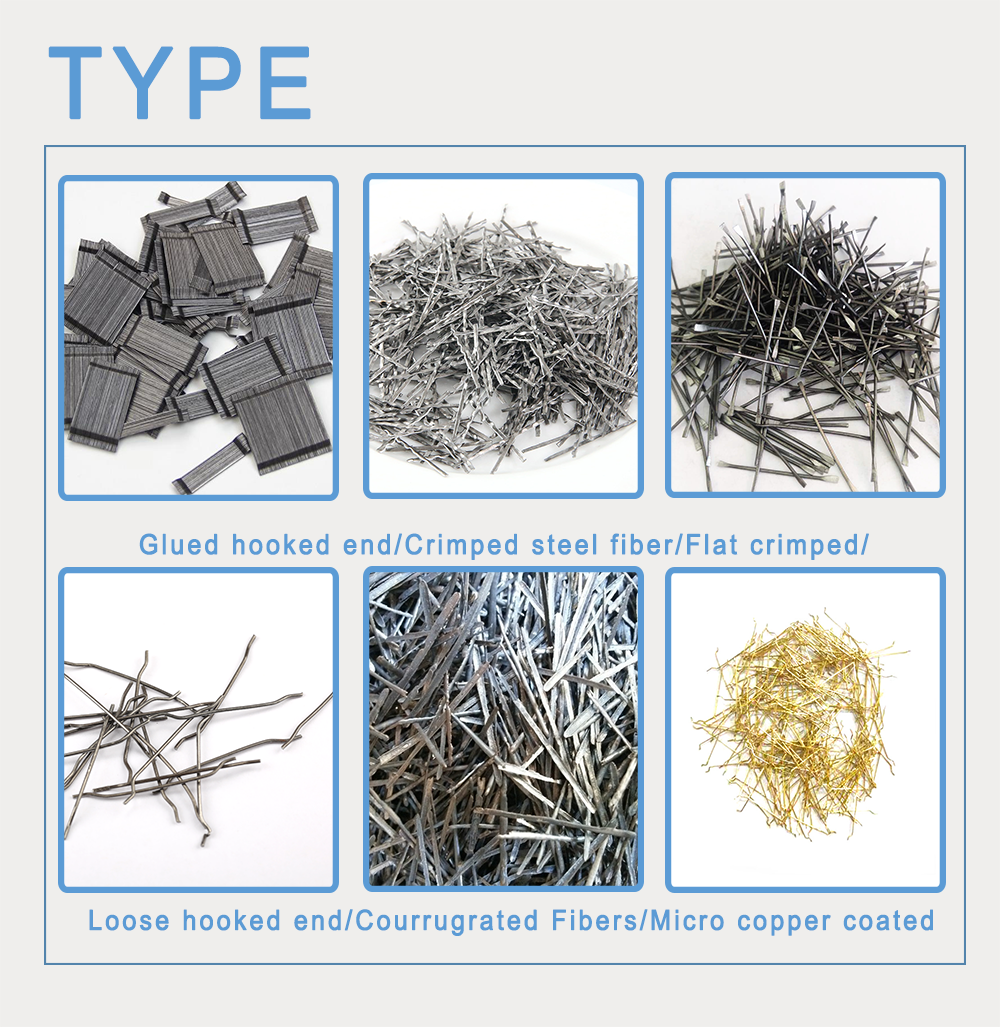

Type

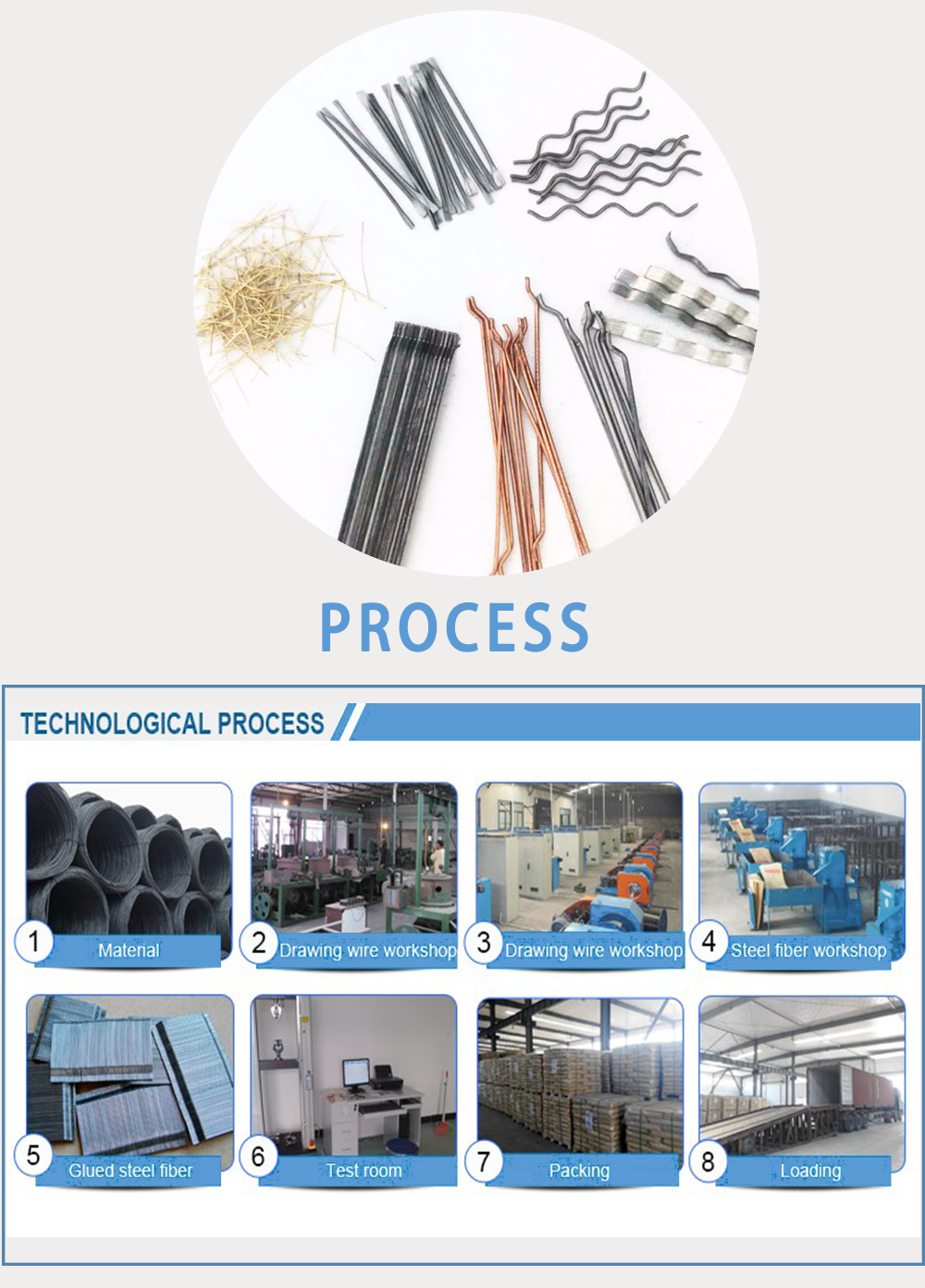

Process

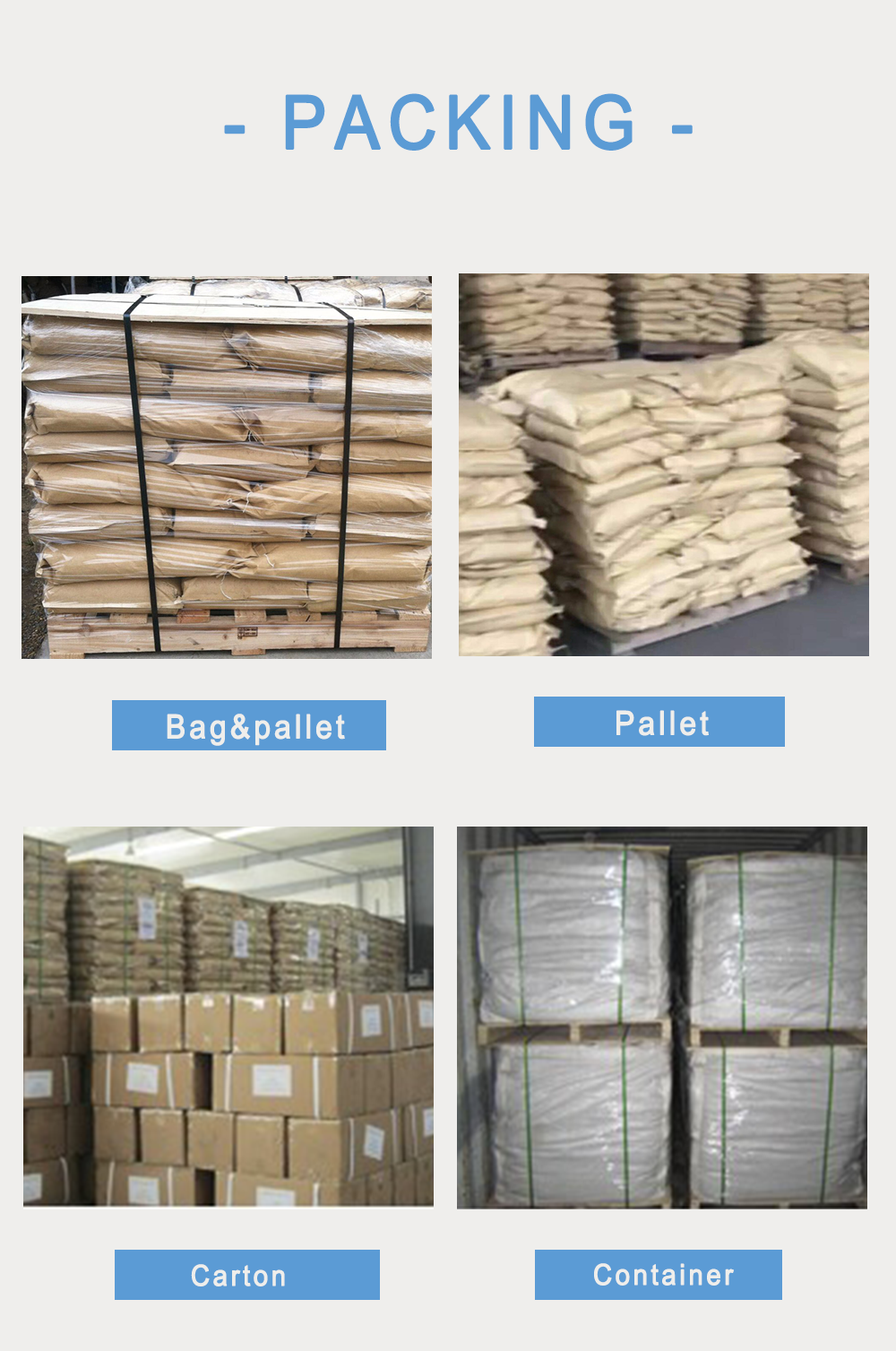

Packing
Features
A) Tensile strength is enhanced
B) Adds ductility to concrete
C) Controls cracks
D) Fatigue and impact resistance
E) Reduce material consumption and save cost
F) Less construction time required
G) Longer service time
Application
1. For Flooring
Industrial floors
Joint-less floors
Floors-on-piles
Lightly loaded floors
Liquid tight floors & composite metal decking
2. For Hard Standing & Heavy Duty
Parking lots
Playgrounds
Airport runways
Taxiways
Maintenance hangers
Access roads & workshops
Ports& Containers for port pavements
Container terminals
Bulk storage areas access roads
For army tank movement
3. Other Applications
Foundations
Traditional cellar and basement walls
Compression layers
