Anti climb spikes, also called spikes, which have galvanized and PVC coated surface are the good device for protecting people from damaging and losing properties.
Anti climb spikes can be divided into 3 types according to different structure features: wall spikes, razor channel spikes and razor spikes pipe.
Product Description
Anti climb spikes, also called spikes, which have galvanized and PVC coated surface are the good device for protecting people from damaging and losing properties.
Anti climb spikes can be divided into 3 types according to different structure features: wall spikes, razor channel spikes and razor spikes pipe.
Product Specification

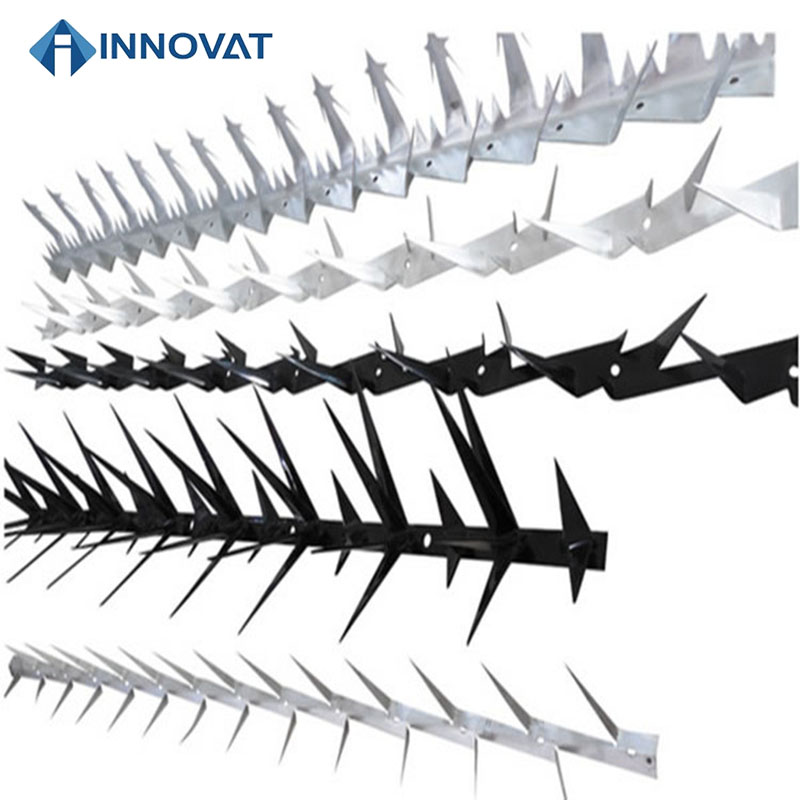

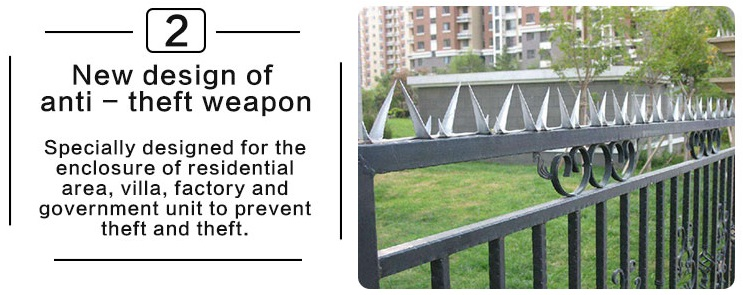

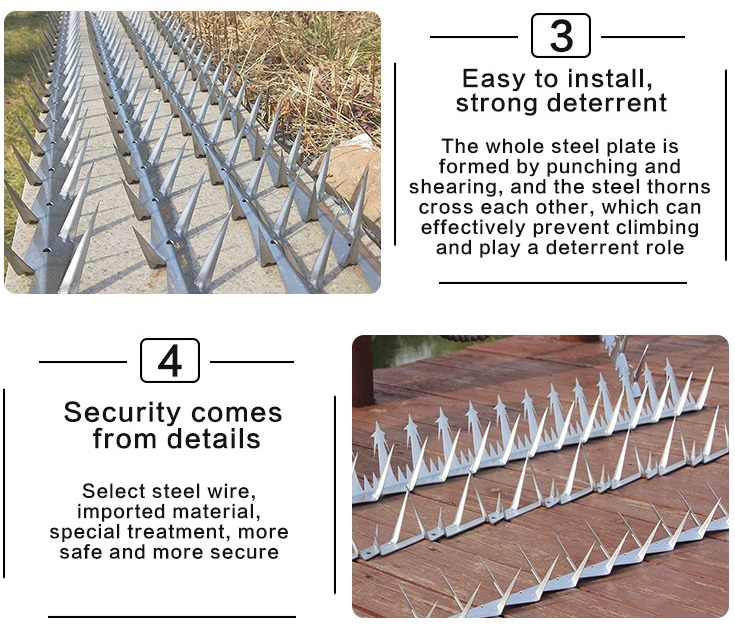

Type 1: Wall Spikes
| Material | low carbon steel plate and stainless steel plate |
| Types | large wall spikes, medium wall spikes and small wall spikes |
| Surface treatment | hot-dipped galvanized, electro galvanized and PVC coated |
| Thickness | 0.8–2 mm |
| Length of strip | 1–2.0 m |
| Hole size | 7.5 mm |
| Color | black, white, green, yellow, red, blue, brown(for PVC coating) |

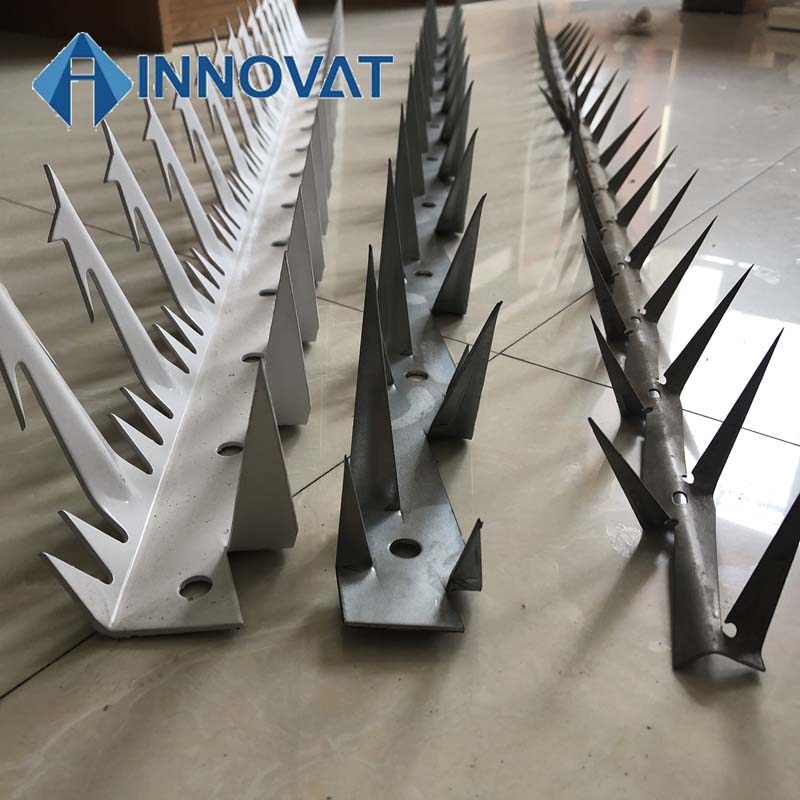

L Type M Type
S Type
| Specification of Three Types of Wall Spikes | |||||||||
| Type | Thickness | Spike Height | Spike Spacing | Bottom Space | |||||
| Large wall spikes | 2mm | 11 cm | 8 cm | 5cm | |||||
| Medium wall spikes | 2mm | 4-10cm | 13 cm | 4.5 cm | |||||
| Small wall spikes | 1mm | 6 cm | 7 cm | 3 cm | |||||

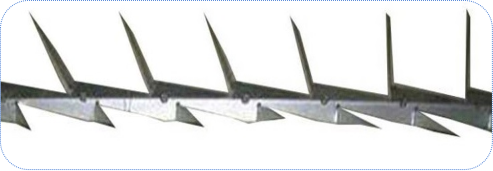

Type 2: Razor Channel Spikes
| Material | carbon steel plate and stainless steel plate |
| Types | U channel razor spikes, W channel razor spikes |
| Thickness | 2 mm |
| Surface treatment | hot-dip galvanized or PVC coated |
| Hole size | 10 mm |
| Hole spacing | 90 mm |
| Specification of Three Types of Razor Channel Spikes | |||||||||||
| Type | Spike Height (mm) | Bottom or Fixing Place Width (mm) | Length (m) | Spikes Spacing(mm) | Weight(kg) | ||||||
| U Channel Razor Spikes | Higher: 80Lower: 40–50 | 50 | 1.5 | 45 mm | 3.0 | ||||||
| W Channel Razor Spikes | Higher: 50–80Lower: 30–40 | 50 | 1.8 | 45 mm | 4.0 | ||||||

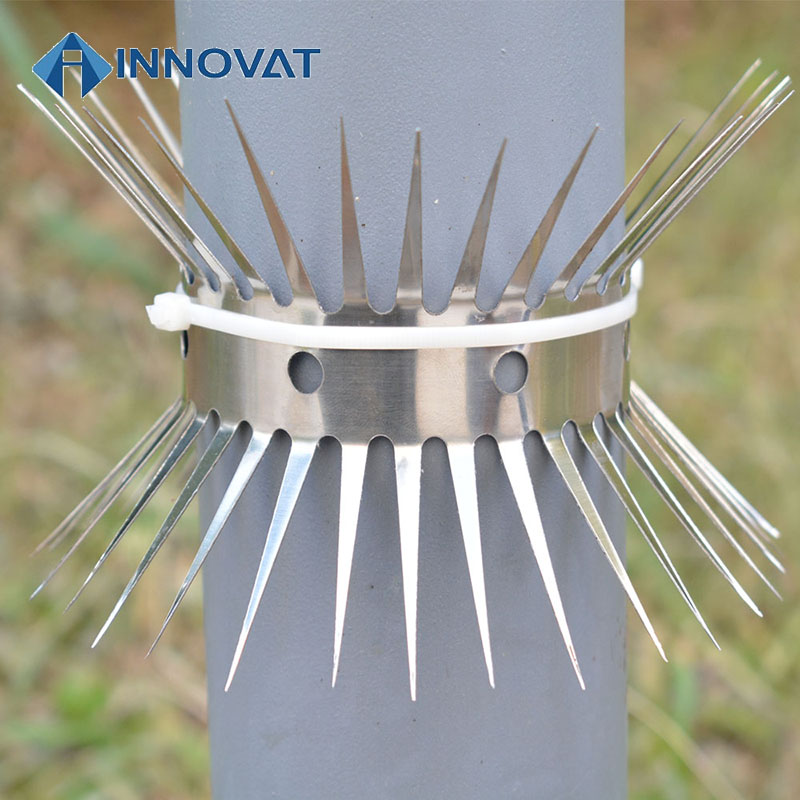

Type 3: Razor Spikes Pipe
| Material | carbon steel plate or stainless steel plate |
| Surface treatment | galvanized and PVC coated |
| Thickness | 1.3 mm (0.5 mm – 2 mm) |
| Length | 50 cm |
| Pipe diameter | 25 mm – 200 mm |
| Color | golden yellow, silver and white |
Product Accessories
* Screw bolts are usually used on the wooden fence.

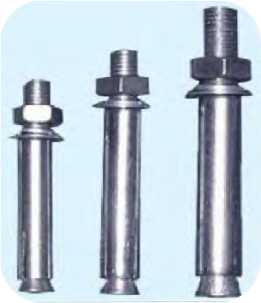

* Expansion bolts are suitable for block wall installation.
* Anti-theft bolts are typically used on plates the installations.
Expansion Bolts Screw bolts Anti-theft bolts
