Galvanized Oval Wire as high tensile strength structures,which is corrosion, rust resistance, solid, durable and extremely versatile,widely used by landscapers, craft makers, building and constructions, ribbon manufacturers, jewelers and contractors.
Product Introduction
Galvanized Oval Wire as high tensile strength structures,which is corrosion, rust resistance, solid, durable and extremely versatile,widely used by landscapers, craft makers, building and constructions, ribbon manufacturers, jewelers and contractors. It is mainly as cattle fence wire to fence cattle farms in special place such as flooded lands,seashore farms, Ellipse, Agriculture, Fencing, Horticulture, Vineyard, Handicrafts, Trellis, and Horticulture structures, etc.
Galvanized Oval Wire is divided into Standard Zinc hot dipped galvanized oval wire and Super Zinc hot dipped galvanized oval wire.
| Specification of Galvanized Oval Wire | |||||||
| Item Size | Diameter | Min Breaking Load | zinc Coating | DiameterTolerance | Coil Length | Coil weight | |
| Oval High Carbon Steel wire | 19/17 | 3.9*3.0mm | 1200KGF | Super 180-210g/m2Standard 40-60g/m2 | ±0.06mm | 600M | 36kg |
| 18/16 | 3.4*2.7mm | 900KGF | ±0.06mm | 800M | 37kg | ||
| 17/15 | 3.0*2.4mm | 800KGF | ±0.06mm | 1000M/1250M | 43kg | ||
| 17/15 | 3.0*2.4mm | 725KGF | ±0.06mm | 1000M/1250M | |||
| 16/14 | 2.7*2.2mm | 600KGF | ±0.06mm | 1000M/1250M | |||
| 15/13 | 2.4*2.0mm | 500KGF | ±0.06mm | 1500M | 45kg | ||
| 14/12 | 2.2*1.8mm | 400KGF | ±0.06mm | 1800M/1900M | 50kg | ||
| Oval Low Carton lron Wire | N°12 | 2.4*2.8mm | 500Mpa | Min.50g/m2 | ±0.06mm | 465M/580M | 25kg |
| N°6 | 4.55*5.25 | 500Mpa | Min.50g/m2 | ±0.06mm | 170M | 25kg | |
| Note: Other specifications also can be customized according to customers requirements. | |||||||

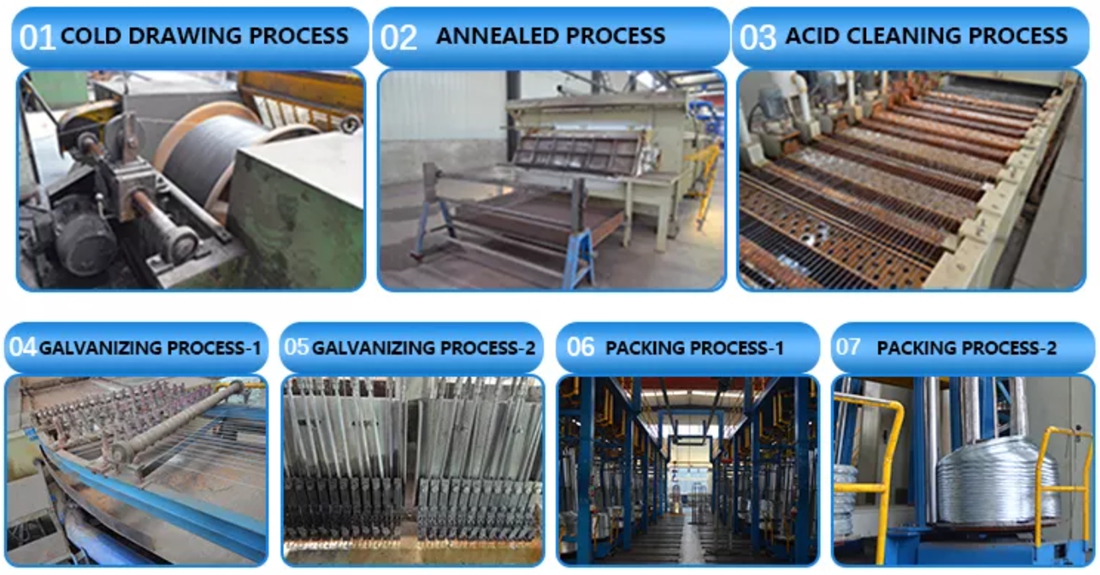

Process

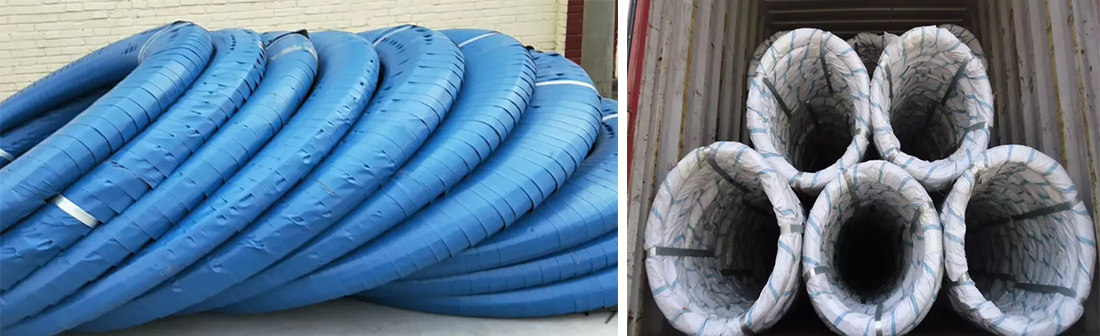

Package

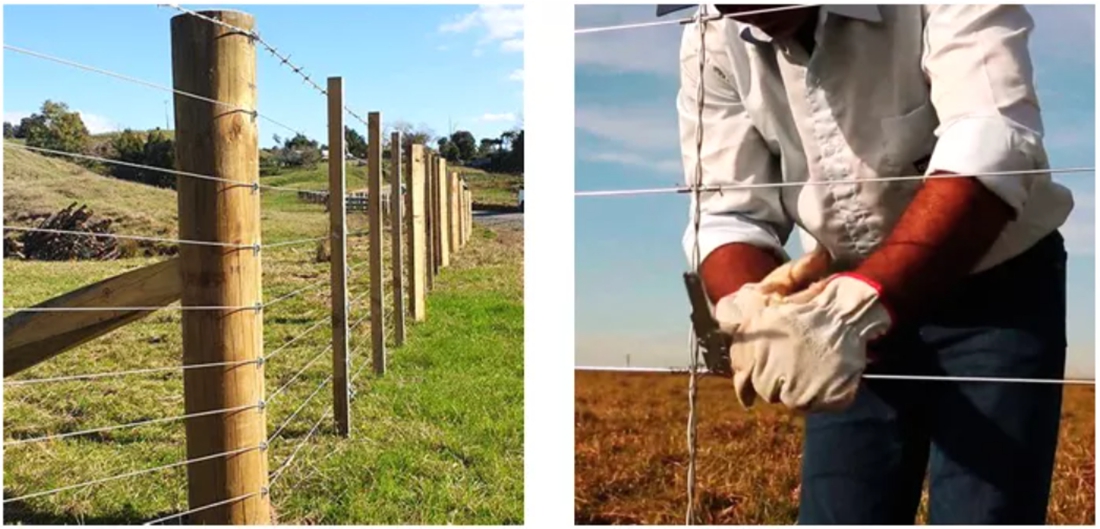

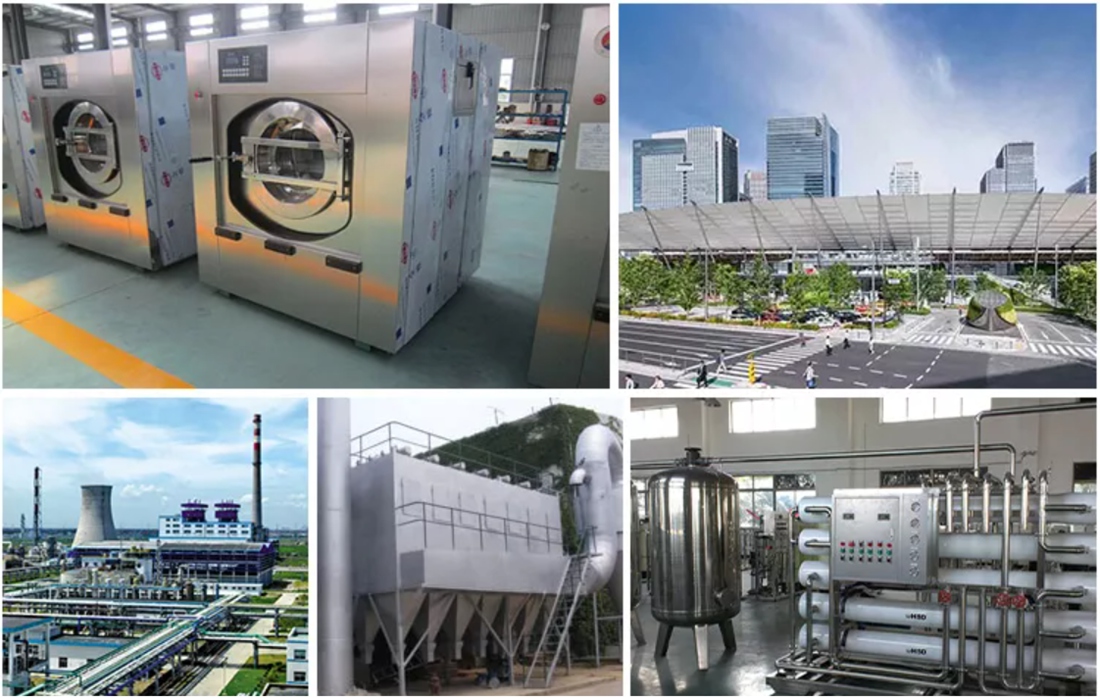

Application
Oval Wires are applied to prestressed and post-tensioning technology in various shapes of prestressed concrete structures and civil engineering construction, such as large scale railroad, highway bridges, building trusses, overhead crane beams, industrial and prefabricated concrete floor, wall board, TV tower and nuclear power station.
